GP6-6 WHEEL CAB MAKER MAINTENANCE
DIAMOND WHEEL REPLACEMENT
When worn-out, the diamond wheels and can be removed and replaced. For all models, first prepare
the arbor shaft for removal from the body of the GP6-6 Wheel Cab Maker.
1. Unscrew and remove the locking knobs and washers from the hood (Fig 20).
2. Remove stand-offs (Fig 21).
3. Rotate the two hoods back to expose the shaft (Fig 22).

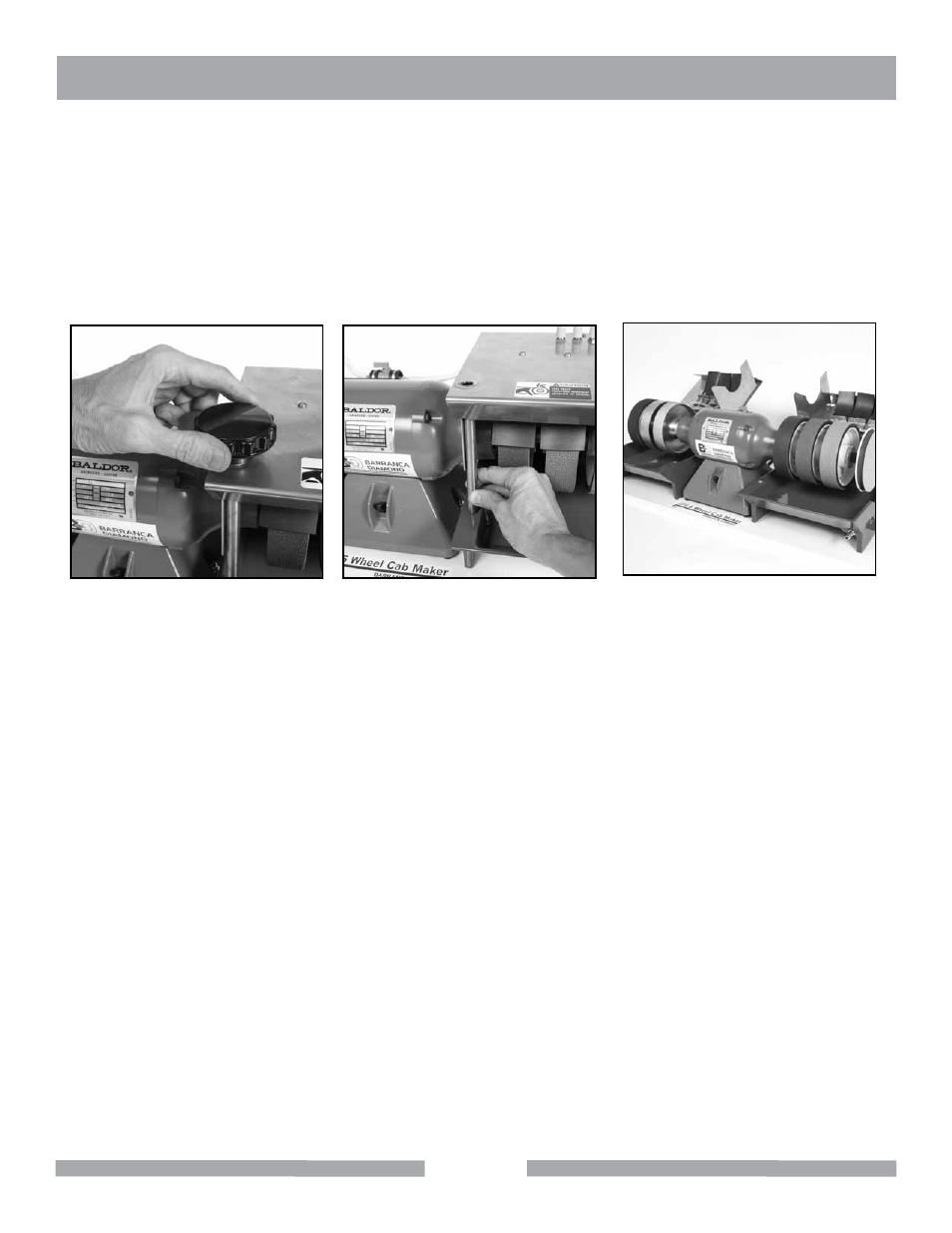

Fig 20 - Remove the locking knobs Fig 21 - Remove rod. Fig 22 - Rotate hoods back
