17
SET UP OF LOC-LINE SYSTEM ON GP6-6 Wheel Cab Maker
The Loc-Line magnetic manifold will need to have the 3/8" OD clear tubing from the submersible pump
inserted into the other end of the 1/2" OD clear tubing (Fig 15).
The magnetic base manifold should be positioned on the metal hood of the GP6-6 Wheel Cab Maker
unit at the far right end. This position will allow for the direction of water flow to the 6" resin diamond
pads during use (Fig 17). Water flow can be adjusted with orange adjustment lever (Fig 18).

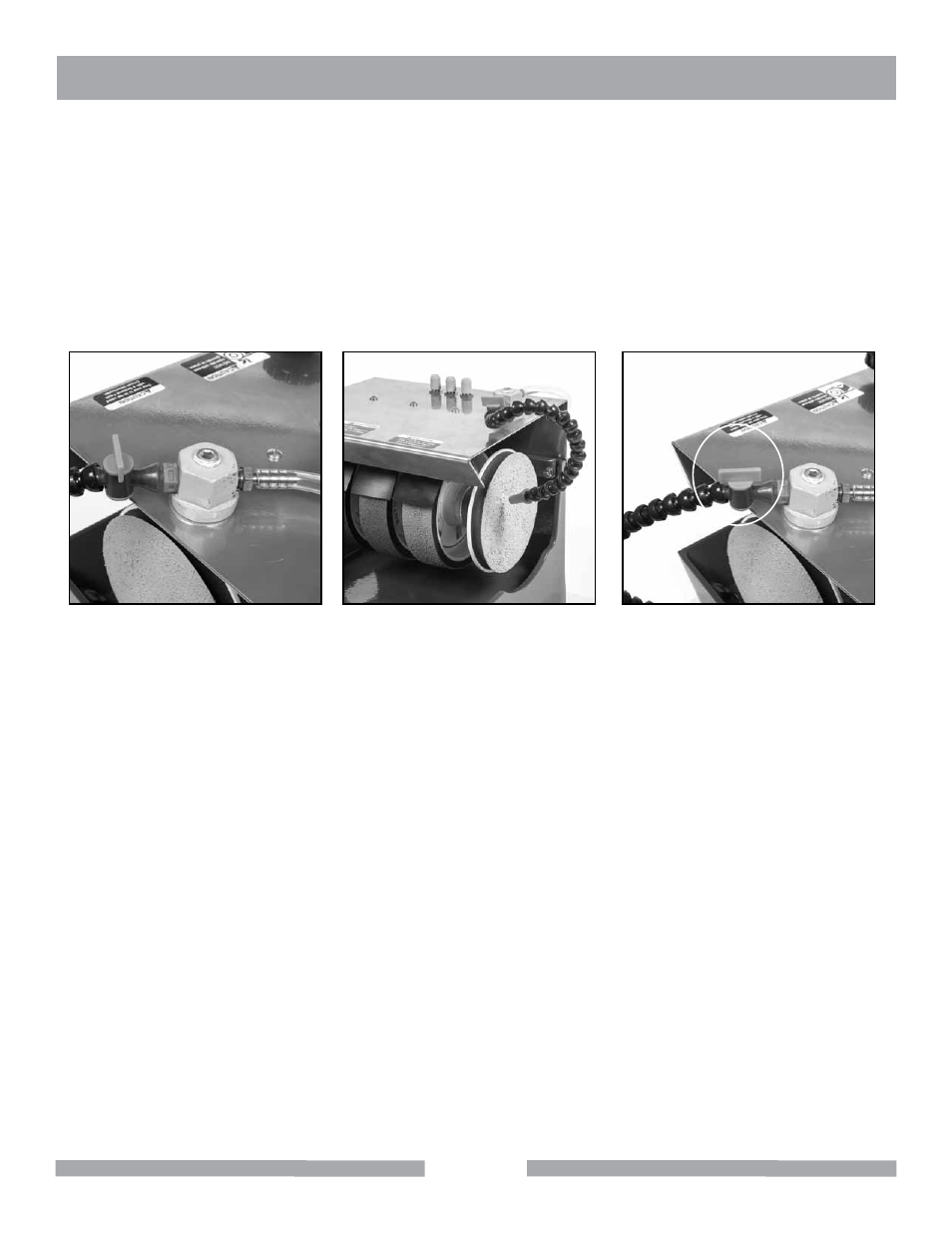

Fig 16 - Attach water tube to manifold Fig 17 - Position water nozzle on pad Fig 18 - Water flow adjustment valve
GP6-6 WHEEL CAB MAKER OPERATION AND ADJUSTMENT
