21
13

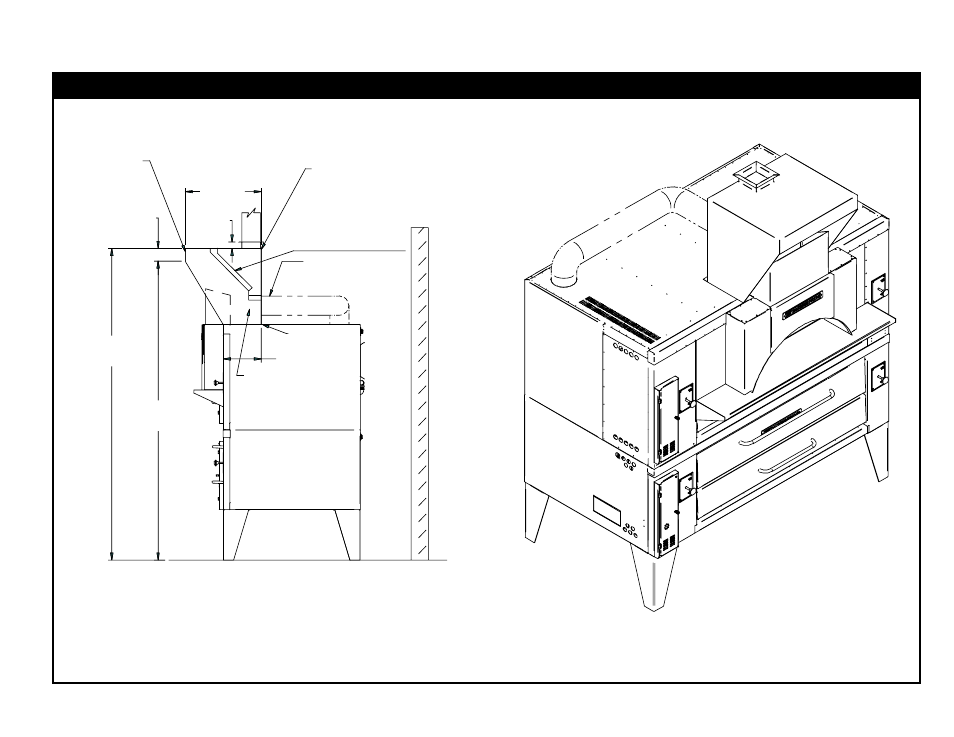

AIR SUPPLY & VENTILATION (MODEL PB-24S EYE-BROW HOOD)
No. 7 Mirror Finish
4 (102mm)
24 (608mm)
2 (51mm)
98 1/4 (2495mm)
Top of Ventilator
94 1/4 (2393mm)
A.F.F.
Removable Grease Cup
12 (304mm)
6” Flue Connection
Flue Duct
By E.C. or other
prescribed contractor
NOTE: Consult NFPA standard number 96 and local codes concerning ventilation
requirements and fire extinguishing system requirements.
Stainless Steel Finish Back
No. 4 Finish
(1) Component Hardware
Firefighter Series
Baffle type Grease Filter
16”H x 20”W
Model #F60-1620
UL Classified
1 ½”x 1 ½”S/S
Mounting Angle
