AIR SUPPLY & VENTILATION 10
Models Enclosure Openings (Top) Enclosure Openings (Bottom)
FC-516/FC-616/FC-816 140 SQ.IN(903 SQ.cm)
FD-516/FY-616/FY-816 260 SQ. IN(1675 SQ.cm) 1,187 SQ. IN (7,660 SQ.cm)
640SQ. IN (4,130 SQ.cm)
* OPENINGS
IL FORNO CLASSICO
12” Max.
12” Max.
Sq in = Input
219 Sq in = Input
1,000
Input
105
CFM=

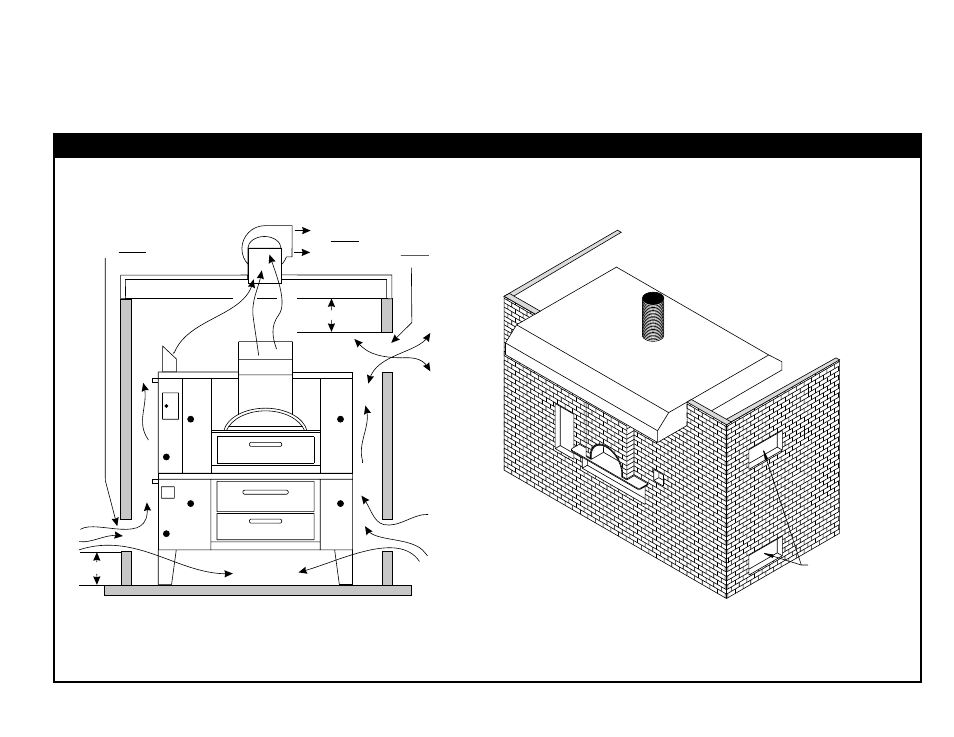

* TYPICAL OPENINGS SHOWN FOR A COMPLETELY
OPENINGS OF OTHER SHAPES MAY BE PROVIDED AT ANY OTHER SUITABLE
LOCATION TO SERVE THE SAME PURPOSE.
ENCLOSED INSTALLATION.
NOTE: Refer to instructions on previous page.
When building a 4-walled facade, or room around the oven(s), provisions must be made in the facade/enclosure for the free and uninterupted air movement to the interior
of enclosed installations from the room outside the enclosure.
