Quick Start Guide Version 1.3
GW51C-MAXI Serial Server
3
4.2.5. Configure by console mode
1.
Set MODE switch SW1 to ‘OFF’ and SW2 to ‘ON’, then Power off GW51C-MAXI Serial Server
2.
Use a PC to connect to GW51C-MAXI Serial Server’s console with RS-232 cross over cable
3.
Power on Serial Server, then Open terminal program from your computer and Set to 9600, 8, n, 1 without
flow control for console port communication.
4.
The following configuration operations are totally the same as those configure by telnet.
5.
After finishing console settings, power off GW51C-MAXI Serial Server, put SW1 and SW2 back to previous
setting.
5. Pin
Assignments

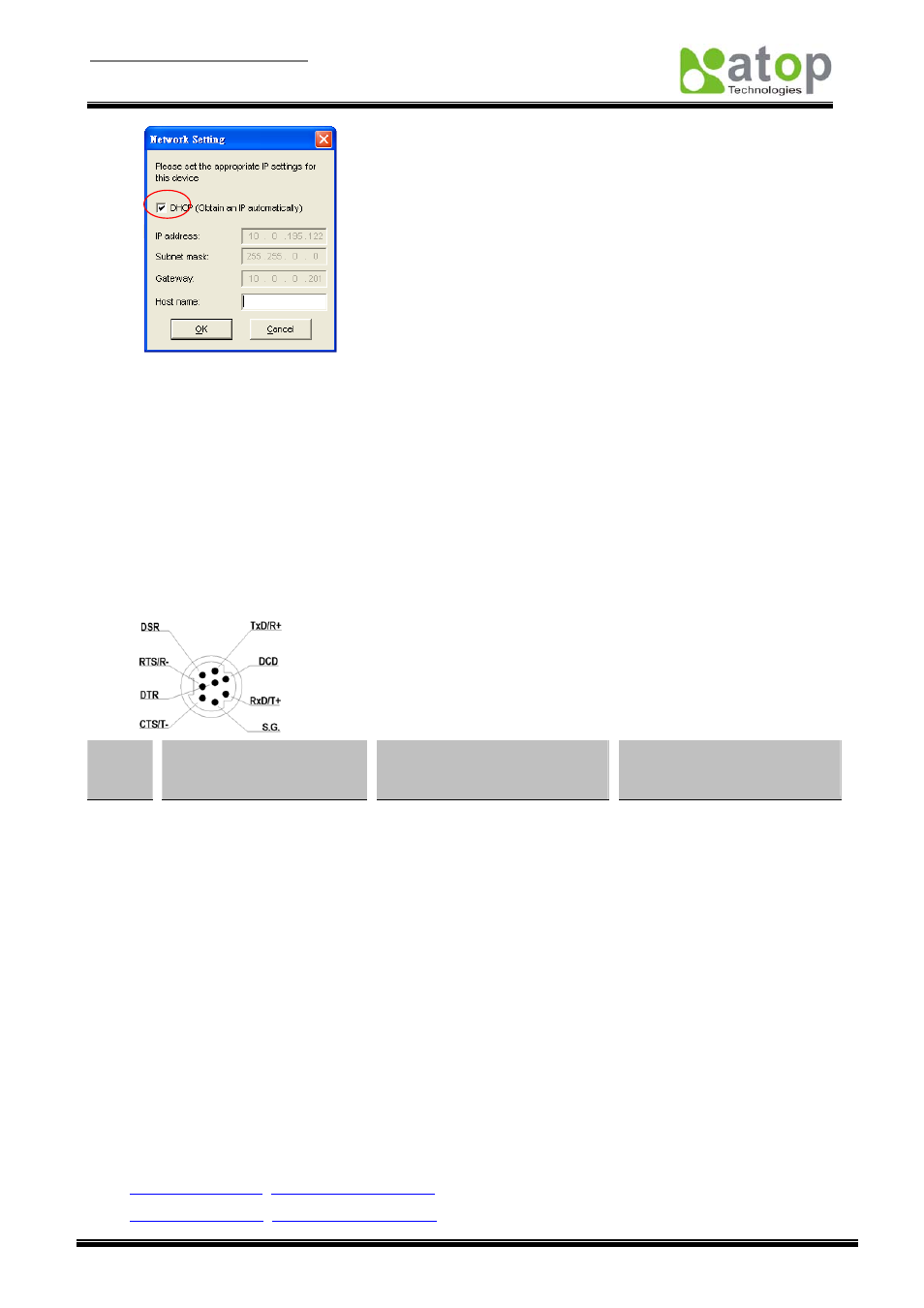

5.1. 8 pin Mini DIN connector
-
Atop provides Mini DIN connector to DB9 connector cable, the pin
assignments is shown in the following table and RS-485 2 or 4 pins assignments of DB9 connector are different
from those of Mini DIN connector.
Pin#
RS-232
Full Duplex
RS-485
2 wire, Half Duplex
RS-422/RS-485 4 wire,
Full Duplex
1
DCD
N/A
N/A
2
RXD
N/A
(reserved)
TXD+
3
TXD
DATA+
RXD+
4
DTR
N/A
N/A
5
SG (Signal Ground)
SG (Signal Ground)
SG (Signal Ground)
6
DSR
N/A
N/A
7
RTS
DATA-
RXD-
8
CTS
N/A
(reserved)
TXD-
9
N/A
N/A
N/A
6.
Customer Services and Supports
Contact your local dealers or ATOP Technical Support Center at the following numbers.
+886-3-550-8137 (ATOP
Taiwan)
+86-21-6495-6232
(ATOP China)
Report the errors via Atop’s Web site or E-mail account
