4.6 Waist Belt
Removal:
1. Remove the Waist Belt from the clip.
2. Unthread the Waist Belt Strap from the Blower.
Installation:

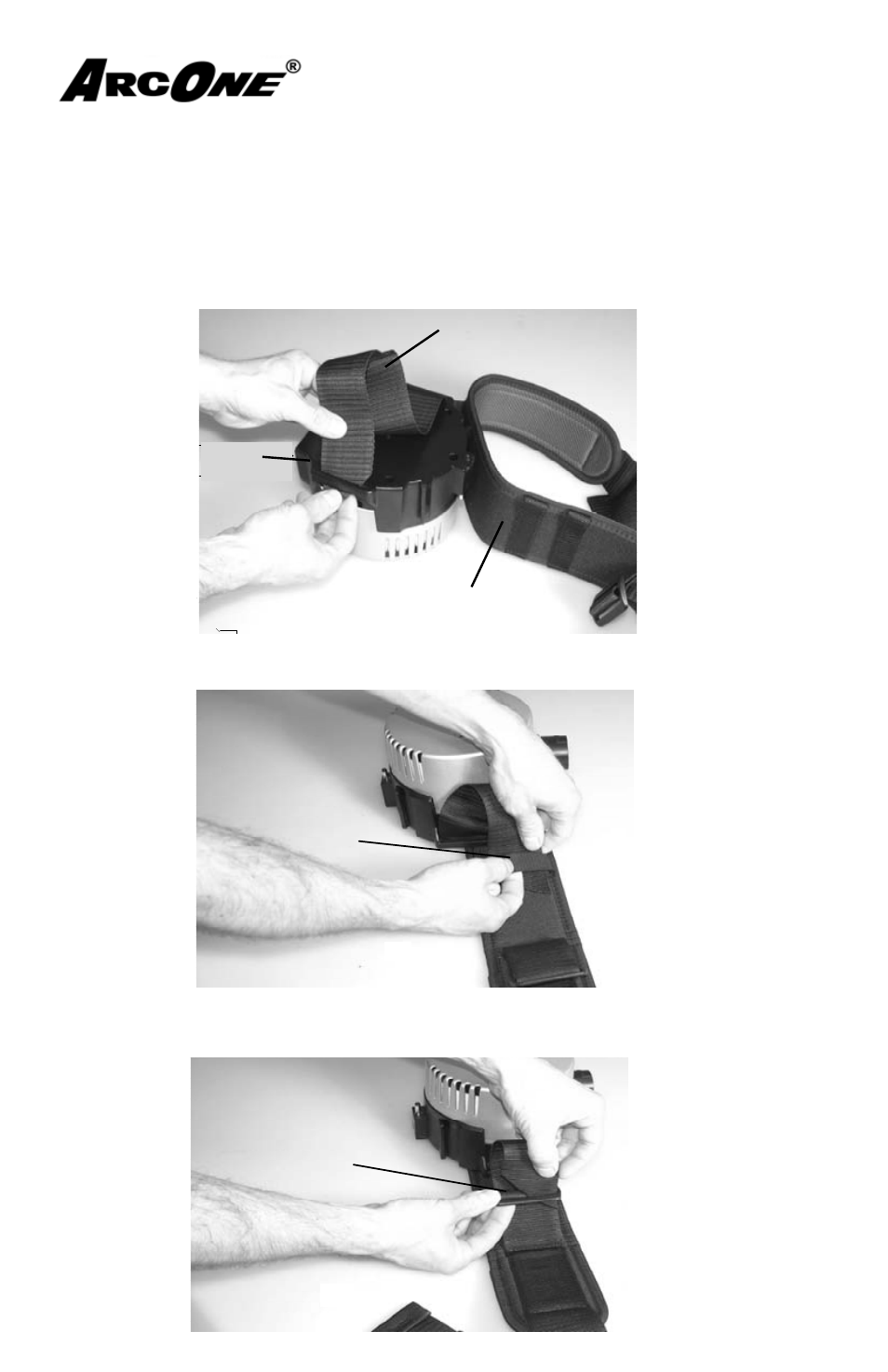

1. Thread the Waist Belt Strap through the side slots on the Blower. (fi g. 27)
2. Thread the Waist Belt Strap through the second Hoop (fi g. 28)
3. Thread the Waist Belt Strap through the Clip and pull tight to secure the Blower
to the Waist Belt. (fi g. 29)
#3
Clip
#2
Hoop
#1
Blower
Waist Belt Strap
Waist Belt
Figure 27
Figure 28
Figure 29
Waste Belt Strap
Blower
Waste Belt
Hoop
Clip
