Page 24: Ratchet faceseal airduct

4. Pull the Faceseal off the Hard Hat.
Installation: (Procedure is same for reverse bill hard hat assembly with exception
of faceseal visor orienated on the opposite side of the bill on the hard hat (fi g.
25).
1. Pull the Visor Faceseal over the Hard Hat with the Visor pulled over the Brim
(fi g. 22).
2. Pull the Faceseal over the Airduct and headgear Ratchet (fi g. 23)
3. Attach the Tabs to the Headgear (fi g. 24)
Tabs
#5
Headgear
Tabs
Headgear
Hard
Hat
#3
Faceseal
Hard
Hat
Faceseal

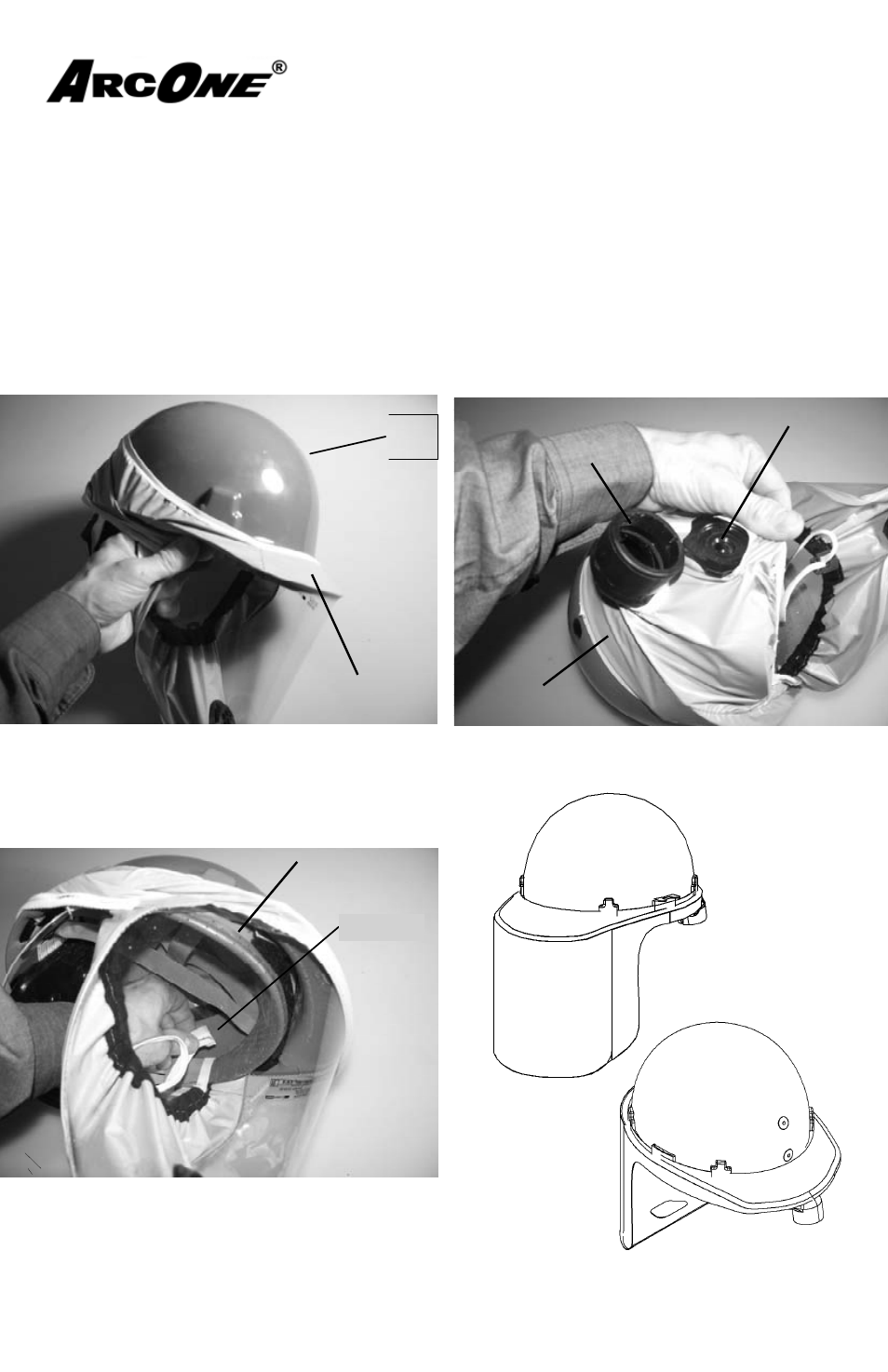

Figure 22
Figure 24
Figure 23
Ratchet
Faceseal
Airduct
Figure 25
Reverse
Bill
Forward
Bill
