Specifications — LPU-2127
Operating Range ............................ 1 ft. to 25 ft. (0.3 m - 7.62 m)
Supply Voltage ............................... 12 to 28 VDC
Output ............................................. 4-20 mA (Max 600 ohms @ 24 VDC)
4-20 mA (Max 150 ohms @ 12 VDC)
(Includes barrier resistance)
Resolution ...................................... 0.1 in. (2.54 mm)
Accuracy ......................................... +/- 0.25% of range with no temp gradient
Sensor Adjustments ........................ Programmable modes
Maximum Current Draw ................ 22 mA max
Transducer Type ............................. Flat ceramic sealed PVDF face
Operating Temperature ................... -40 to 60°C
Internal Temp. Compensation ....... Yes
Sample Rate ................................... 3 seconds at 4ma - 0.6seconds at 20 ma
Beam Pattern .................................. 9° off axis
Enclosure ........................................ NEMA 4X , IP65
Cable Connection .......................... 2 terminals

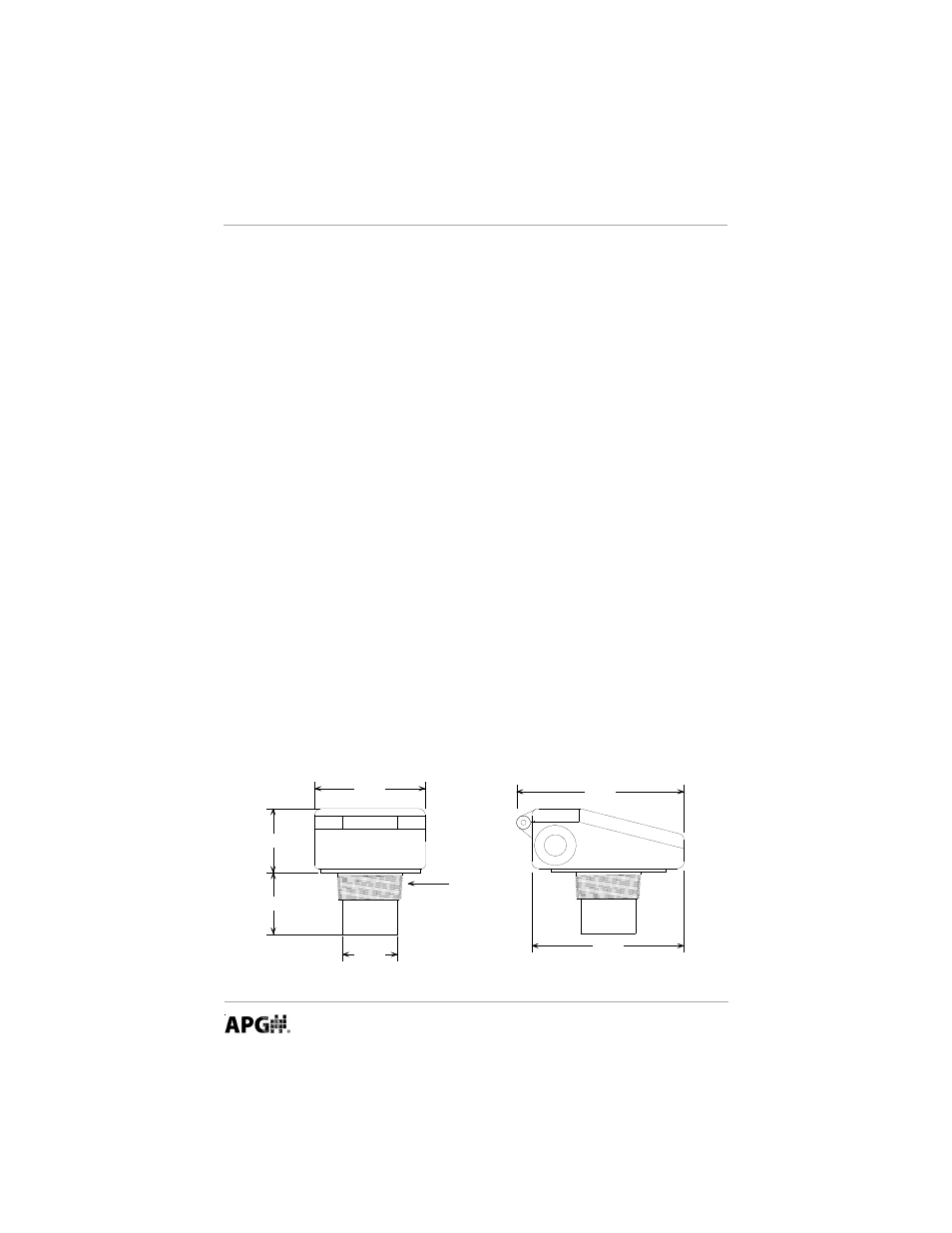

Dimensions
5.500"
6.050"
2.000"
4.000"
2.400"
2.300"
2" NPT
