Operation
MODE DESCRIPTION PARAMETERS
1 Units Range = 0-2
Default = 0
0 = feet
1 = inches
2 = mm
Mode 1 is used to select the units of measurement that will be used
throughout the setup process and also for display. The units will also
determine the resolution of the display and the outputs. The resolution is: feet
0.01, inches 0.1 and millimeters 1.
NOTE: All modes must be set using the units selected in Mode 1.
MODE DESCRIPTION PARAMETERS
2 4 mA distance Units = Mode 1
Range = 0-9999
Default = 1.00 ft.
Mode 2 sets the 4 mA distance.
MODE DESCRIPTION PARAMETERS
3 20 mA distance Units = Mode 1
Range = 0-9999
Default = 25.00 ft.
Mode 3 sets the 20 mA distance.

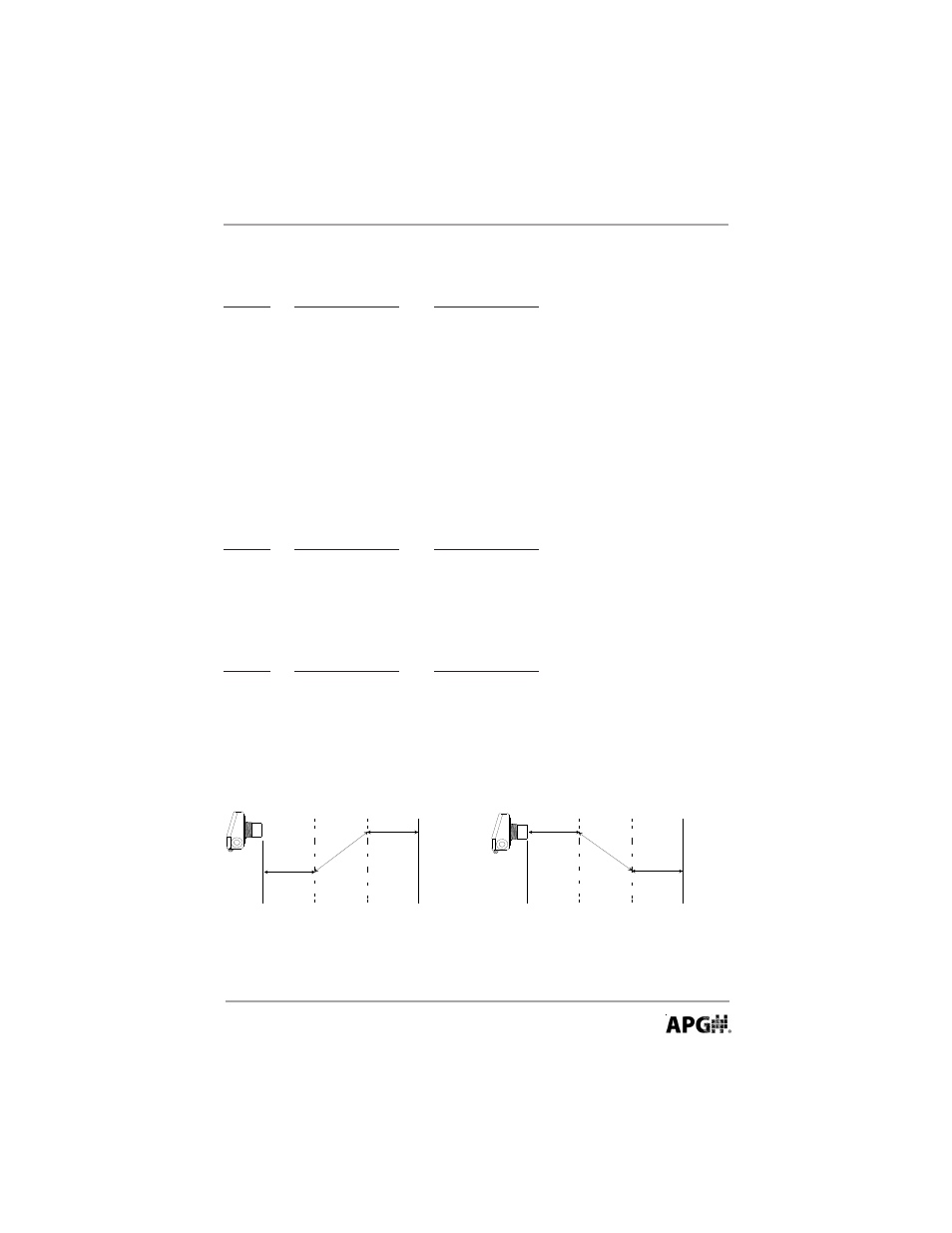

Zero Point Max. Distance Zero Point Max. Distance mode 11 mode 12 mode 11 mode 12
20 ma
4 ma
4 ma
20 ma
