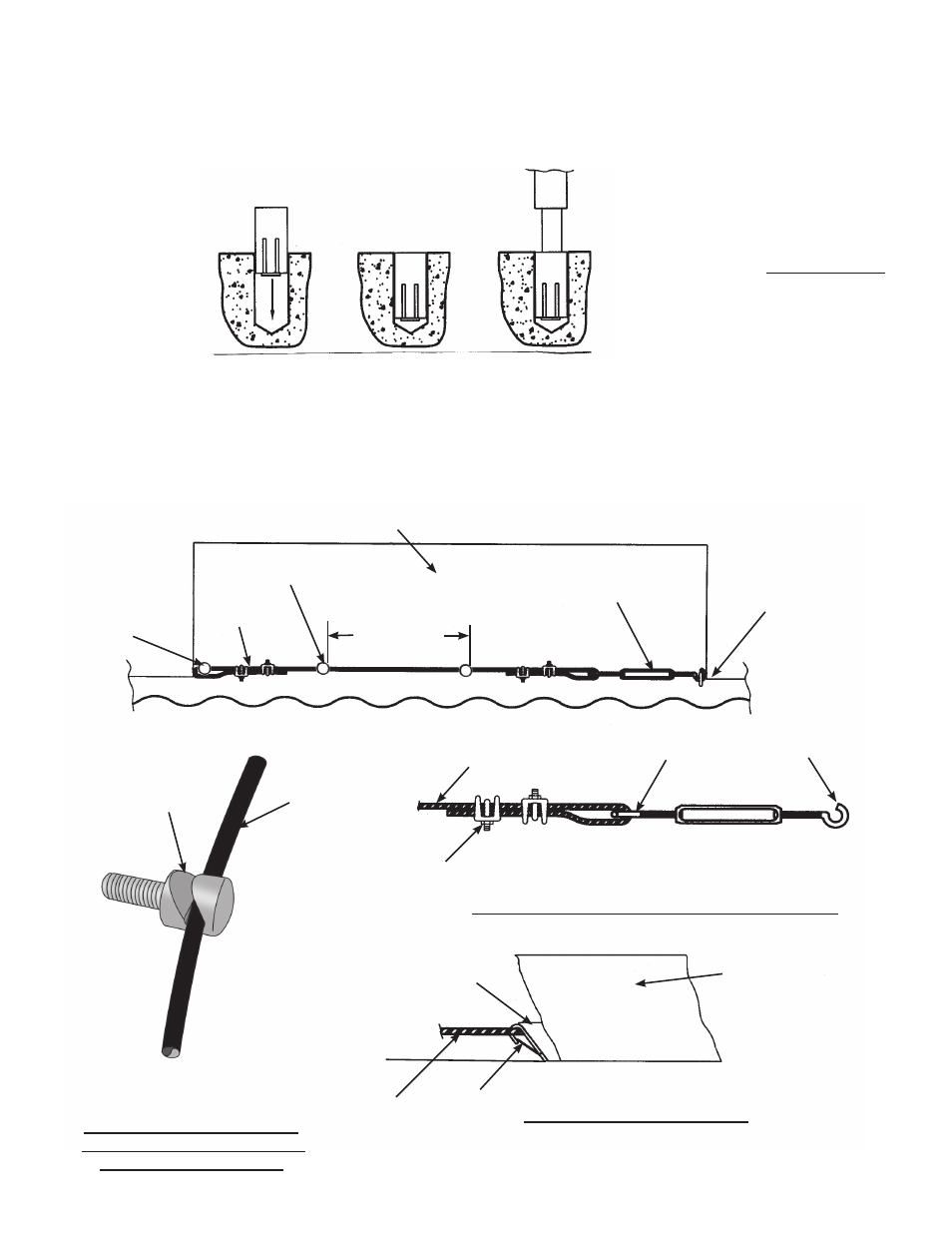

Drilling/Setting of 3/8” Drop-in Anchors
EMBEDMENT
3/8” Drop-in
Drill Diameter - 1/2”
Minimum Depth - 1 7/8”
1) Drill a hole into base material to the depth of embedment (see information above) required. Do
not over drill hole. Blow the hole clean of dust and other material. Insert the drop-in anchor into
the hole and tap flush with surface. Using setting tool, set drop-in anchor by driving the tool into
the drop-in anchor until the shoulder of the tool is seated against the drop-in anchor.
FIG. 5A
RAISED WALL
CABLE
CLAMPS
CABLE
CLAMPS
EYEBOLT
END
HOOK
END
CABLE
CABLE
CABLE
COVER
SNAP
WEATHER FLAP
CABLE
ANCHOR BOLT
RUNNING CABLE THROUGH
IN-LINE HOLES ON SLOTTED
CABLE ANCHOR BOLTS
ATTACH CABLE TO EYEBOLT ON TURNBUCKLE
ATTACHING SNAP TO CABLE
TURNBUCKLE
TURNBUCKLE
EXTENDED
APPROX. 18”
EYEBOLT
FIG. 5B
FIG. 5D
FIG. 5C
CABLE
ANCHOR
BOLT
SLOTTED
CABLE
ANCHOR BOLT
15
OPTIONAL CABLE ASSEMBLY INSTALLATION - cont’d
