Pole cap (optional), 3 lacing instructions – Anchor CENTURY 50 WIDE User Manual
Page 8

8

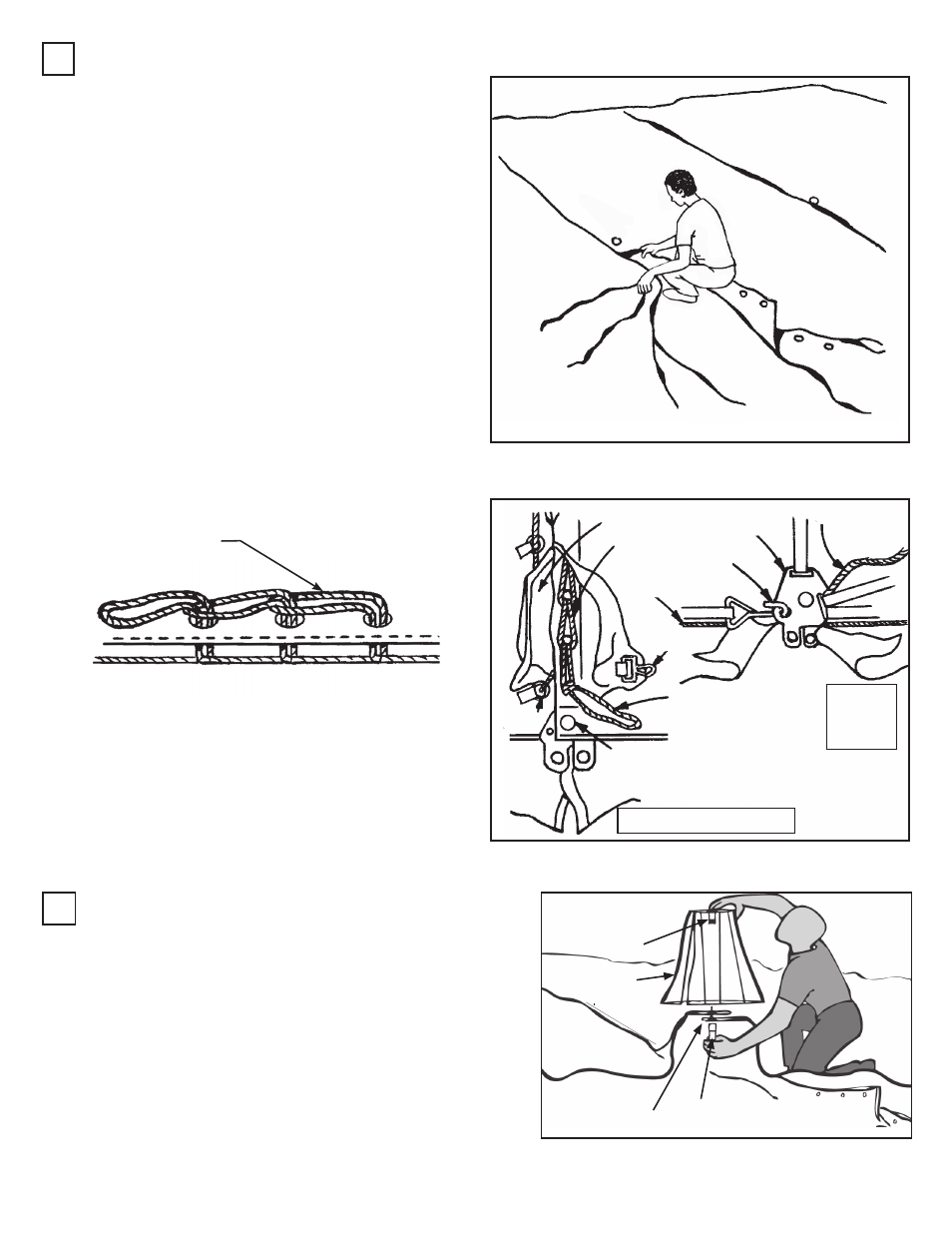

POLE CAP (Optional)
Overlap the pole hole plates in the mid and end
fabric lace line. Push fabric and plates up into
cap and secure from underneath by threading the
female, flanged pipe coupling onto the male pipe
fitting molded to the inside top of the pole cap.
4
POLE CAP
MOLDED CAP W/
MALE THREADED
PIPE FITTING
MID
FABRIC
END
FABRIC
FEMALE PIPE
COUPLING (FLANGED)
POLE PLATES
(OVERLAPPED)
LACE LINE
3 LACING
INSTRUCTIONS
With tent sections on ground, overlap cen-
ter pole holes with grommet side on top.
Lace between center pole holes first. Push
first loop up through corresponding grom-
met. Continue, passing each loop through
a grommet and the preceding loop.
Continue lacing process and cover lacing
with protective rain flaps by velcroing the
short flap first, then snapping the top flap to
the rope as you move toward other center
pole hole.
Tie off last long loop.
Then lace from center pole to eave on
both sides of tent. Tie off last long loop.
Align plates and attach hook to plates on
inside of tent, as shown.
MIDDLE
END
CENTER POLE
HOLE
END
FLAP
LACE ROPE
HOOK
PLATE
JUMP ROPE
WALL ROPE
SNAP
LAST
LACING
LOOP
POLE HOLE
RING
VIEW FROM OUTSIDE
VIEW
FROM
INSIDE
LACE LOOP
