Anchor CENTURY 50 WIDE - Manual (Page 7)

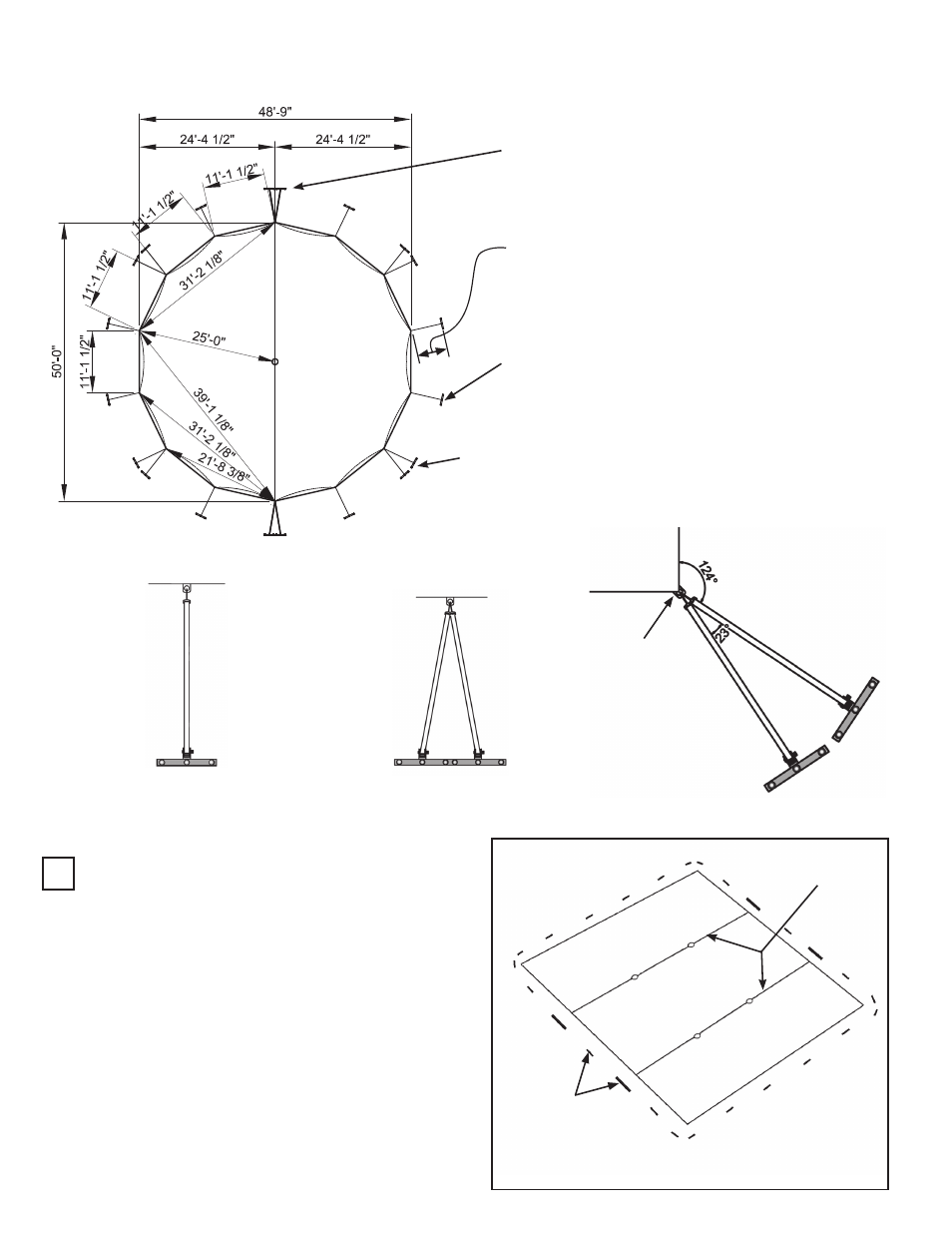

Single Center Pole, Round End Layout
MARK LOCATION OF STAKES, SIDE POLES & CENTER POLES
STAKING GUIDELINES
(2) WEB GUYS WITH
4’ STAKE BAR AND (6) 42”
DBL. HEAD STAKE (TYP. AS
SHOWN)
WEB GUY WITH 2’ STAKE
BAR AND (3) 42” STAKES (TYP.
AS SHOWN)
(2) WEB GUYS WITH (2)
2’ STAKE BARS AND (6) 42”
STAKES (TYP. AS SHOWN)
REQUIRED DISTANCE BETWEEN
SIDE POLES AND STAKE LINES:
7’ POLE STAKE OUT 5’-3”
8’ POLE STAKE OUT 6’-0”
10’ POLE STAKE OUT 7’-6”
See Staking Table for Single Pole
on page 5 for Round End Staking
Quantities.
(2) WEB GUYS WITH 4’
STAKE BAR AND (6) 42” DOUBLE
HEAD STAKES
(1) WEB GUY WITH 2’ STAKE
BAR AND (3) 42” DOUBLE HEAD
STAKES
(2) WEB GUYS WITH (2) 2’ STAKE BARS
AND (6) 42” DOUBLE HEAD STAKES
CORNER WEB
GUYS
TENT
CORNER
2 LAYOUT AT SITE
Drive stakes at points located. Each 2’
stake bar requires 3 stakes. A 4’ stake
bar requires 6 stakes.
Spread drop cloths and unroll tent.
Any objects with sharp projections which
must remain on site under the tent should
be padded and taped.
NOTE: Both Loop side and hole side of
sections are required for proper lace.
LACE
END
MIDDLE
END
SEE WEB GUY LAYOUTS FOR
STAKING CONFIGURATIONS.
STAKE BARS
7
