Anchor CENTURY 50 WIDE - Manual (Page 6)

6

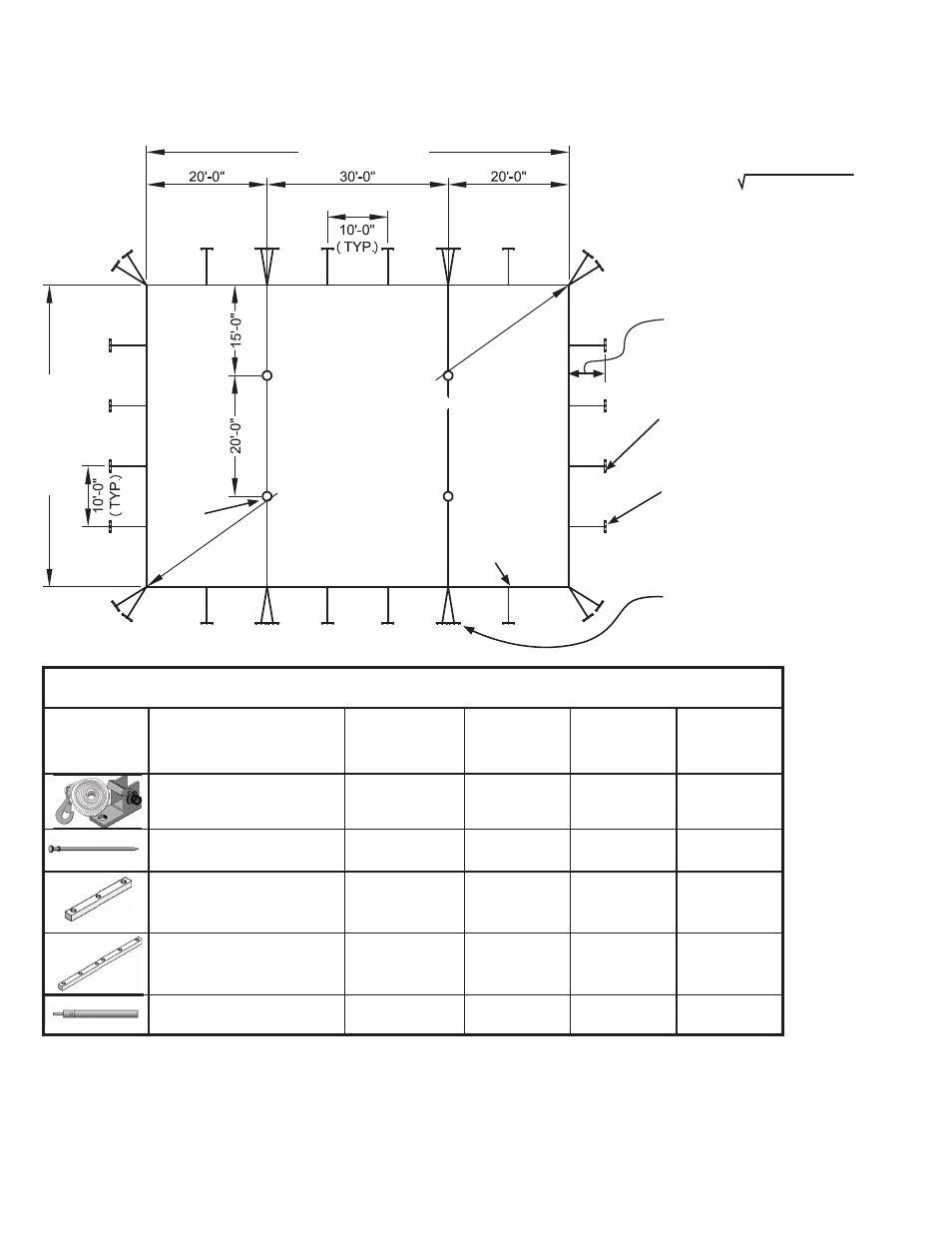

Double Center Pole Tent - Sample Layout
MARK LOCATION OF STAKES, SIDE POLES & CENTER POLES
** To find diagonal measurement:
diagonal = width² + length²
CENTER
POLE
(TYP)
LOOP SIDE
END
SECTION
SIDE POLE
(TYP)
MIDDLE
SECTION
HOLE SIDE
END
SECTION
(2) WEB GUYS WITH
4’ STAKE BAR AND (6) 42”
DBL. HEAD STAKE (TYP. AS
SHOWN)
WEB GUY WITH 2’ STAKE
BAR AND (3) 42” STAKES (TYP.
AS SHOWN)
(2) WEB GUYS WITH (2)
2’ STAKE BARS AND (6) 42”
STAKES (TYP. AS SHOWN)
LAYOUT SHOWS 20’ ENDS AND 30’ MID.
20’ MIDS USE IDENTICAL SPACING AND
STAKING. SEE TABLE BELOW.
REQUIRED DISTANCE BETWEEN
SIDE POLES AND STAKE LINES:
7’ POLE STAKE OUT 5’-3”
8’ POLE STAKE OUT 6’-0”
10’ POLE STAKE OUT 7’-6”
* IMPORTANT NOTE: REFER TO CAUTION STATEMENT #2 FOR IMPORTANT WARNING ABOUT NUMBER OF
STAKES SUPPLIED. (SEE BACK PAGE OF THIS MANUAL)
THE INSTALLER MUST USE THE LOCAL SOIL CONDITIONS TO CALCULATE THE ACTUAL
NUMBER OF STAKES REQUIRED AND IS RESPONSIBLE FOR THE STAKING PATTERN AND
CONFIGURATION.
ANCHOR PROVIDES ANCHORING PACKAGES FOR COMMON SOIL CLASSIFICATIONS;
CONTACT YOUR TENT SALES REPRESENTATIVE FOR MORE INFORMATION.
** 86’-0 1/4”
USE DIAGONAL DIMENSION TO SQUARE LAYOUT
50’-0” TENT LINE
70’-0’ TENT LINE
Staking Table For Double Pole
Illustration Item No. Description
Qty. for
50’ x 40’
(2) 20’ Ends
Qty. for
20’ Mid Qty. for
30’ Mid
23000
Century Guy w/
Winch
24 6 8
37020A
3704242 (over 25)
42” Double Hd.
Stake
72* 18* 24*
33000
2’-0” Stake Bar
w/ (3) Holes
20 2 4
33100
4’-0” Stake Bar
w/ (6) Holes
2 2 2
23100 Winch Tool 2 0 0
SEE STAKING GUIDELINES
ON PAGE 7.
