LACING

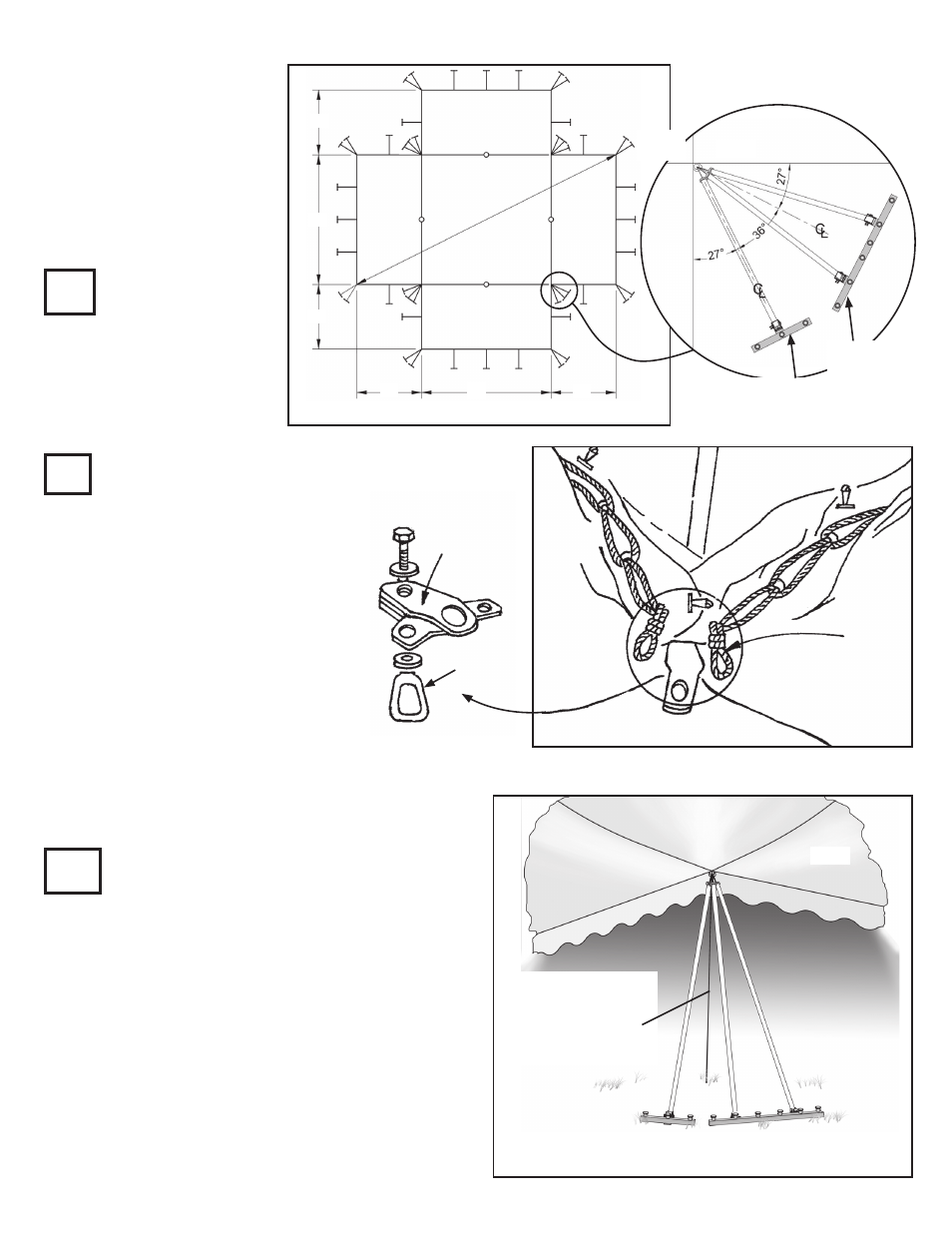

In addition to step #3, align plates
and attach bolt, washers and eye nut.
Hook is not used at this location.
Use (4) web guys (center plate and eye
nut) to tie off at this location.
WINCH FOR
TENSION
Use winches at center section lace where proper
tension is needed for correct tie down and wrin-
kle free structure.
Auger cable straight down into ground.
USE CAUTION WHEN OPERATING
WINCH.
MEASURE
LAYOUT
Mark location of stake line,
tent line and center poles.
(See page 3)
1a
SUPPLEMENTAL
INSTRUCTIONS
FOR TENTS
WITH CENTER
SECTIONS
USE WITH STEPS 1 THRU 8
LAST
LACING
LOOP
TIED
CENTER
END
END
40’ END
LOOP SIDE
40’ CENTER
40’ END
HOLE SIDE
40’
END
HOLE
SIDE
40’
END
LOOP
SIDE
3a
8a
CENTER
PLATE
EYE NUT
USE DIAGONAL
MEASUREMENT
TO
SQUARE LA
YOUT
40’
40’
20’ 20’
20’
20’
END
END
40 x 60
Center
CENTER
END END
CABLE FASTENED
TO EYENUT
UNDER TENT AND
AUGERED INTO
GROUND.
Stakes with bars shown only for illustrative purposes.
See Step 1a for correct staking layout.
8
4’-0” STAKE
BAR
2’-0” STAKE
BAR
