HOW TO USE THE

SMALL GUY WEB, SINGLE WINCH

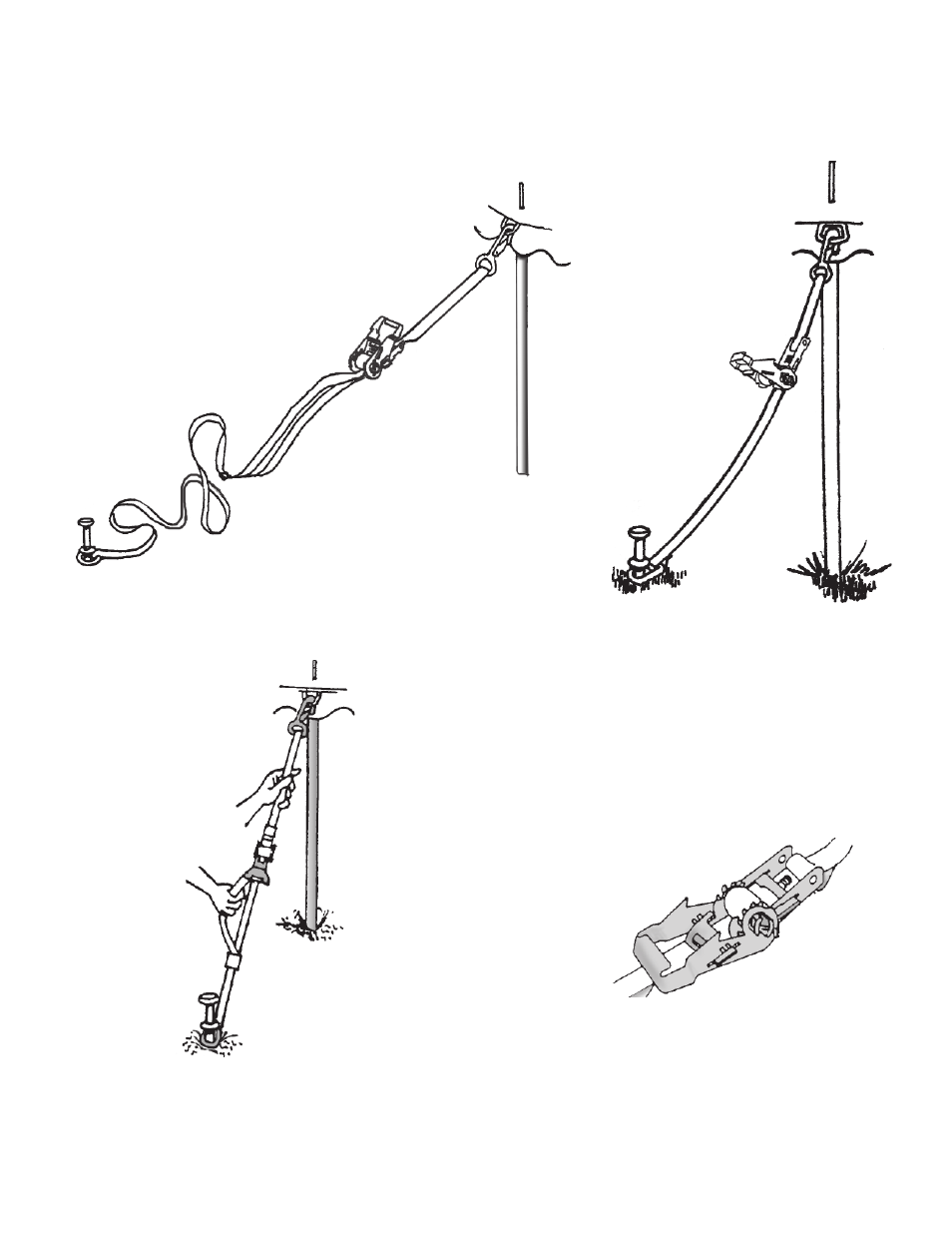

1. Insert stake into ring end of web. On oppo-
site end, snap onto plate at tent. Leave slack
in web for placing poles in position.

3. When pole is in correct position, release latch
and hand pull all slack from web. Then tighten
web with winch.
SEE NOTE #1

4. When winch is fully opened (handle against web) web can
be loosened or tightened as required. To tighten lift latch and
move winch handle forward. This motion causes web to wrap
around drum. SEE WARNING

2. Raise poles as directed in
product assembly instructions
leaving slack in web.

NOTE #1: Do not overfill winch drum. Overfilling winch
drum will interfere with release mechanism.

WARNING:

1. Use for tensioning tent products only.
2. Do not use if worn web or broken threads.
3. Do not over tension.
4. Follow assembly instructions for safe use.

Anchor products are of superior design and operate best within the parameters of these instructions. It is
IMPERATIVE that the instructions be carefully read and COMPLETELY FOLLOWED.
