1. Place a washer on the caliper bolt.

2. Place spacer(s), as required, onto the caliper bolt.

3. Insert the caliper bolt with spacers and washer

into the upper lathe mounting bracket.

4. Place a spacer, if required, on the caliper bolt

between the lathe mounting bracket and caliper
bracket to adjust the placement of the lathe on the
rotor.

5. Lift the lathe and align the caliper bolt with the

upper hole in the caliper mounting bracket. Insert the
caliper bolt into the upper mounting bracket.

6. Finger tighten the caliper bolt into the caliper

mounting bracket. Let the lathe hand down.

7. Make sure the caliper bolt does not interfere with

the rotor. If necessary, remove the caliper bolt and add
spacers.

8. Adjust the lathe mounting brackets until the

lower lathe mounting bracket aligns with the lower
hole in the caliper mounting bracket, fig. 6.

9. Repeat steps 1 through 7 to install the lower

caliper bolt.

10. Torque the caliper bolts to 15 foot pounds.

Installation with Mounting Bolts

Supplied in Mounting Hardware

Note: Use fig. 7 to assist during installation of the

brake lathe when using the mounting bolts supplied
with the mounting hardware.

1. Place spacer(s), as required, onto the mounting

bolt.

2. Insert the mounting bolt with spacers into the

upper lathe mounting bracket.

3. Lift the lathe and align the upper mounting bolt

with the upper caliper bracket bolt hole. Insert the bolt
through the caliper bracket.

4. Place a nut plate between the upper caliper

bracket and the rotor. Finger tighten the mounting bolt
into the nut plate. Let the lathe hang down.

5. Make sure the mounting bolt does not interfere

with the rotor. If necessary, remove the bolt and add
spacers.

6. Adjust the lathe mounting brackets, fig. 6, until

the lower lathe mounting bracket aligns with the lower
caliper bracket bolt hole.

7. Repeat steps 1 through 5 to install the lower

mounting bolt.

8. Torque the mounting bolts to 15 foot pounds.

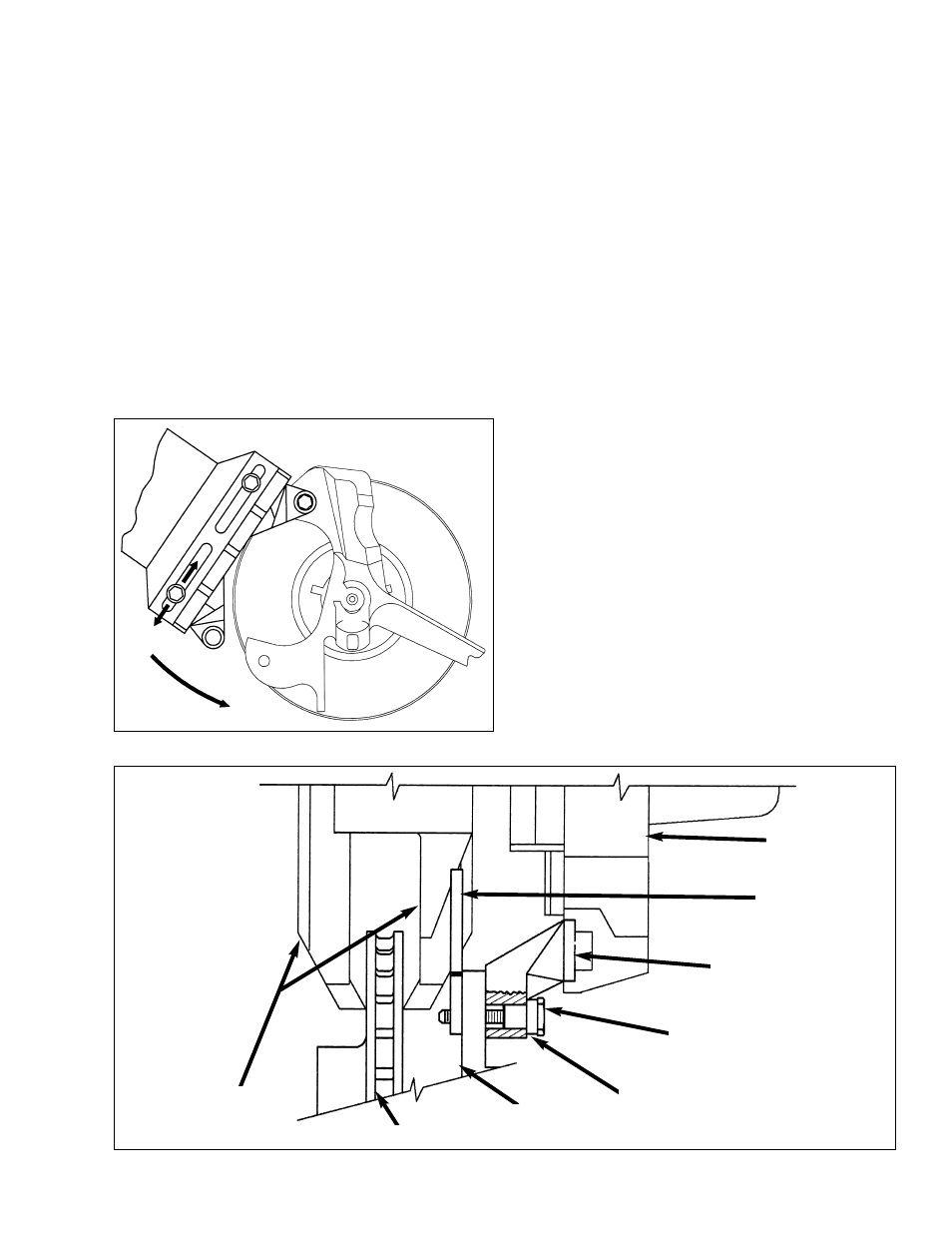

Figure 6

Figure 7

Nut Plate

Lathe Mounting Bracket

Mounting

Bolt

Spacer

(If needed)

Lathe Cutting

Arms

Rotor

Inboard Caliper

Mounting Bracket

Lathe Frame
