4. The spacers may also be used to achieve the
proper lathe position on the rotor, by placing the spac-
ers on the caliper/mounting bolts between the lathe
mounting bracket and the caliper mounting bracket,
fig. 4.
5. The flat washers, provided in the hardware kit,
should be used between the caliper bolt head and the
spacers to insure a good seat for the bolt head, fig. 4.
Installation with the Vehicle’s
Caliper Bolts

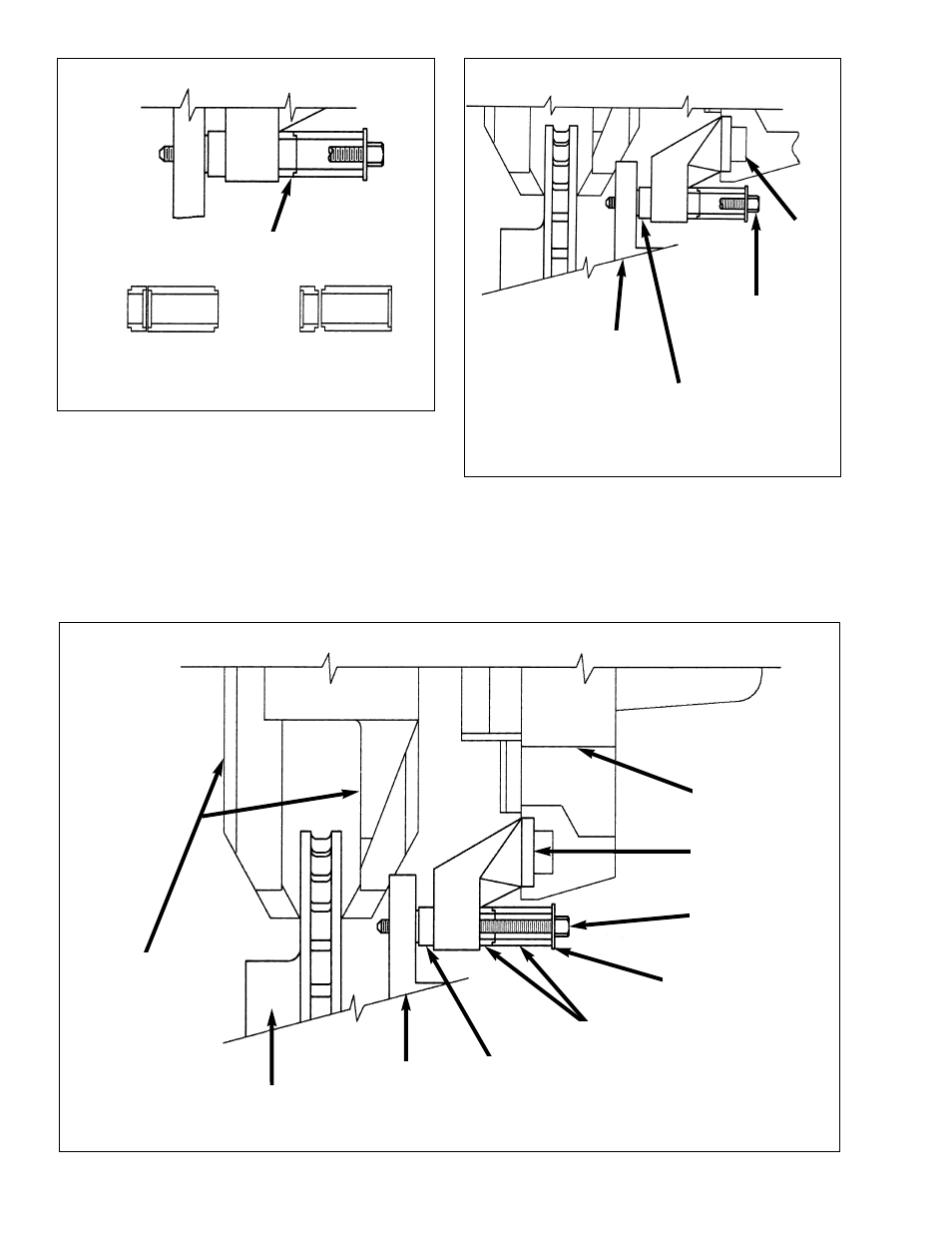

Note: Use fig. 5 to assist during installation of the
brake lathe using the vehicle’s caliper bolts.
Figure 3
Figure 4
Figure 5
Incorrect Configuration
of Spacers
Spacer - Adjust
Lathe Placement On
Rotor
Lathe
Mounting
Bracket
Correct Configuration
of Spacers
Inboard Caliper
Mounting Bracket
Flat
Washer
Lathe Cutting
Arms
Rotor
Inboard Caliper
Mounting
Bracket
(Threaded)
Spacer
(If needed)
Spacers
(As required)
Flat Washer
(If needed)
Caliper Bolt
Lathe Mounting
Bracket
Lathe Frame
