AMMCO 6950 Twin Cutter Tool User Manual
Page 4

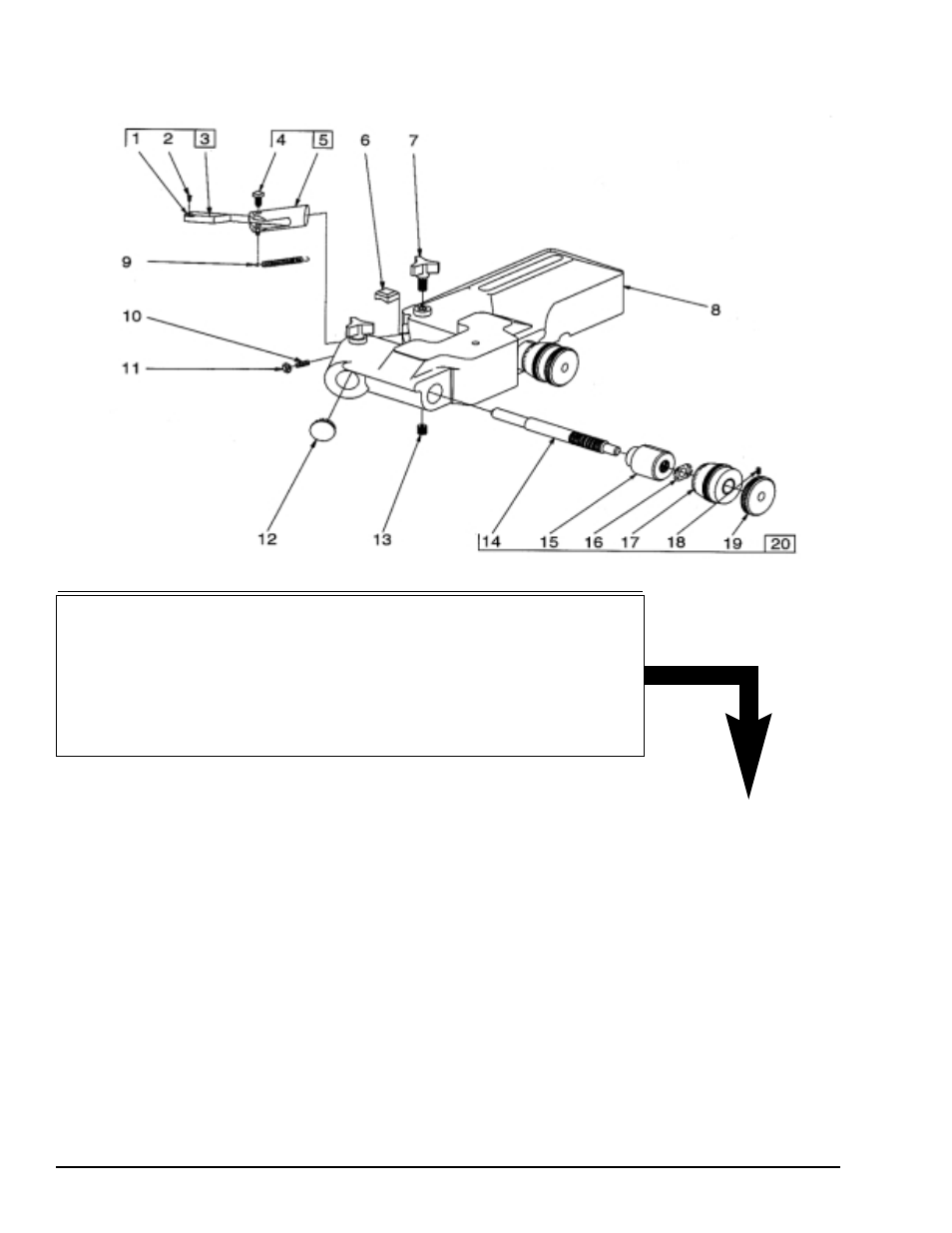

Parts Identification
ITEM PART NO.
QTY.
DESCRIPTION
1
6918 *
2
Carbide Insert, Positive Rake
6914 **
2
Carbide Insert, Negative Rake
2
6499
2
Screw, #4-40 x .25 Oval Head
3
25968 *
1
Holder, Tool Bit, Right Hand, Positive Rake
25969 *
1
Holder, Tool Bit, Left Hand, Positive Rake
10701 **
1
Holder, Tool Bit, Right Hand, Negative Rake
10702 **
1
Holder, Tool Bit, Left Hand, Negative Rake
4
9249
2
Screw, Square Head Set
5
10650
1
Tool Holder, Left Hand
10651
1
Tool Holder, Right Hand
6
28584
2
Gib, Brass, Tool Holder
7
6854
1
Screw, Lock
8
28572
1
Twin Cutter Housing
9
6905
1
Spring
10
9879
2
Screw, Locating
11
3528
2
Nut, Hex
12
6977
2
Plug, Dot
13
6109
2
Screw, 3/16-16 Set
14
6908
2
Rod, Dial
15
6906
2
Plug, Dial
16
6929
2
Washer, Spring
17
6907
2
Dial, Micrometer
18
3338
2
Screw, Set
19
6923
2
Knob, Dial Rod
20
6901
1
Dial Assembly
NOTE: These parts ARE NOT
included with the 6950 Twin
Cutter Tool.
For a complete assembly,
order one of the following:
*
28800 Twin Cutter with
Positive Rake Tool
Holders and Bits
** 29800 Twin Cutter with
Negative Rake Tool
Holders and Bits
28723 3/96 © COPYRIGHT 1996 HENNESSY INDUSTRIES AND AMMCO TOOLS ALL RIGHTS RESERVED PRINTED IN U.S.A.
