Allen & Heath 9 XONE:S2 User Guide

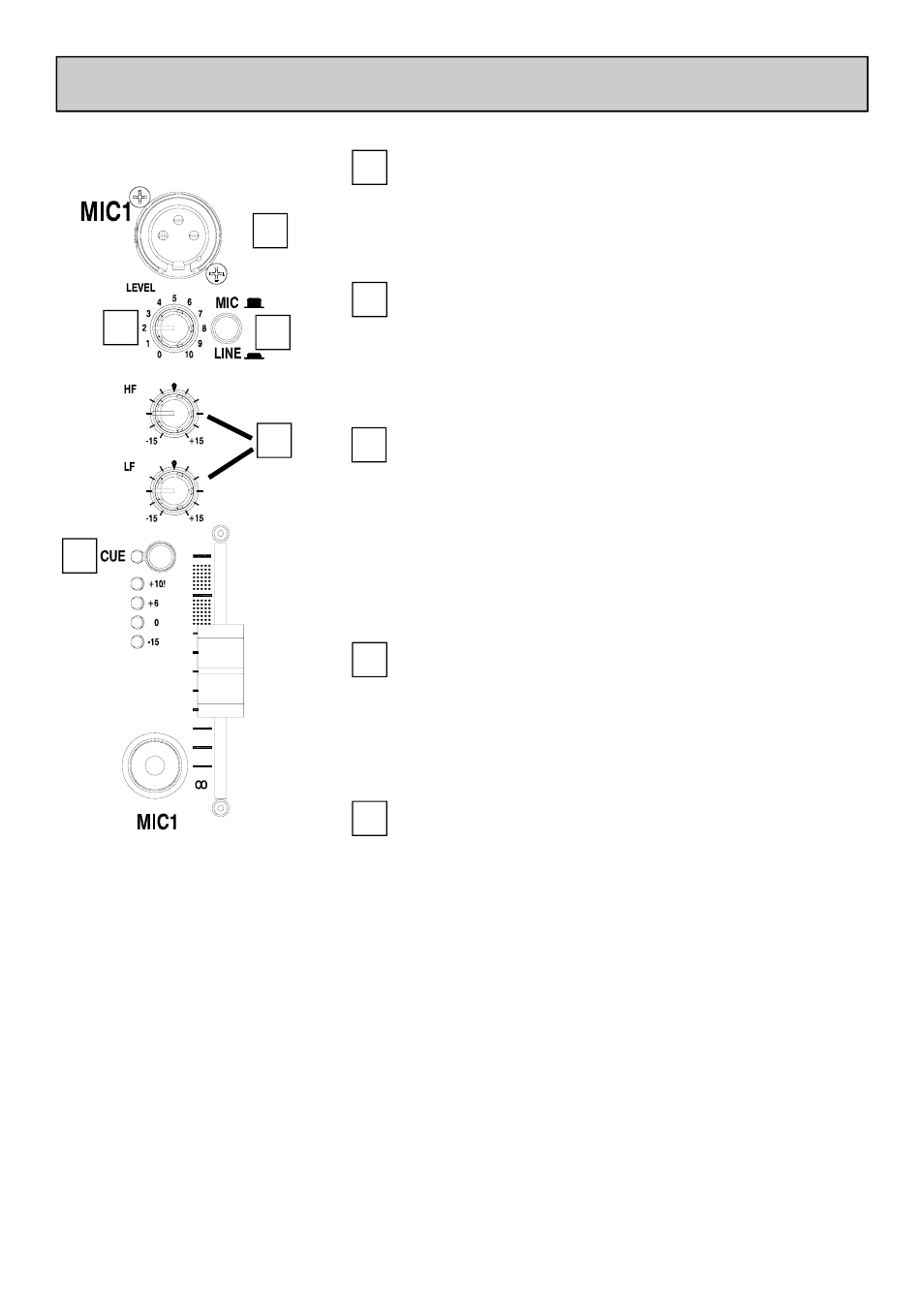

MIC / LINE INPUT CHANNEL
1
2
3
4
5
1 Mic Input Socket
Standard 3-Pin XLR socket wired as Pin 1 = Ground, Pin
2 = hot (+), Pin 3 = cold (-).
2 Mic / Line Select Switch
Selects either the XLR microphone input or the alterna-
tive RCA stereo line input. In the up position MIC is
selected, when pressed LINE is selected.
3 Channel Level Control
This control has a range of -∞ to +9dB for LINE inputs
and a range of -57 dBU to –27dBu for MIC inputs. Use
it to adjust the signal level of an audio source to give a
nominal 0dB reading on the channel meter, with the
peak level at or below 6dB. Turn LEVEL down if the
+10 peak meter starts flashing.
4 Channel Equaliser
The Mic/Line input channel is equipped with a 2 band EQ
stage providing +15dB of boost when fully clockwise and
–15dB attenuation when fully anti-clockwise.
5 Cue Switch
Press the Cue switch to listen to the channel pre-fade
signal in the headphones and see its level on the main
meters. The LED indicator next to the switch lights
when selected. The Cue LED indicator in the monitor
section also lights to warn that you are monitoring the
channel signal rather than the main mix. Press the
switch to deselect cue.
