Allen & Heath 26 XONE:S2 User
16
Mic / Line Channel Line Input
Stereo RCA Phono input for line source on Mic / Line channels. Connect stereo line level
music sources such as CD, MD, DAT, drum machines, keyboards or other instruments. Do
not connect turntables which require RIAA equalisation.
17 Chassis Earth Terminal
A screw terminal is provided for connecting the earth straps from turntables. This connec-
tion earths the metal parts of the turntable to reduce hum, buzz or similar audible noise get-
ting into the system.
15 CH 1-4 Phono Input
RCA phono 7 –100 mV 47k impedance 380 pF. Plug in turntables with magnetic cartridges
requiring RIAA equalisation. For non-RIAA turntables plug into the LINE input instead. Do
not plug in line level sources to the phono inputs as these will overload the preamp and
cause severe high level distortion.
14 Filter External I/O
RCA Phono. Allows external connection to the filter circuitry. External source selected
using Filter Assignment Selector. To use the filter as a global effect, patch the external filter
sockets into the FX Insert points (Send to Filter In, Return to Filter Out).

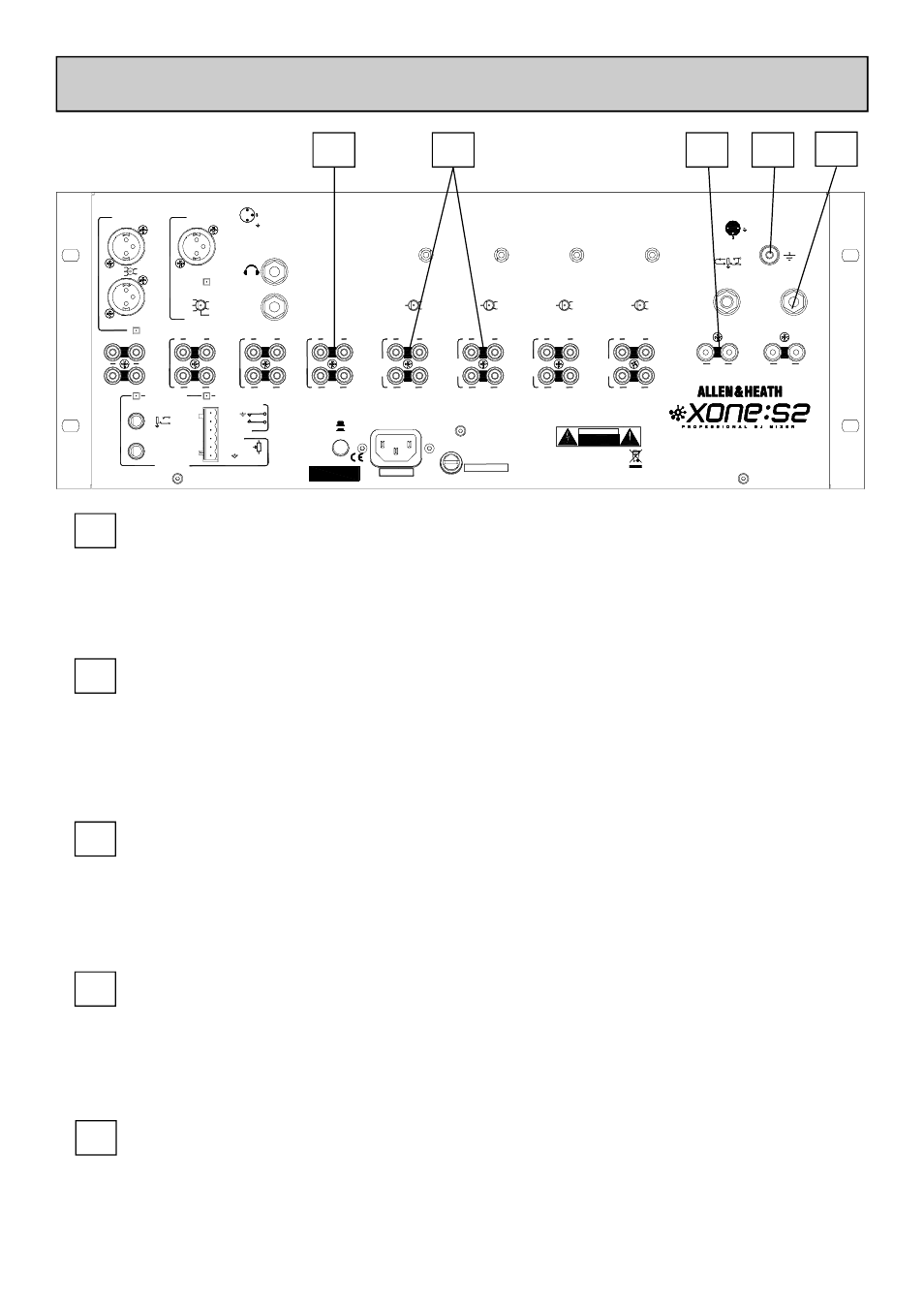

REAR CONNECTORS
INPUT
4
R LINE L
PHONO L R
CHANNEL 4
INPUT
3
R LINE L
PHONO L R
CHANNEL 3
INPUT
2
R LINE L
PHONO L R
CHANNEL 2
INPUT
1
R LINE L
PHONO L R
CHANNEL 1
R LINE L
MIC/LINE 2
R LINE L
MIC/LINE 1
LEVEL TRIM 4 LEVEL TRIM 3 LEVEL TRIM 2 LEVEL TRIM 1
FADER START 4 FADER START 3 FADER START 2 FADER START 1
FREQUENCY
SUB FILTER
MONITOR
RECORD
FX INSERT
R RTN L
SEND L R
HEADPHONE 3
ZONE OUT
ALARM INPUT
100 - 240V~
47-63Hz ~ 30W MAX MADE IN THE UK BY ALLEN & HEATH LIMITED
FUSE
T500mAL 250V 20mm
I
0
ON
OFF
SERIAL No:
AC MAINS IN ~
REPLACE FUSE WITH SAME TYPE
AND RATING.
UN DES MEMES
CARACTERISTIQUES.
DO NOT EXPOSE APPARATUS TO RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
CAUTION
USB AUDIO
R L
L R
FILTER
R IN L
OUT L R
EXTERNAL
IN
OUT
MIX OUT
OUTPUT LIMITER
RIGHT
LEFT
+6 +8
+10
+12 +18
OUTPUT
THRESHOLD
L R
250Hz 150Hz
120Hz
90Hz 30Hz
ALARM
ALARM N/O
ALARM AUDIO
+ 10V EXT
LEVEL 0 -10V
EXT
RIGHT
LEFT
PRE MASTER LEVEL EXT LEVEL CTRL
ZONE OUT
RING -
TIP +
RING
TIP
2
+ IN
MIC INPUT
1
GND
- IN
1
-OUT
2 + OUT
GND
+ 4dBu
DO NOT SHORT RING TO GROUND
FOR UNBALANCED OPERATION
CONNECT TO TIP ONLY
DO NOT SHORT PIN 3 TO GROUND
FOR UNBALANCED OPERATION
CONNECT TO PIN 2 ONLY
+ 4dBu
+ 4dBu
+ 4dBu
-2dBu
-10dBV
(-8dBu)
50Hz
MONO
dBu
AUDIO LIGHT FEED
+ 9dB
0dB
- 4dB
+ 9dB
0dB
- 4dB
+ 9dB
0dB
- 4dB
+ 9dB
0dB
- 4dB
5KRD
CW
INSERT
INSERT
TIP SEND
RING RETURN
INSERT
14 15
INPUT
4
R LINE L
PHONO L R
CHANNEL 4
INPUT
3
R LINE L
PHONO L R
CHANNEL 3
INPUT
2
R LINE L
PHONO L R
CHANNEL 2
INPUT
1
R LINE L
PHONO L R
CHANNEL 1
R LINE L
MIC/LINE 2
R LINE L
MIC/LINE 1
LEVEL TRIM 4 LEVEL TRIM 3 LEVEL TRIM 2 LEVEL TRIM 1
FADER START 4 FADER START 3 FADER START 2 FADER START 1
FREQUENCY
SUB FILTER
MONITOR
RECORD
FX INSERT
R RTN L
SEND L R
HEADPHONE 3
ZONE OUT
ALARM INPUT
100 - 240V~
47-63Hz ~ 30W MAX MADE IN THE UK BY ALLEN & HEATH LIMITED
FUSE
T500mAL 250V 20mm
I
0
ON
OFF
SERIAL No:
AC MAINS IN ~
REPLACE FUSE WITH SAME TYPE
AND RATING.
UN DES MEMES
CARACTERISTIQUES.
DO NOT EXPOSE APPARATUS TO RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
CAUTION
USB AUDIO
R L
L R
FILTER
R IN L
OUT L R
EXTERNAL
IN
OUT
MIX OUT
OUTPUT LIMITER
RIGHT
LEFT
+6 +8
+10
+12 +18
OUTPUT
THRESHOLD
L R
250Hz 150Hz
120Hz
90Hz 30Hz
ALARM
ALARM N/O
ALARM AUDIO
+ 10V EXT
LEVEL 0 -10V
EXT
RIGHT
LEFT
PRE MASTER LEVEL EXT LEVEL CTRL
ZONE OUT
RING -
TIP +
RING
TIP
2
+ IN
MIC INPUT
1
GND
- IN
1
-OUT
2 + OUT
GND
+ 4dBu
DO NOT SHORT RING TO GROUND
FOR UNBALANCED OPERATION
CONNECT TO TIP ONLY
DO NOT SHORT PIN 3 TO GROUND
FOR UNBALANCED OPERATION
CONNECT TO PIN 2 ONLY
+ 4dBu
+ 4dBu
+ 4dBu
-2dBu
-10dBV
(-8dBu)
50Hz
MONO
dBu
AUDIO LIGHT FEED
+ 9dB
0dB
- 4dB
+ 9dB
0dB
- 4dB
+ 9dB
0dB
- 4dB
+ 9dB
0dB
- 4dB
5KRD
CW
INSERT
INSERT
TIP SEND
RING RETURN
INSERT
16 17 18
18
Mic Channel Insert Point
An insert point is provided on the Mic Input Channels wired as Tip (send) and Ring (return)
on a 1/4” TRS jack.
