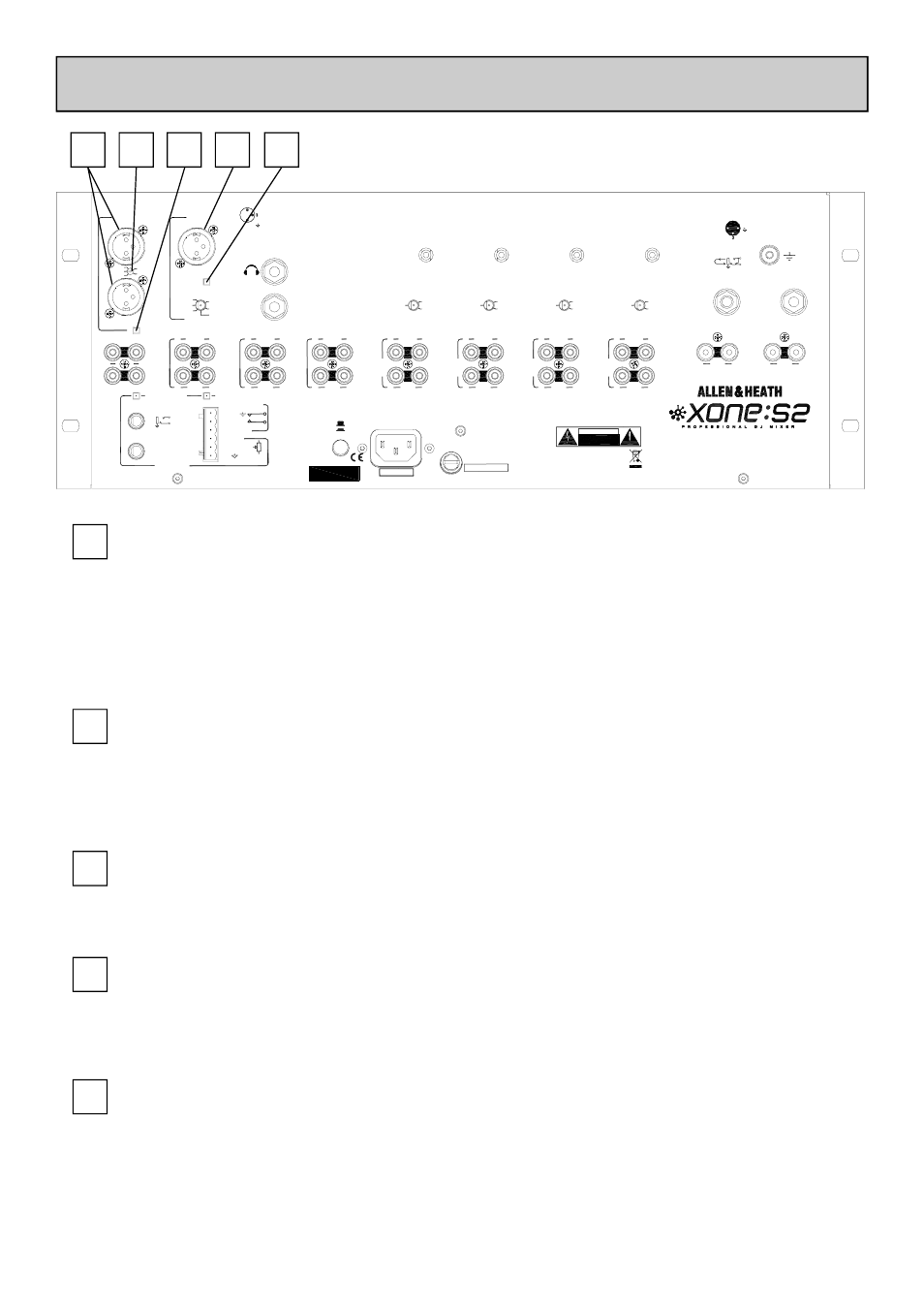

REAR CONNECTORS
1 2 3 4 5
1
2
Mix Output
Balanced XLR. This is the main output that feeds the house PA system. Plug into the house
processor/amplifier system using balanced cables. Use balanced cables and equipment.
When the main meter LEDs are at “0dB” the output will nominally be at +4dBu. Do not
unbalance this output by shorting one phase to ground—for unbalanced operation use pin 2
only.
Output Threshold Selector
Sets the output threshold level - adjustable from +6 to +18 dBu. This control is a recessed
preset pot—use a thin flat blade screwdriver to adjust. Turning the pot clockwise increases
the sensitivity of the limiter and reduces the maximum output level.
3
Output Limiter Switch
Using a thin screwdriver, pressing this recessed switch turns the output limiter on.
4
Mono Output
Impedance balanced XLR nominal +4dBu. The mono output can also be configured to be a
sub bass output. This output follows the master level control.
5
Sub Filter Switch
Pressing this recessed switch engages a 12dB/Oct low pass filter making this output ideal as a
feed for a sub bass system.
