Allen & Heath 27 XONE:S2 User

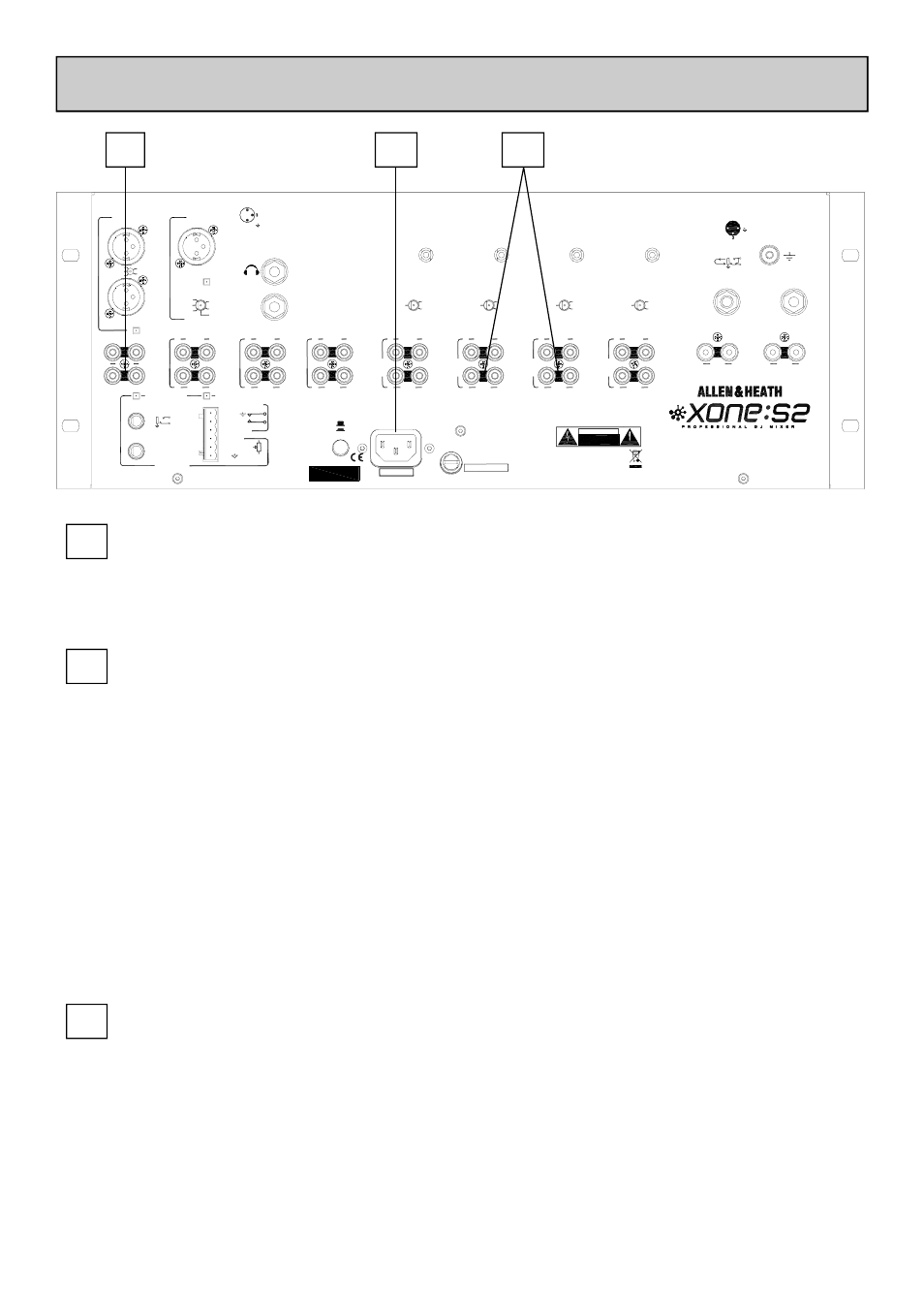

REAR CONNECTORS
19
20
AC Mains Input
IEC cable with moulded mains plug suitable for your local supply.
Important: Read the SAFETY INSTRUCTIONS sheet included with the
Xone:S2 and printed on the rear panel.
Check that the correct mains lead with moulded plug has been supplied with your console.
The power supply accepts mains voltages within the range 100-240V without changing any
fuses or settings. Ensure that the IEC mains plug is pressed fully into the rear panel socket
before switching on.
Note: It is standard practice to turn connected power amplifiers down or off before
switching the console on or off. This prevents any potential damage to speaker systems due
to switch-on transients.
21
CH 1-4 Line Input
RCA phono. Connect stereo line level music sources such as CD, MD, DAT, drum ma-
chines, keyboards or other instruments. Do not connect turntables which require RIAA
equalisation. Alternatively, you can connect to jack sources using a cable with RCA to jack
adapters. Avoid using low grade cables such as those often supplied with domestic equip-
ment as these can quickly prove unreliable in use.
20
19
Record Output
RCA Phono, nominal –10dBv (-8dBu). Pre-level mix output for connection to external re-
cording devices.
21
INPUT
4
R
LINE
L
PHONO
L
R
CHANNEL 4
INPUT
3
R
LINE
L
PHONO
L
R
CHANNEL 3
INPUT
2
R
LINE
L
PHONO
L
R
CHANNEL 2
INPUT
1
R
LINE
L
PHONO
L
R
CHANNEL 1
R
LINE
L
MIC/LINE 2
R
LINE
L
MIC/LINE 1
LEVEL TRIM 4
LEVEL TRIM 3
LEVEL TRIM 2
LEVEL TRIM 1
FADER START 4
FADER START 3
FADER START 2
FADER START 1
FREQUENCY
SUB FILTER
MONITOR
RECORD
FX INSERT
R
RTN
L
SEND
L
R
HEADPHONE 3
ZONE OUT
ALARM INPUT
100 - 240V~
47-63Hz ~ 30W MAX
MADE IN THE UK BY ALLEN & HEATH LIMITED
FUSE
T500mAL 250V 20mm
I
0
ON
OFF
SERIAL No:
AC MAINS IN ~
REPLACE FUSE WITH SAME TYPE
AND RATING.
UN DES MEMES
CARACTERISTIQUES.
DO NOT EXPOSE APPARATUS TO RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
CAUTION
USB AUDIO
R
L
L
R
FILTER
R
IN
L
OUT
L
R
EXTERNAL
IN
OUT
MIX OUT
OUTPUT LIMITER
RIGHT
LEFT
+6
+8
+10
+12
+18
OUTPUT
THRESHOLD
L
R
250Hz
150Hz
120Hz
90Hz
30Hz
ALARM
ALARM N/O
ALARM AUDIO
+ 10V EXT
LEVEL 0 -10V
EXT
RIGHT
LEFT
PRE MASTER LEVEL
EXT LEVEL CTRL
ZONE OUT
RING -
TIP +
RING
TIP
2
+ IN
MIC INPUT
1
GND
- IN
1
-OUT
2
+ OUT
GND
+ 4dBu
DO NOT SHORT RING TO GROUND
FOR UNBALANCED OPERATION
CONNECT TO TIP ONLY
DO NOT SHORT PIN 3 TO GROUND
FOR UNBALANCED OPERATION
CONNECT TO PIN 2 ONLY
+ 4dBu
+ 4dBu
+ 4dBu
-2dBu
-10dBV
(-8dBu)
50Hz
MONO
dBu
AUDIO LIGHT FEED
+ 9dB
0dB
- 4dB
+ 9dB
0dB
- 4dB
+ 9dB
0dB
- 4dB
+ 9dB
0dB
- 4dB
5KRD
CW
INSERT
INSERT
TIP SEND
RING RETURN
INSERT
