Allen & Heath 25 XONE:S2 User

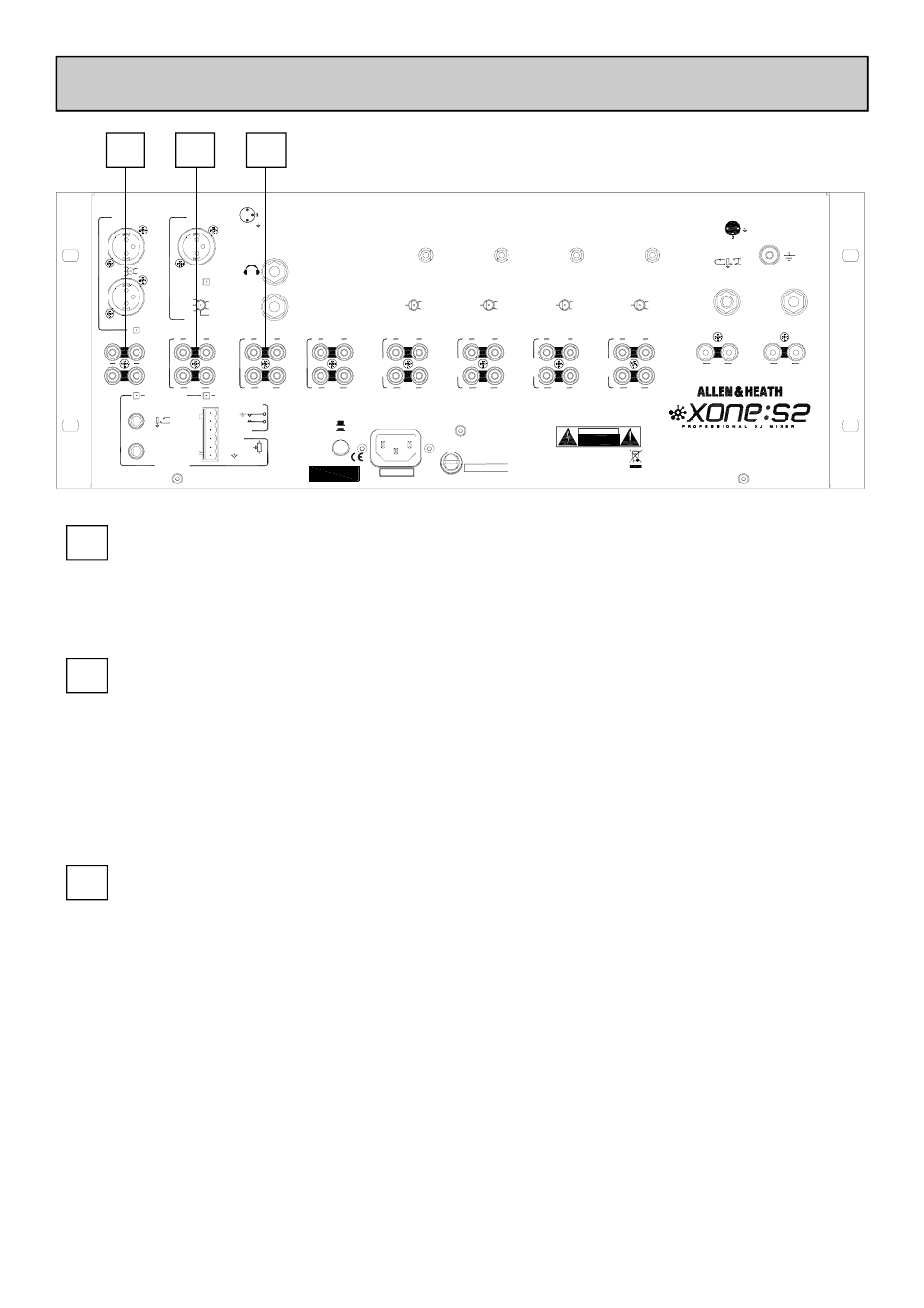

REAR CONNECTORS
11
12
13
11
12
Monitor Output
RCA phono (–2dBu nominal). Provides a line level stereo feed to the DJ local monitor am-
plifier system. It is not affected by the master fader or cue system.
FX Insert Point
RCA phono. Provides for insertion of effects into the main out audio path. Selected using
the FX Loop On switch.
NOTE: If nothing is connected to the insert, selecting the FX Loop on will break the main
signal path. Always fit the supplied shorting jumpers if the insert isn’t being used—the insert
send is always active.
INPUT
4
R
LINE
L
PHONO
L
R
CHANNEL 4
INPUT
3
R
LINE
L
PHONO
L
R
CHANNEL 3
INPUT
2
R
LINE
L
PHONO
L
R
CHANNEL 2
INPUT
1
R
LINE
L
PHONO
L
R
CHANNEL 1
R
LINE
L
MIC/LINE 2
R
LINE
L
MIC/LINE 1
LEVEL TRIM 4
LEVEL TRIM 3
LEVEL TRIM 2
LEVEL TRIM 1
FADER START 4
FADER START 3
FADER START 2
FADER START 1
FREQUENCY
SUB FILTER
MONITOR
RECORD
FX INSERT
R
RTN
L
SEND
L
R
HEADPHONE 3
ZONE OUT
ALARM INPUT
100 - 240V~
47-63Hz ~ 30W MAX
MADE IN THE UK BY ALLEN & HEATH LIMITED
FUSE
T500mAL 250V 20mm
I
0
ON
OFF
SERIAL No:
AC MAINS IN ~
REPLACE FUSE WITH SAME TYPE
AND RATING.
UN DES MEMES
CARACTERISTIQUES.
DO NOT EXPOSE APPARATUS TO RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
CAUTION
USB AUDIO
R
L
L
R
FILTER
R
IN
L
OUT
L
R
EXTERNAL
IN
OUT
MIX OUT
OUTPUT LIMITER
RIGHT
LEFT
+6
+8
+10
+12
+18
OUTPUT
THRESHOLD
L
R
250Hz
150Hz
120Hz
90Hz
30Hz
ALARM
ALARM N/O
ALARM AUDIO
+ 10V EXT
LEVEL 0 -10V
EXT
RIGHT
LEFT
PRE MASTER LEVEL
EXT LEVEL CTRL
ZONE OUT
RING -
TIP +
RING
TIP
2
+ IN
MIC INPUT
1
GND
- IN
1
-OUT
2
+ OUT
GND
+ 4dBu
DO NOT SHORT RING TO GROUND
FOR UNBALANCED OPERATION
CONNECT TO TIP ONLY
DO NOT SHORT PIN 3 TO GROUND
FOR UNBALANCED OPERATION
CONNECT TO PIN 2 ONLY
+ 4dBu
+ 4dBu
+ 4dBu
-2dBu
-10dBV
(-8dBu)
50Hz
MONO
dBu
AUDIO LIGHT FEED
+ 9dB
0dB
- 4dB
+ 9dB
0dB
- 4dB
+ 9dB
0dB
- 4dB
+ 9dB
0dB
- 4dB
5KRD
CW
INSERT
INSERT
TIP SEND
RING RETURN
INSERT
13
USB Audio I/O
RCA phono. Allows external connection to USB interface. Internal link option sets the USB
to internal post balance pre level mix out if required. The default setting is for external in-
put allowing the USB interface to be connected to the insert point and used as an effects
unit with suitable software (such as Ableton Live). To record a mix using the USB In, con-
nect to either the Record Out socket or the FX Send.
The USB interface is compatible with Windows™ 98/98SE, ME, WIN2000 and XP, MAC
OS9.1, OSX (10.0) or later (but not Japanese OS 10.1).
For lowest latency with Windows, an ASIO driver is recommended such as ASIO4ALL by
Michael Tippach — www.asio4all.com
