Allen & Heath 21 XONE:42 User Guide

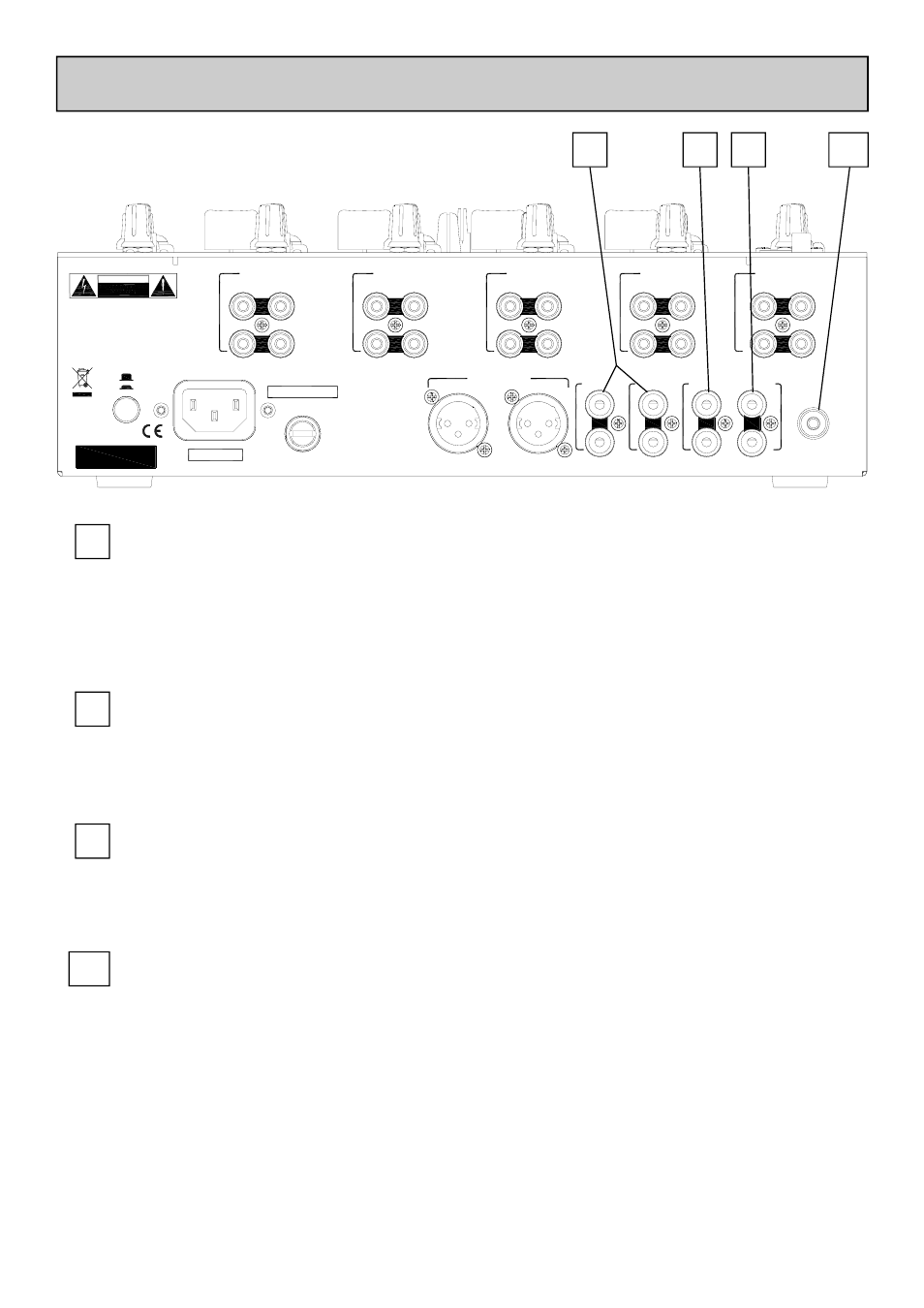

REAR CONNECTORS
10
Booth Output
RCA phono (–2dBu nominal). Provides a line level stereo feed to the DJ local monitor am-
plifier system. It is not affected by the master fader or cue system.
X:FX Send/Return
RCA phono. Connect your external effects device and use the X:FX dry / wet control to
send channel signals to the effects unit. The signal returns to the mix buss but can be routed
to the VCF filter by pressing the ‘X:FX Return to Filter’ button on the front panel. This al-
lows the filter to be ‘stacked’ with an external effects device.
10
Record Output
RCA Phono, nominal –10dBv (-8dBu). Pre-level mix output for connection to external re-
cording devices.
Chassis Earth Terminal
A screw terminal is provided for connecting the earth straps from turntables. This connec-
tion earths the metal parts of the turntable to reduce hum, buzz or similar audible noise get-
ting into the system.
RECORD
R
L
BOOTH
R
L
X:FX RTN
R
L
MIX OUT
LEFT RIGHT
R
L
LINE
L R PHONO
L R
INPUT 1
LINE
L R PHONO
L R
INPUT 2
LINE
L R
L R
INPUT 3
LINE
L R
L R
INPUT 4
100 - 240V~
47-63Hz ~ 30W MAX MADE IN THE UK BY ALLEN & HEATH LIMITED
FUSE
T500mAL 250V 20mm
I
0
ON
OFF
SERIAL No:
AC MAINS IN ~
WARNING:
REPLACE FUSE WITH SAME TYPE AND RATING.
STRICTEMENT IDENTIQUE EN VALEURS.
ATTENTION: REMPLACER PAR UN FUSIBLE
DO NOT EXPOSE APPARATUS TO RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
WARNING: THIS APPARATUS MUST BE EARTHED.
CAUTION
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE
X:FX SND
IN
L R OUT
L R
USB AUDIO
LINE LINE
A
B
A
B
7
8
9
9 7 8
