Allen & Heath 20 XONE:42 User Guide

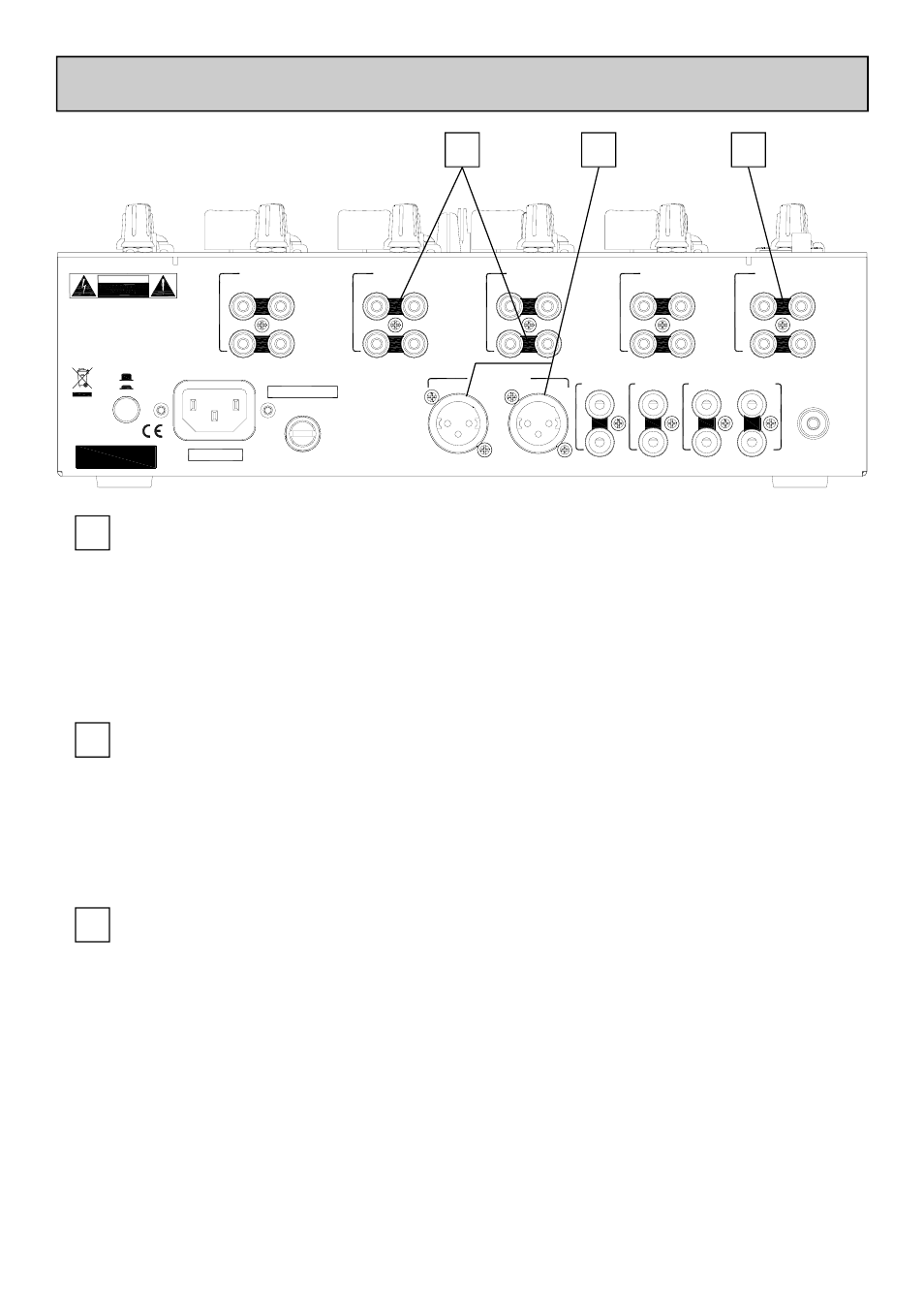

REAR CONNECTORS
5 4
5
6
4
6
Mix Output
Balanced XLR. This is the main output that feeds the house PA system. Plug into the house
processor/amplifier system using balanced cables. Use balanced cables and equipment.
When the main meter LEDs are at “0dB” the output will nominally be at +4dBu. Do not
unbalance this output by shorting one phase to ground—for unbalanced operation use pin 2
only.
CH 2 and 3 Line Inputs A/B
RCA phono. Connect stereo line level music sources such as CD, MD, DAT, drum ma-
chines, keyboards or other instruments. Switch between inputs A and B using the switches
next to the input levels on the front panel. Do not connect turntables which require RIAA
equalisation. Alternatively, you can connect to jack sources using a cable with RCA to jack
adapters. Avoid using low grade cables such as those often supplied with domestic equip-
ment as these can quickly prove unreliable in use.
USB Audio I/O
RCA phono. Allows external connection to USB interface. The routing is configured for
external input allowing the USB interface to be connected to the insert point and used as an
effects unit with suitable software (such as Ableton Live). To record a mix using the USB In,
connect to the Record Out socket.
The USB interface is compatible with Windows™ 98/98SE, ME, WIN2000 and XP, MAC
OS9.1, OSX (10.0) or later (but not Japanese OS 10.1).
For lowest latency with Windows, an ASIO driver is recommended such as ASIO4ALL by
Michael Tippach — www.asio4all.com
RECORD
R
L
BOOTH
R
L
X:FX RTN
R
L
MIX OUT
LEFT RIGHT
R
L
LINE
L R PHONO
L R
INPUT 1
LINE
L R PHONO
L R
INPUT 2
LINE
L R
L R
INPUT 3
LINE
L R
L R
INPUT 4
100 - 240V~
47-63Hz ~ 30W MAX MADE IN THE UK BY ALLEN & HEATH LIMITED
FUSE
T500mAL 250V 20mm
I
0
ON
OFF
SERIAL No:
AC MAINS IN ~
WARNING:
REPLACE FUSE WITH SAME TYPE AND RATING.
STRICTEMENT IDENTIQUE EN VALEURS.
ATTENTION: REMPLACER PAR UN FUSIBLE
DO NOT EXPOSE APPARATUS TO RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
WARNING: THIS APPARATUS MUST BE EARTHED.
CAUTION
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE
X:FX SND
IN
L R OUT
L R
USB AUDIO
LINE LINE
A
B
A
B
