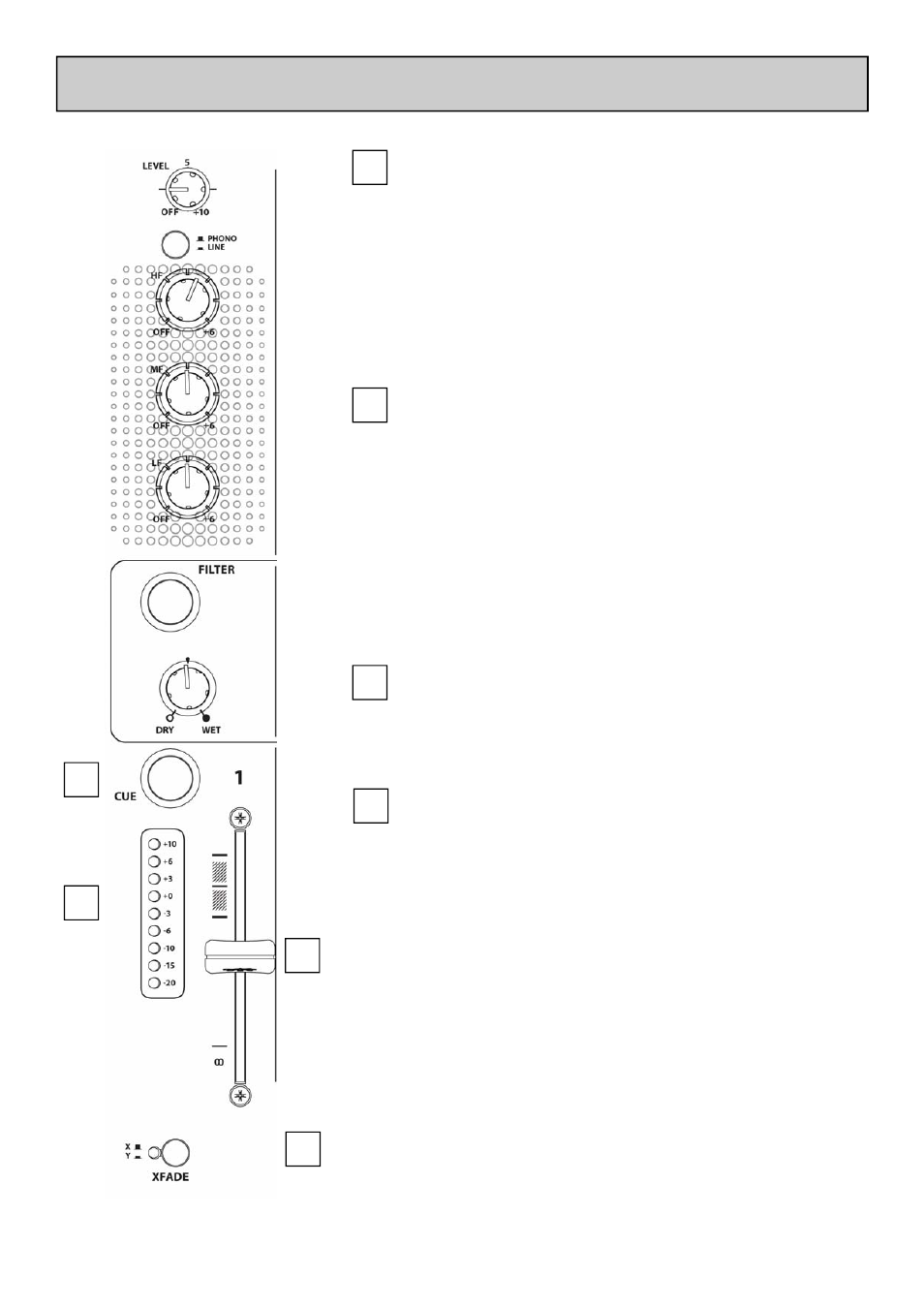

PHONO / LINE INPUT CHANNELS 1 and 4
8
9
8 Channel Fader
A high quality, smooth travel dual-rail fader adjusts the
channel signal level from fully off to fully on.
9 XFade Switch
Used to assign the channel to either the X (left) or Y
(right) side of the cross-fader. Works in conjunction
with the XFADER On switch in the master section.
A bi-colour LED indicator illuminates either green (X)
or red (Y) to show which side of the cross-fader has
been selected.
7 Channel Meter
Displays the channel signal level. It is pre-EQ and pre-
fader, allowing the input level to be displayed even if the
EQ is set to off on all bands. To view the post EQ level,
press the cue switch and use the mix/monitor meters.
The channel level control should be set so that the me-
ter averages around ‘0’ with loudest peaks no higher
than ‘+6’. Turn down the level control if the +10 peak
indicator lights.
7
6
6 Cue Switch
Press the Cue switch to listen to the channel pre-fade
signal in the headphones and see its level on the main
meters. The LED indicator next to the switch lights
when selected. The Cue LED indicator in the monitor
section also lights to warn that you are monitoring the
channel signal rather than the main mix. Press the
switch to deselect cue.
