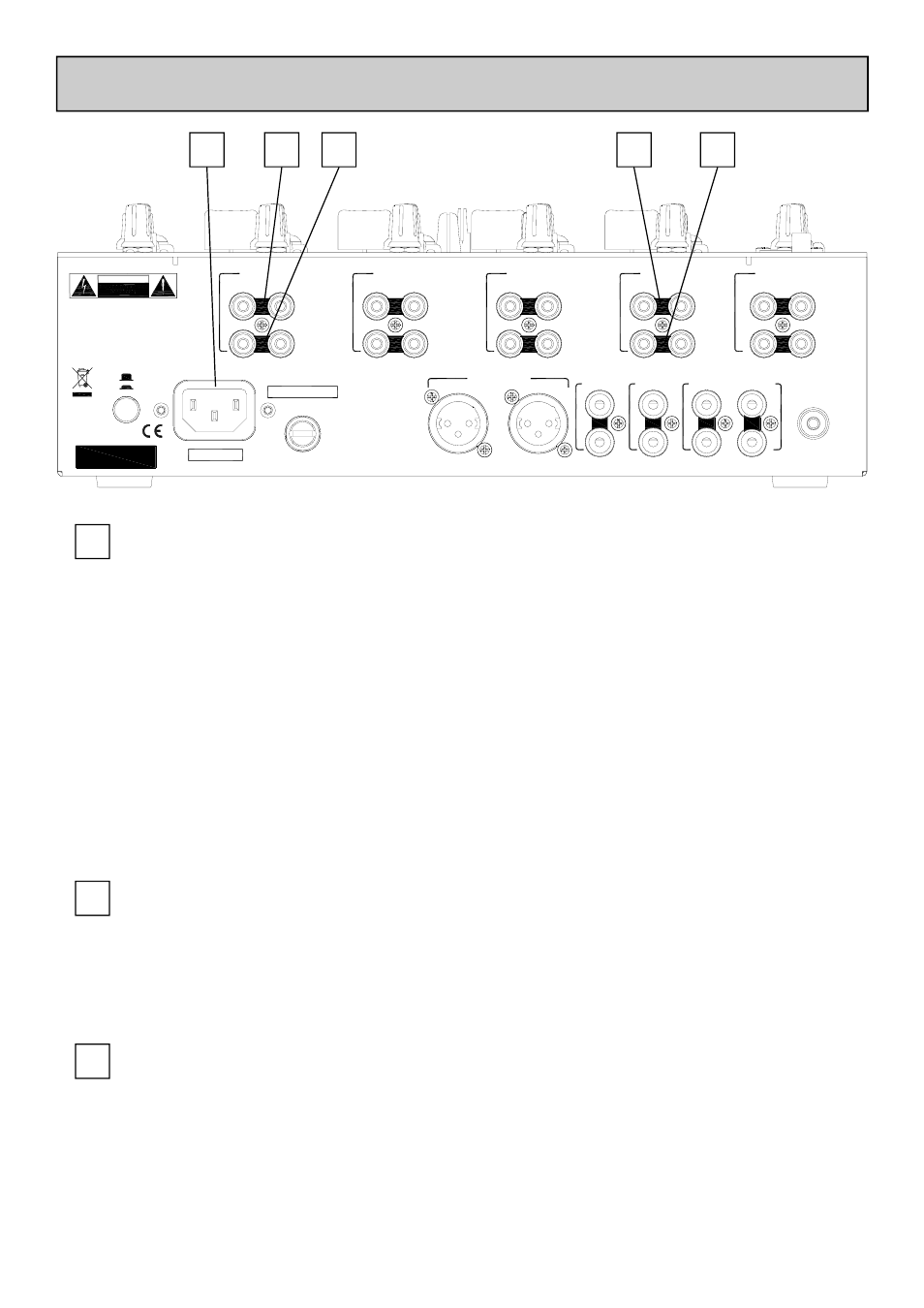

REAR CONNECTORS
1 2 3 3 2
1
2
3
AC Mains Input
IEC cable with moulded mains plug suitable for your local supply.
Important: Read the SAFETY INSTRUCTIONS sheet included with the
Xone:42 and printed on the rear panel.
Check that the correct mains lead with moulded plug has been supplied with your console.
The power supply accepts mains voltages within the range 100-240V without changing any
fuses or settings. Ensure that the IEC mains plug is pressed fully into the rear panel socket
before switching on.
Note: It is standard practice to turn connected power amplifiers down or off before
switching the console on or off. This prevents any potential damage to speaker systems due
to switch-on transients.
CH 1 and 4 Phono Input
RCA phono 7 –100 mV 47K impedance 380 pF. Plug in turntables with magnetic cartridges
requiring RIAA equalisation. For non-RIAA turntables plug into the LINE input instead. Do
not plug in line level sources to the phono inputs as these will overload the preamp and
cause severe high level distortion.
CH 1 and 4 Line Input
RCA phono. Connect stereo line level music sources such as CD, MD, DAT, drum ma-
chines, keyboards or other instruments. Do not connect turntables which require RIAA
equalisation. Alternatively, you can connect to jack sources using a cable with RCA to jack
adapters. Avoid using low grade cables such as those often supplied with domestic equip-
ment as these can quickly prove unreliable in use.
