MIDI CHANNEL SETUP
MIDI Channel Number
The MIDI channel number will default to channel 16, but can be
changed to any channel between 1 and 16.
To change the MIDI channel number and MIDI map:
1.
Hold down the switch on the encoder shown in the diagram
2. Turn on the Xone:4D
3. At the end of the start up sequence, when the illuminated
switches have flashed three times, release the switch on the
encoder.

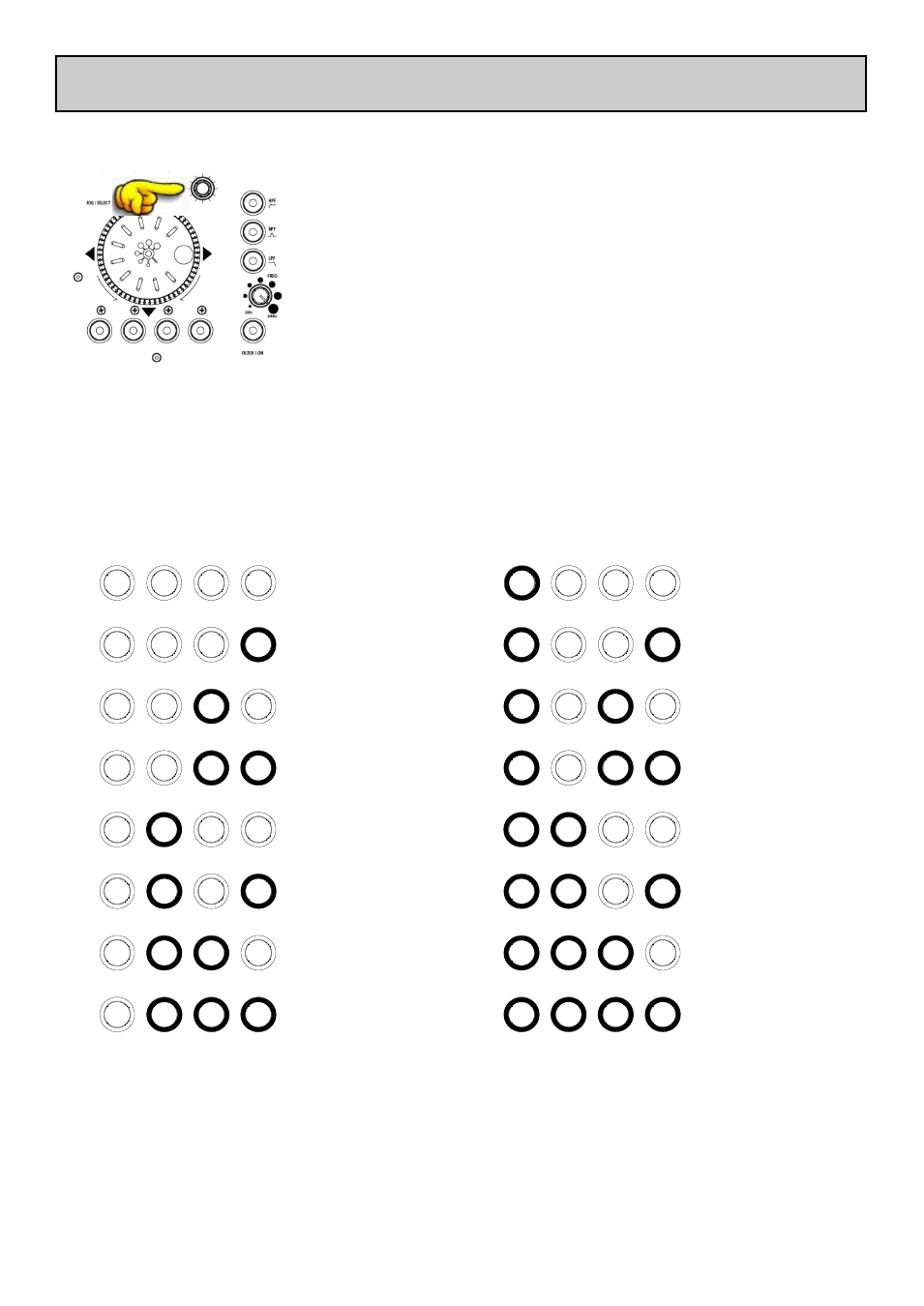

The illuminated switches on the Xone:4D will display the current
MIDI channel number in binary format as shown below.
Channel 1
Channel 2
Channel 3
Channel 4
Channel 5
Channel 6
Channel 7
Channel 8
Channel 9
Channel 10
Channel 11
Channel 12
Channel 13
Channel 14
Channel 15
Channel 16
To change the channel number that the MIDI is transmitted on, rotate the encoder above
the jog wheel.
Once the desired channel has been selected, press and then release the switch on the
encoder above the jog wheel. The illuminated switches will flash once indicating that the
channel number has been set.
Hot Setup
You may also enter setup mode by holding down the encoder shown above and then pressing
the same encoder on the right hand MIDI pod. This allows the MIDI channel and Map to be
changed if the mixer is in a fixed installation.
