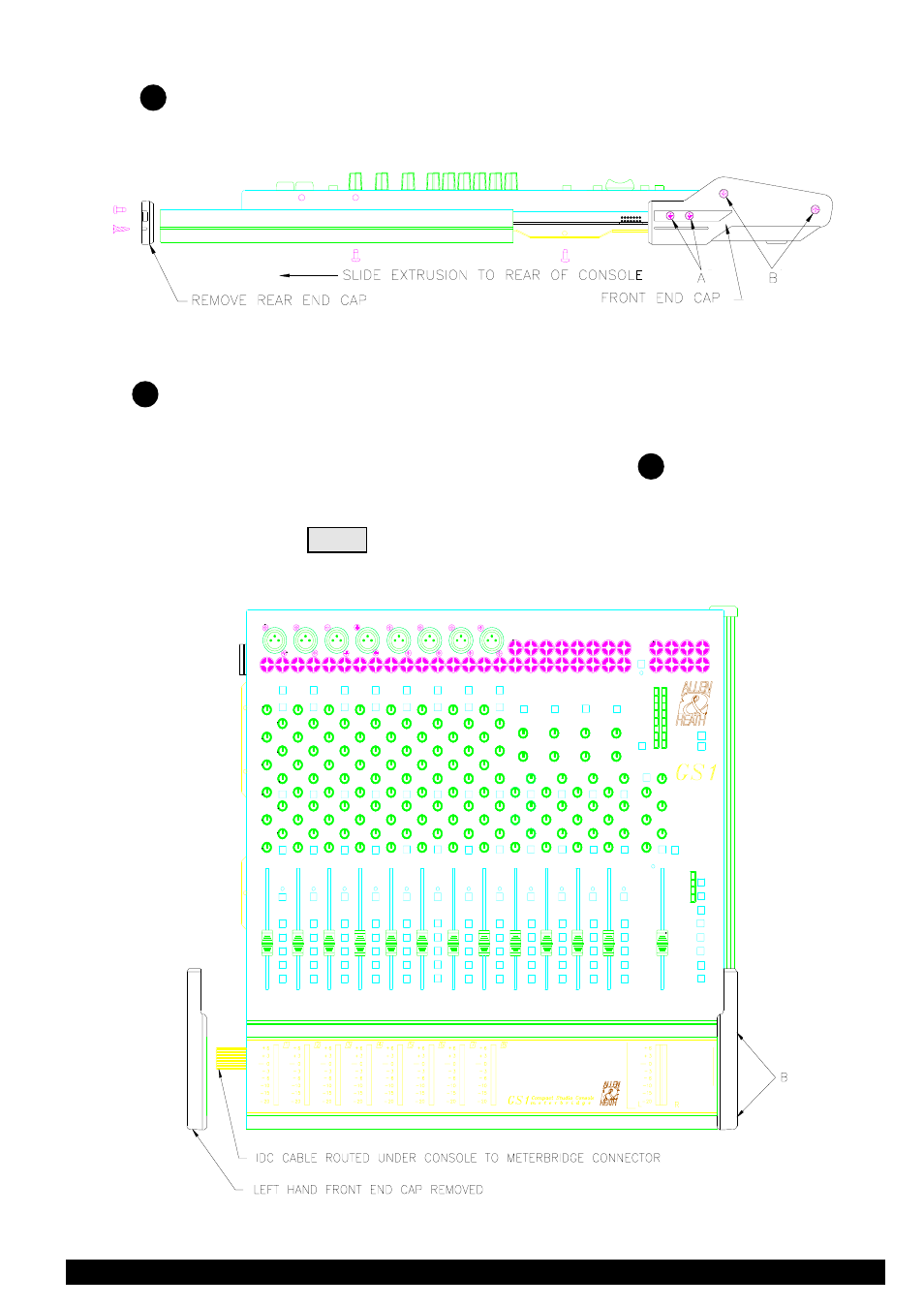

4 Remove screws from left hand extrusion and plastic end cap and slide out extrusion as shown.
Remove left hand front end cap held by screws "A" and "B"
5 Release screws "B" from right hand front end cap and remove existing armrest.
Insert Meterbridge into right hand front end cap, replace left hand front end cap ensuring IDC cable exits
through the slot in the end cap.
Route IDC cable under console and connect as detailed previously in step of rear position assembly
instructions
Replace side extrusion and rear end cap.
The IDC cable clip ITEM 3 may be used on base of console to keep IDC cable neat.
5
The installation is now complete. Replug the console and test for correct operation.
