ALLEN & HEATH
1 4
S1SM1

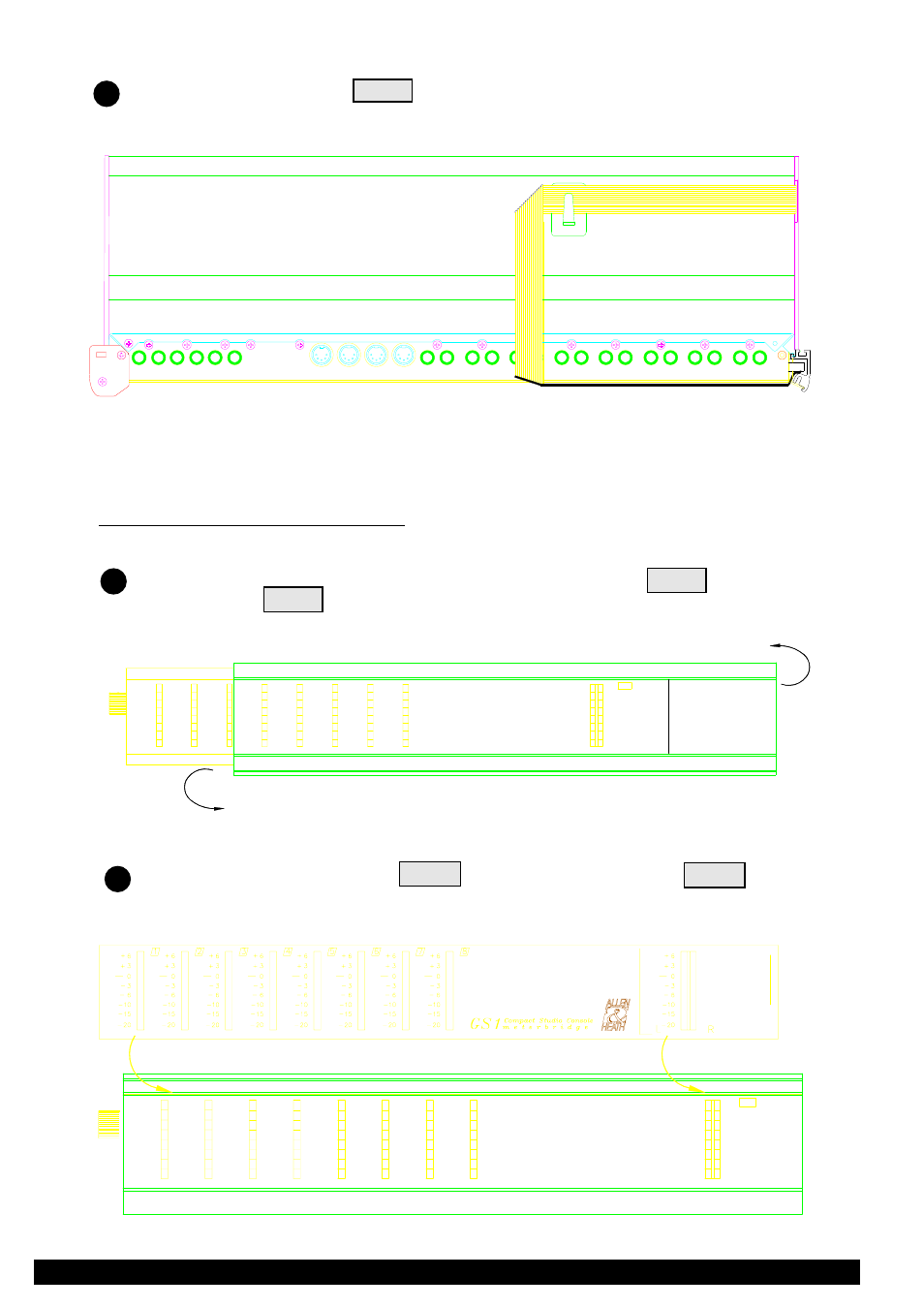

Apply the self adhesive cable clip ITEM 3 as shown in the diagram.
Route cable as shown below. Replace side extrusion and rear end cap.
6
ASSEMBLY (ARMREST POSITION)
To assemble the Meterbridge in the armrest position the Front Panel/PCB assembly ITEM 5 must be removed
from the extrusion ITEM 7 and replaced the opposite way round.
2
1
3
When replaced the self adhesive Facia ITEM 4 can be applied to the front panel ITEM 5
ensuring correct alignment with the meter slots.
The installation is now complete. Replug the console and test for correct operation.
