Servicing the Meterbridge Assembly
Before beginning any service work, remove all power to the unit. Ensure adequate lighting and use
the correct tools.
1)
Remove all the plastic snap-in rivets along the face of the meter panel with your fingernails or
other non-abrasive tool.
2)

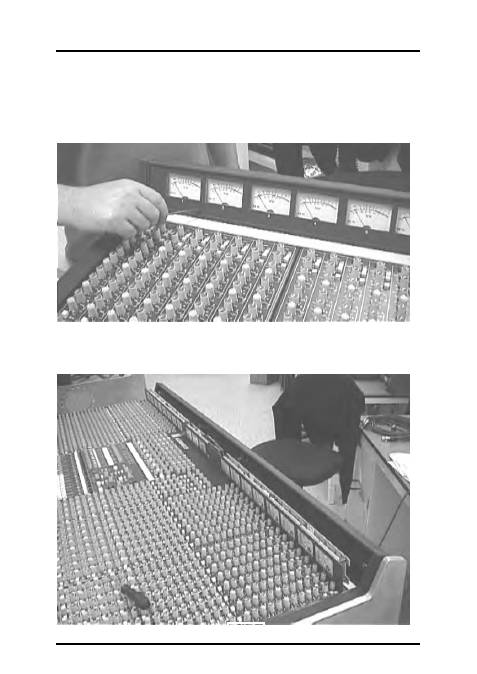

With a person standing at either end of the console, each using a small, thin screwdriver,
place the screwdriver through each of the endmost bottom rivet holes (see fig 8). Raise the
meter panel up with the screwdrivers so that the bottom becomes free of the extrusion.
3)
The complete meter panel assembly can now be removed from the meter pod extrusion by
pulling it away from the extrusion, bottom first (see fig.9), allowing access to the Meter PCB
assemblies. Remove the two attaching IDC harnesses.
