ML5000 Service Manual

Carefully remove the

Fader Slave PCB from the Mono Fader PCBs by pulling it upwards

from the fader boards.

Once removed, turn the

Fader Slave PCB over (see fig.3)

To remove a

Mono Fader PCB, use a 5.5mm spanner to remove the relevant

M3x4 Taptite Hex

Headed Screws

(E) that attach the Mono Fader PCBs to the Input Fader Bracket (see fig.3).

To remove a fader remove the two relevant M3x5 Countersunk Pozi Screws with under-head pips

(C)

as shown in fig.1. Then unplug the fader wireform from the

Fader Slave PCB, the fader can now be

removed. De-solder the three fader wireform wires from the fader, taking note of the wire positions for
refitting.

Note: A fader can be removed without removing the IDC wireforms and Slave PCB.

To refit any of the PCB/Fader assemblies, follow the above procedure in reverse order.

Ensure all

connectors and harnesses are correctly aligned and plugged on. Test for correct operation.

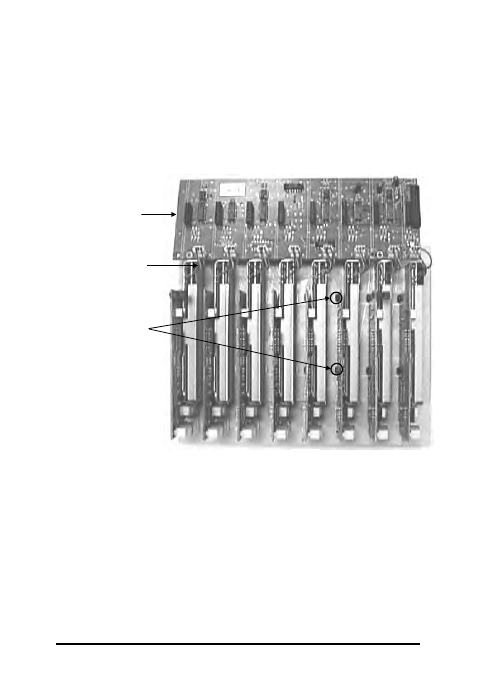

fig.3

Fader Slave PCB

Fader Wireform
