ML5000 Service Manual 25
Servicing the Input Fader assembly
Before beginning any service work, remove all power to the unit and disconnect any signal cables
where necessary. Ensure adequate lighting and use the correct tools.
Remove the numbered Ident strip by placing a flat headed screwdriver under one end and prizing it
upwards. Remove the Ident strip by ‘peeling’ it from one end of the console to the other.
Remove the 3x 6Bx3/8 Countersunk Pozi Zinc Screws from the top of the fader panel (A) and the 3x
6Bx3/8 Flange Headed Pozi Black Screws from the bottom of the fader panel, taking care to retain the
plastic washers

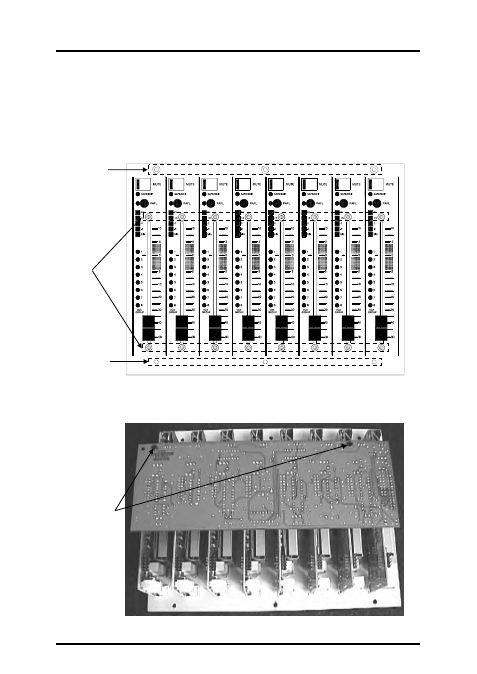

(B) (see fig.1). Carefully tilt the fader panel assembly out from the console and
remove all connecting IDC wireforms. The fader panel assembly can now be removed from the
console.
3) Flip the fader panel over and remove the 2x 4ABx5/16 Countersunk Pozi Black Screws (D)
from the Fader Slave PCB (see fig.2)
D
fig.2
fig.1
A
C
B
