AirLive N.Plug - Manual (Page 72)

4. Web Configuration
AirLive N.Plug User’s Manual 67

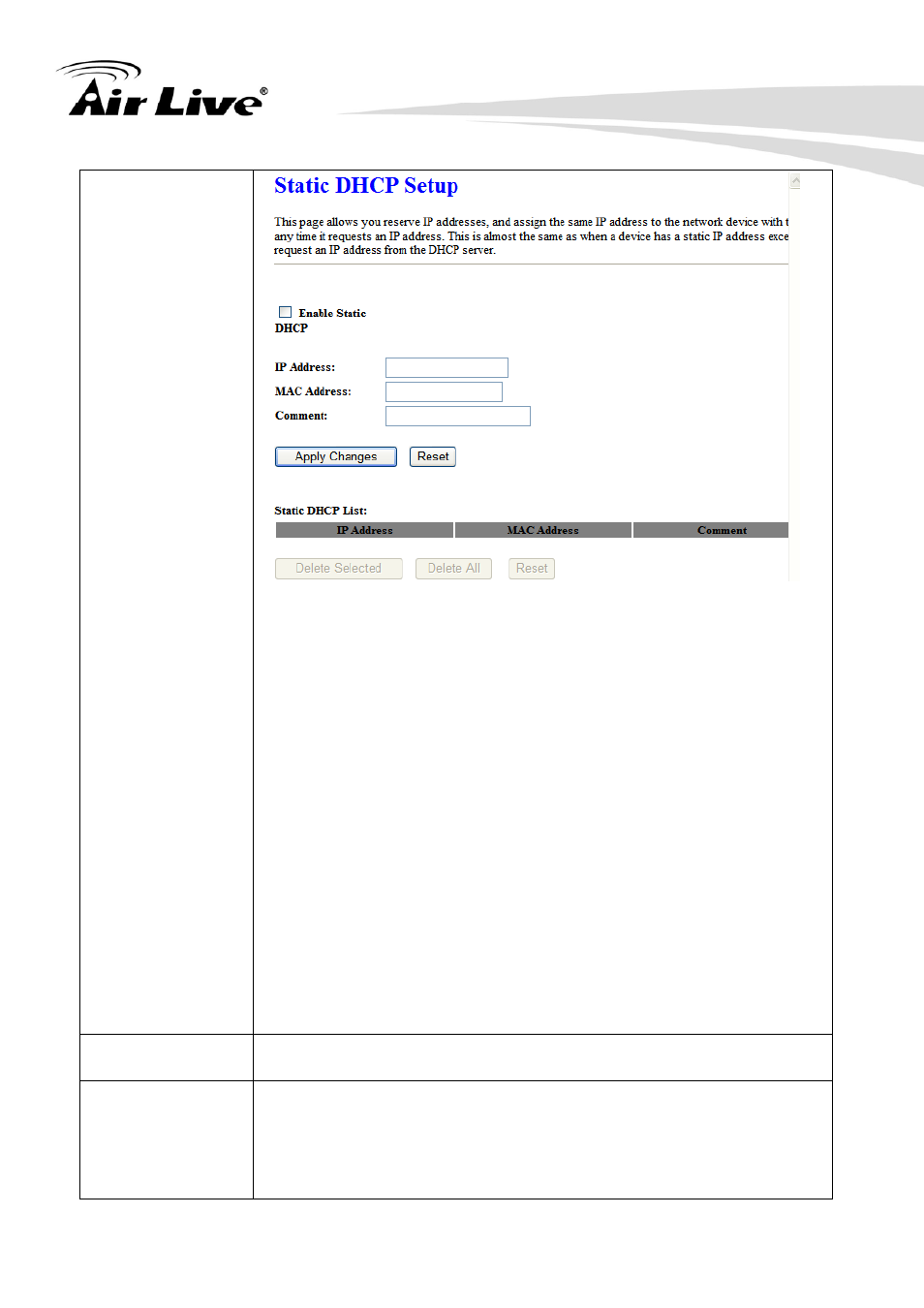

IP Address: Enter the fixed IP address that DHCP server assigned to
a certain connected station.
MAC Address: Enter the MAC address of a certain station, and then
the DHCP server will to distribute a fixed IP address to the station
automatically once they connected.
Comment: You can enter a comment to description above IP
address or MAC address.
Apply Changes: After completing the settings on this page, click
Apply changes button to save the settings.
Reset: Click Reset to restore to default values.
Static DHCP List: Here shows the static IP address that have been
assigned according to the MAC address.
Delete Selected: Click Delete Selected to delete items which are
selected.
Delete All: Click Delete All button to delete all the items.
Reset: Click Reset button to rest.
Domain Name Enter the network area name here.
802.1d Spanning
Tree Select Disabled or Enabled form the pull-down list.
