3. Installation

AirLive N.Plug User’s Manual

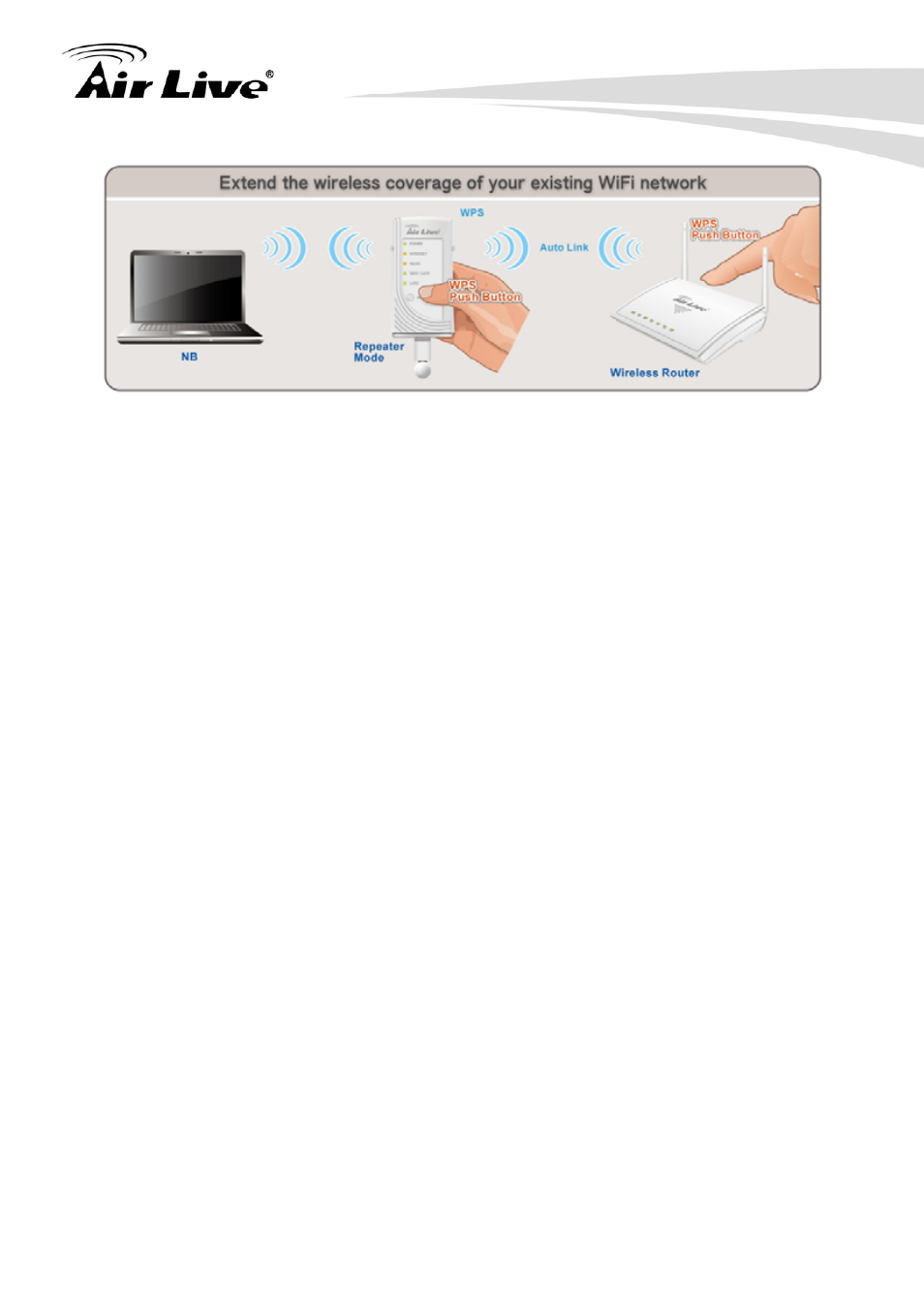

Configure one N.Plug as Repeater without WPS

1. Set N.Plug in “Repeater mode” by using the hardware switch at the top of N.Plug.
2. Plug-in N.Plug at the electrical outlet and wait about 2 minutes for devices to complete

boot up.

3. Access WEB UI of N.Plug by enter http://192.168.1.253 in the URL box of Web

Browser (IE/Firefox/Safari)

4. Enter UserID/Password as admin/airlive
5. After Logged in, click at Wizard at top panel of the page.
6. Click at the Site survey button
7. Choose the SSID of your Router/AP device, and press OK.
8. Press

Next

Button

9. Select corresponded Encryption of your Router/AP device
10. Select the Pre-Shared Key format of your Router/AP device
11. Enter Pre-Share Key
12. Press Finish and wait for N.Plug to reboot
13. Wait for 2 minutes for the connection to establish between N.Plug and the Router/AP.
