4. Web Configuration
AirLive N.Plug User’s Manual
46

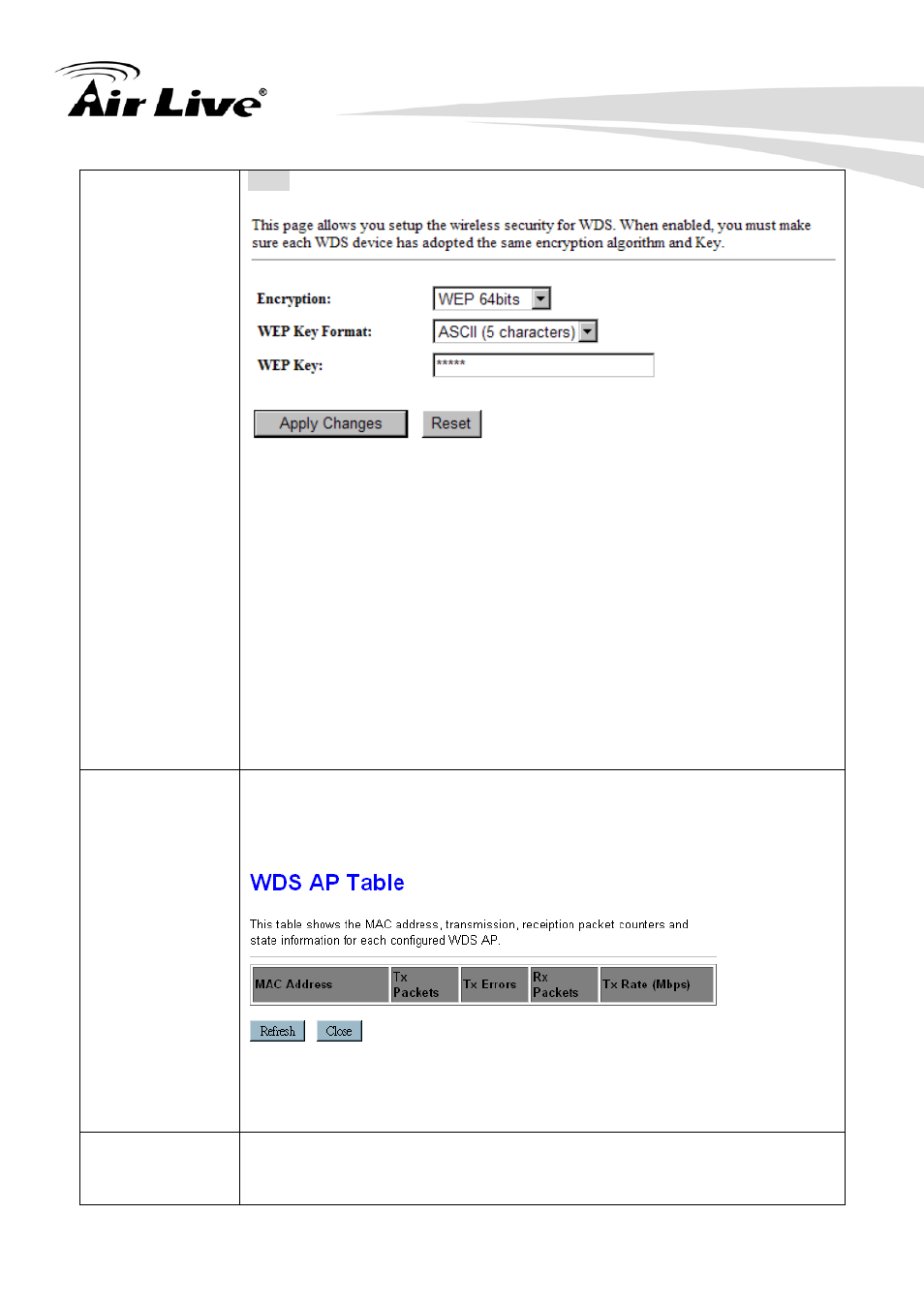

WEP
WEP Key Format: For WEP 64 bits and WEP 128 bits encryption type,
the selection of WEP Key Format are Hex and ASCII.
WEP Key: If select Hex if you are using hexadecimal numbers (0-9, or
A-F).
Select ASCII if you are using ASCII characters (case-sensitive).
Hexadecimal (WEP 64 bits): 10 Hex characters (0~9, a~f).
Hexadecimal (WEP 128 bits): 26 Hex characters (0~9, a~f).
ASCII (WEP 64 bits): 5 ASCII characters (case-sensitive).
ASCII (WEP 128 bits): 13 ASCII characters (case-sensitive).
Show Statistics Click Show Statistics to show the current WDS AP table. This table
shows the MAC address, transmission packets and errors, reception
packets and Tx Rate (Mbps) counters for each configured WDS AP.
Refresh: Click to renew the counters information.
Close: Click to leave the screen.
Current WDS AP
List Here shows the current WDS AP information.
