2. Operation Modes
AirLive N.Plug User’s Manual 9

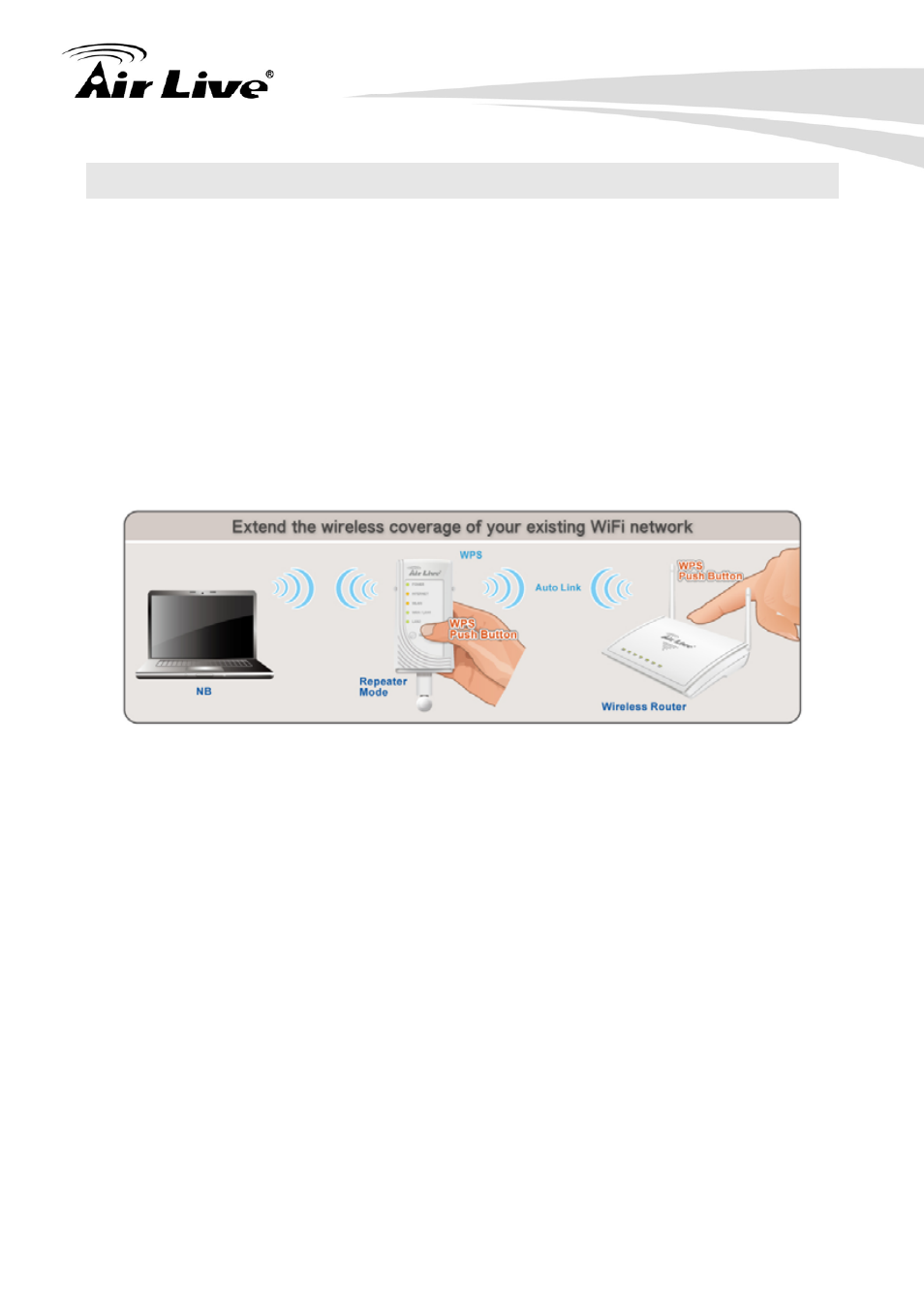

2.3 Repeater Mode
There are three selectable sub modes under Repeater.
2.3.1 Repeater Mode (Default Mode)
If the sub mode sets to Repeater (Universal Repeater) mode, it can also extend the
wireless coverage of another wireless AP or router. But the universal repeater does not
require the remote device to have WDS function. Therefore, it can work with almost any
wireless device.
Note: When you are using the universal repeater mode, please make sure the remote
AP/Router‘s WDS function is turned off.
2.3.2 Repeating Router
For entering Repeating Router Mode, user needs to set the hardware switch to Repeater
first. Then user can access to the web user interface of N.Plug, either use the Wizard
function or just go to “Wireless Æ Basic” for selecting the Repeating Mode via the drop
down box.
