1.2 Front Panel and Rear Panel

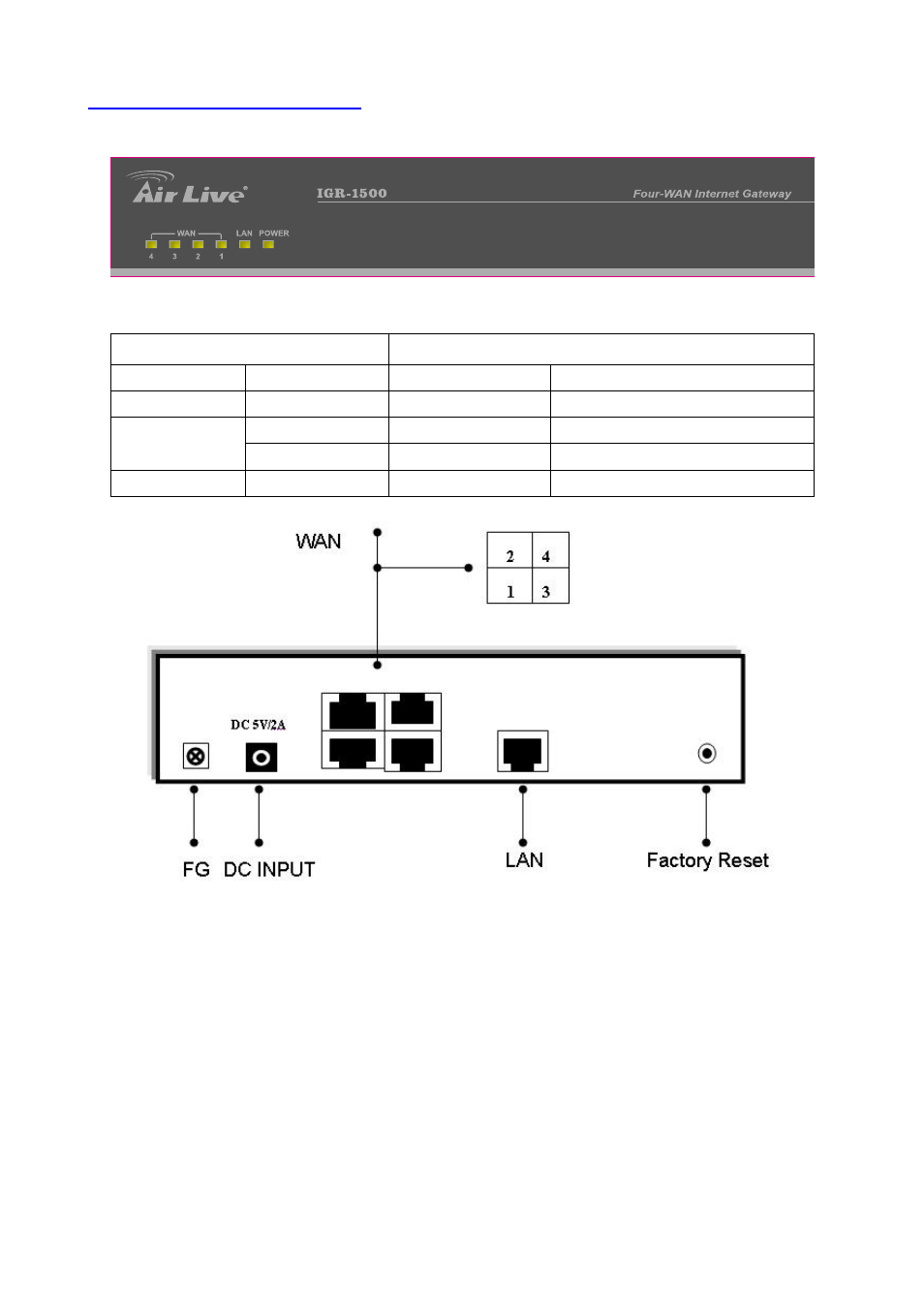

Figure 1-1 Front Panel
LED Status
Indicator Color ON Flashing
Power ● Green Power on -
● Green Linked Data Transmission
WAN1~4
● Red Collision -
LAN ● Green Linked Data Transmission
Figure 1-2 Rear Panel
Ports:
FG: Ground connection
DC 5V: Connecting to AC adapter
WAN1~4 Port: Four RJ-45 type WAN ports connecting to broadband transmission equipment such as ADSL
or Cable modem via RJ-45 cable.
LAN Port: One RJ-45 type LAN port connecting to your network devices such as Hub/Switch via RJ-45 cable.
Factory Reset: Press Factory Reset button can be defined as to reload factory default value or reset back to
latest configuration by software. When you finish defining the Default Button Option, just pressing Factory
Reset button 2 seconds and releasing it, the router will load the default settings or back to latest configuration.
