AirLive IGR-1500 - Manual (Page 45)

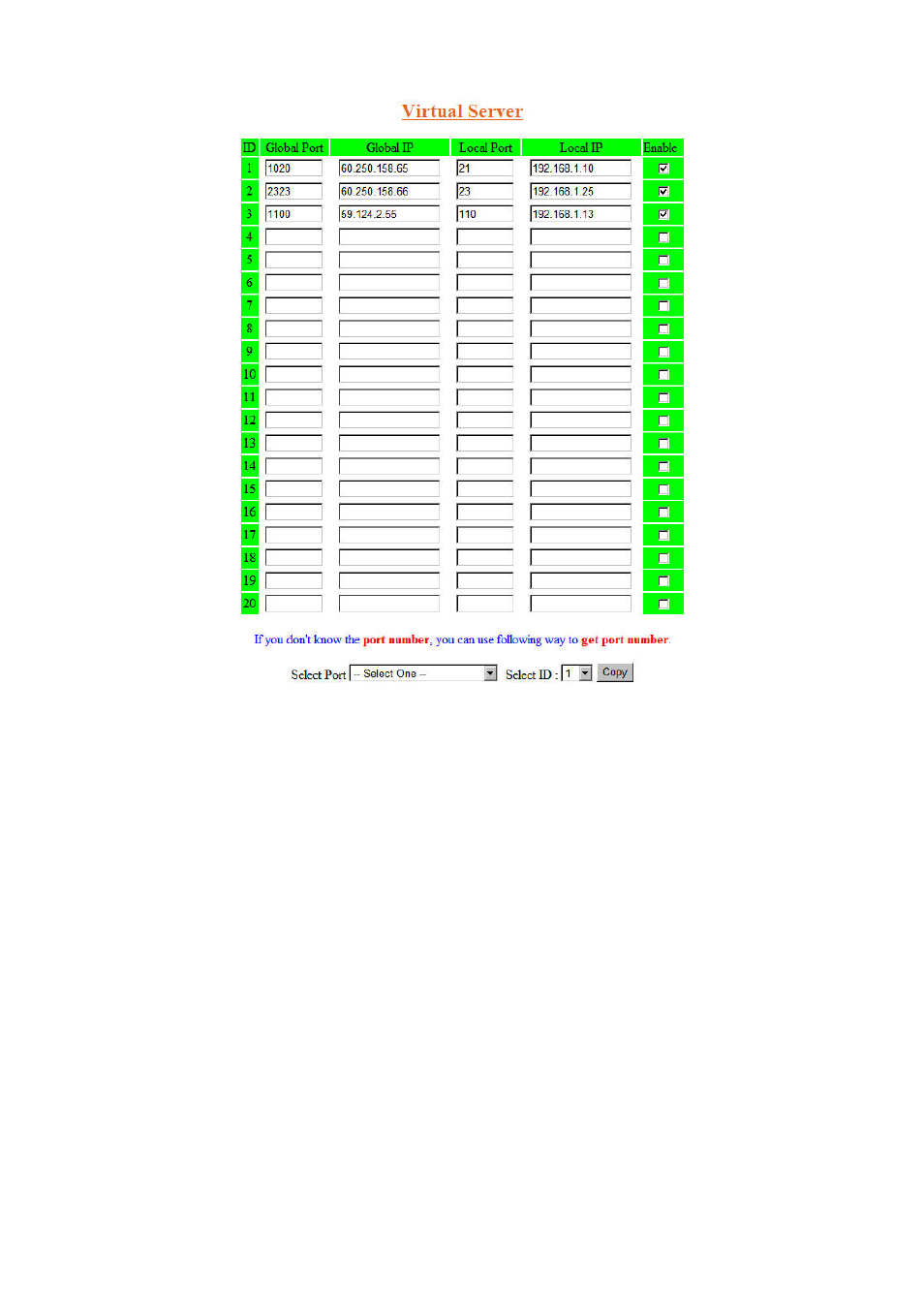

Figure 3-36 Virtual Server
For example: (Figure 3-37)
Suppose you want to install servers dedicated with specific WAN port as following:
1. Internet user can access FTP server from WAN1
2. Internet user can access VNC from WAN 2.
3. Internet user can ERP server from all the WAN port.
Environment:
WAN1 IP address: Static IP address 60.250.158.64
WAN2 IP address: Static IP address 230.74.69.15
WAN3 IP address: Dynamic IP
WAN4 IP address: PPPoE
LAN server:
FTP server (TCP 21): 192.168.1.10
VNC client (TCP 5800, 5900): 192.168.1.50
ERP server (TCP 1394 ~ TCP 1400): 192.168.1.120
42
