Now the Inbound Load-balancing DNS Server is configured to redirect the Internet requests of
www.example.com to the IP address of either WAN1 or WAN2. But we’ll still need to configure the virtual
server.

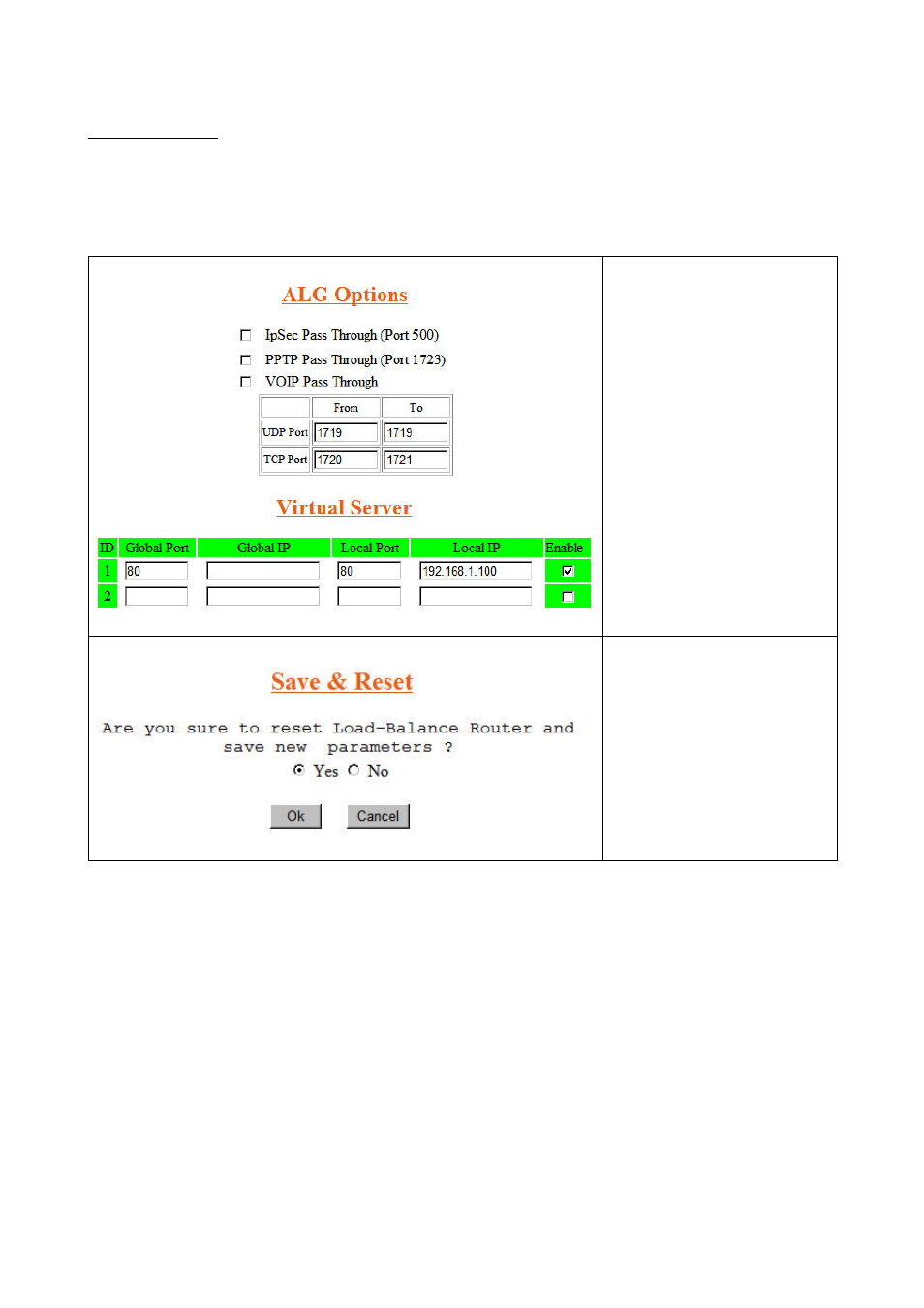

In the IN-BOUND ROUTER configuration: Advance Æ Virtual Server
Step 1:
The port for www.example.com
is 80 and the IP address is:
192.168.1.100.
Enter:
Global Port: 80
Local Port: 80
Local IP: 192.168.1.100
Select Enable, and then click
APPLY .
Step 2:
In order for the Inbound Load
Balancing to take effect, we will
need to do a system reboot.
Select Yes and click on Ok.
After the reset sequence is finished, the configured for Inbound Load Balancing is completed.
