3.3.2 Data Monitor
Differ with Link Status window, Data Monitor window provides detail packet transfer status. It includes 2 kinds
of real time data per each WAN port. (Figure 3-5)

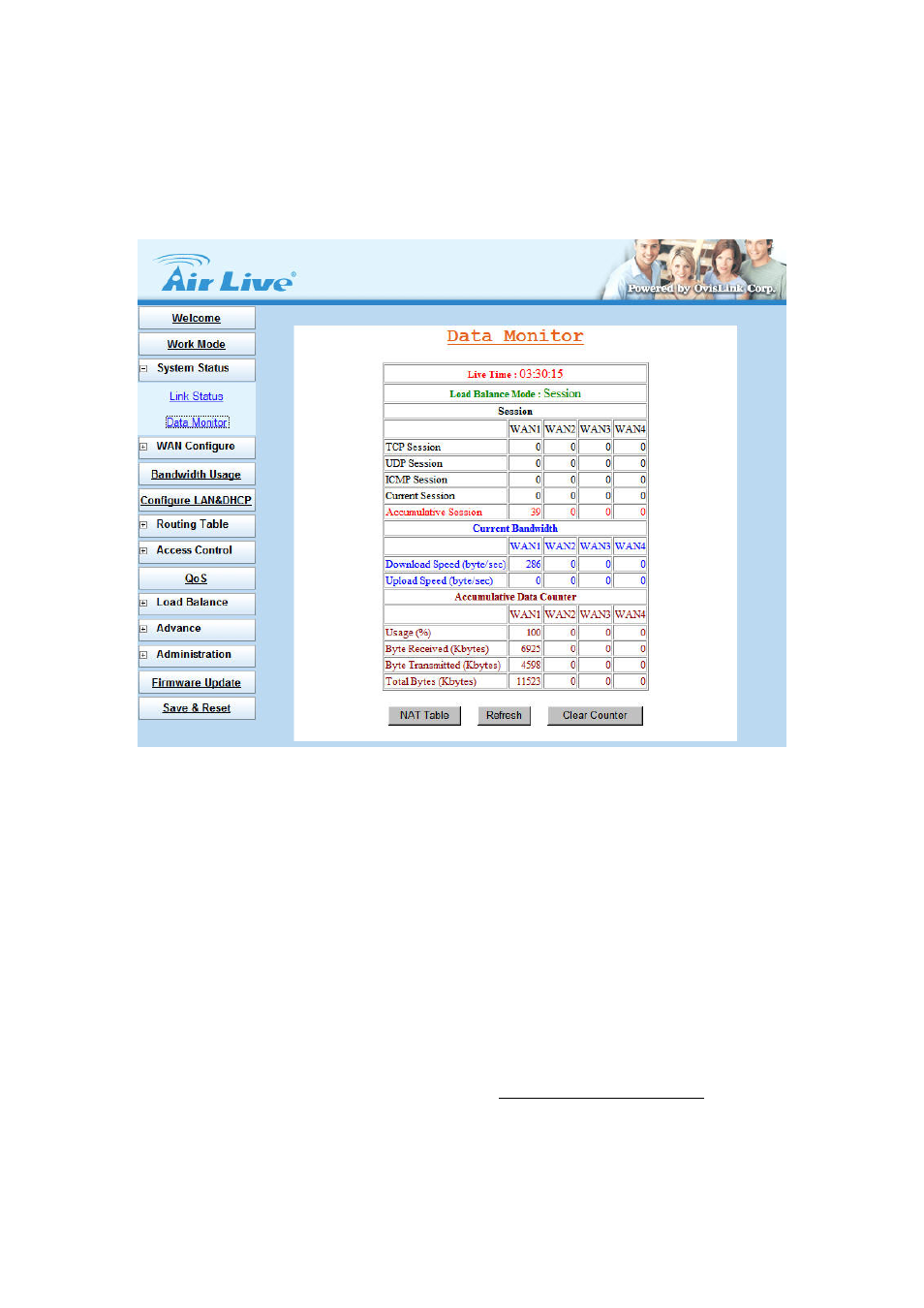

Figure 3-5 Data Monitor
„ Current Session:
‹ TCP Session:
‹ UDP Session:
‹ ICMP Session:
‹ Total Session:
„ Current Bandwidth:
‹ Download Speed:
‹ Upload Speed
„ Accumulative Data Counter:
‹ Usage (%): For example, WAN1 usage% = WAN1 total packets %
(WAN1+WAN2) total packets
‹ Byte Received
‹ Byte Transmitted
14
‹ Total Bytes: Total packets transfer by each WAN port
