3.11 Advance
3.11.1 Remote Configure
The AirLive IGR-1500 can be managed from any PC from Internet. If enable “Remote Configure” function,
remote user can access the Web-based from router’s WAN interface via Internet; If “Remote Configure” does
not enable, the access is only available to PCs from LAN. The accessed port number is changeable.
(Figure 3-34)
„ Assigning Remote IP: Specific dedicated PC can access IGR-1500 remotely.
‹ Leaving these fields blank will allow access by all PCs
‹ If enter specific IP address, only this address PC can access device remotely.
‹ The address must be public IP addresses.
Example: If the local user:
Enable the remote configure function
Remote port is 80 (default is 80, can be different port number)
Remote IP is blank.
ROUTER WAN port IP is 110.111.112.1
When the user of remote side wants to access IGR-1500 web configure, the remote user only needs to enter
http:// 110.111.112.1

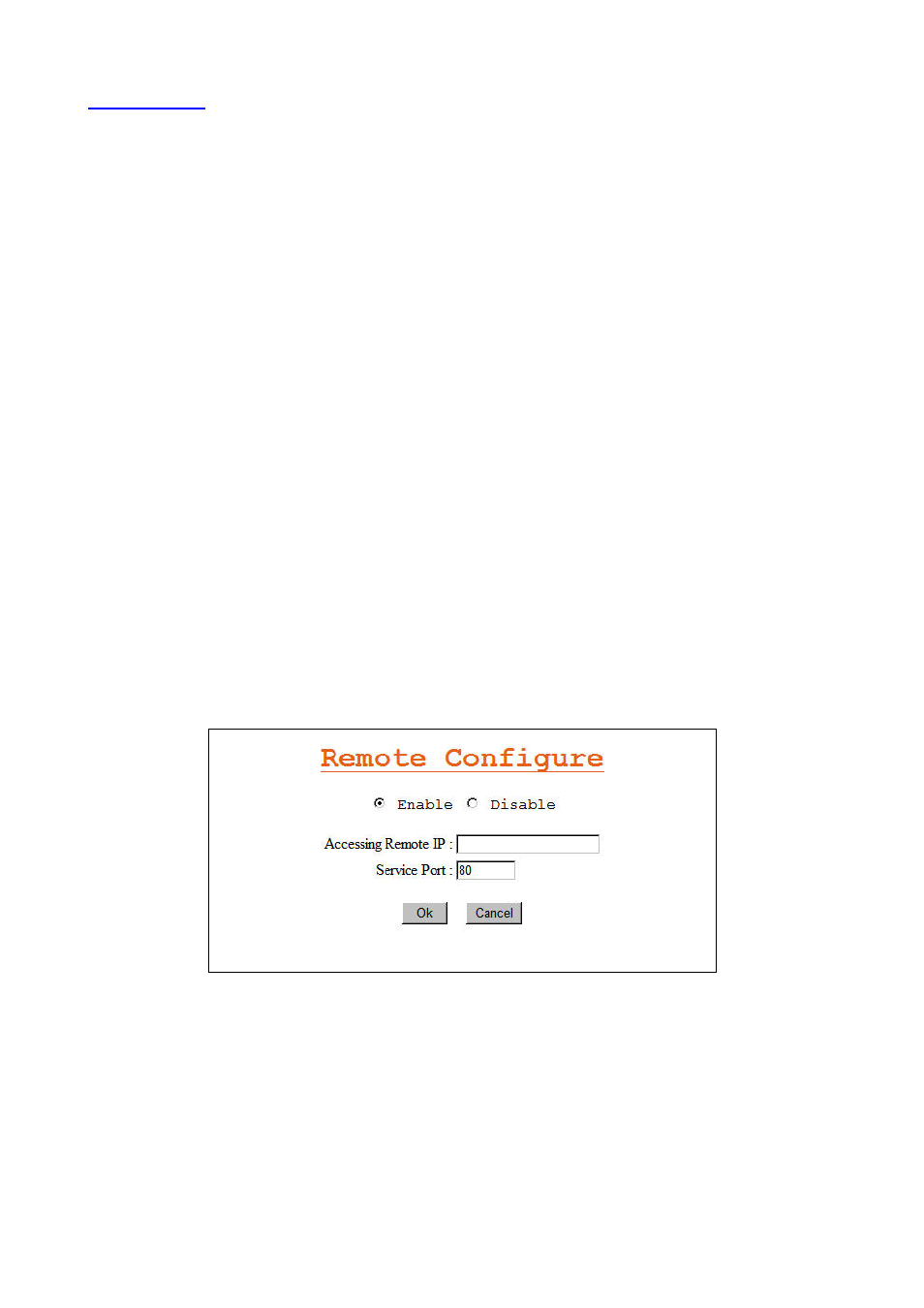

Figure 3-34 Remote Configure
