4. Web Management in Device Server
AirLive DS-100 v2 User’s Manual
22
(3) Plan 2:
Step 7. User your Ticket to Access Internet.
Connect a client device (e.g. Notebook) with wireless interface to scan the configured
ESSID of WIAS-3200N v2 (e.g. Air@Live0) and get associated with this ESSID.
The client device will obtain an IP address automatically via DHCP from WIAS-3200N v2.
Open a web browser on a client device, access any URL, and then the Domain1 User
Login Page
will appear.

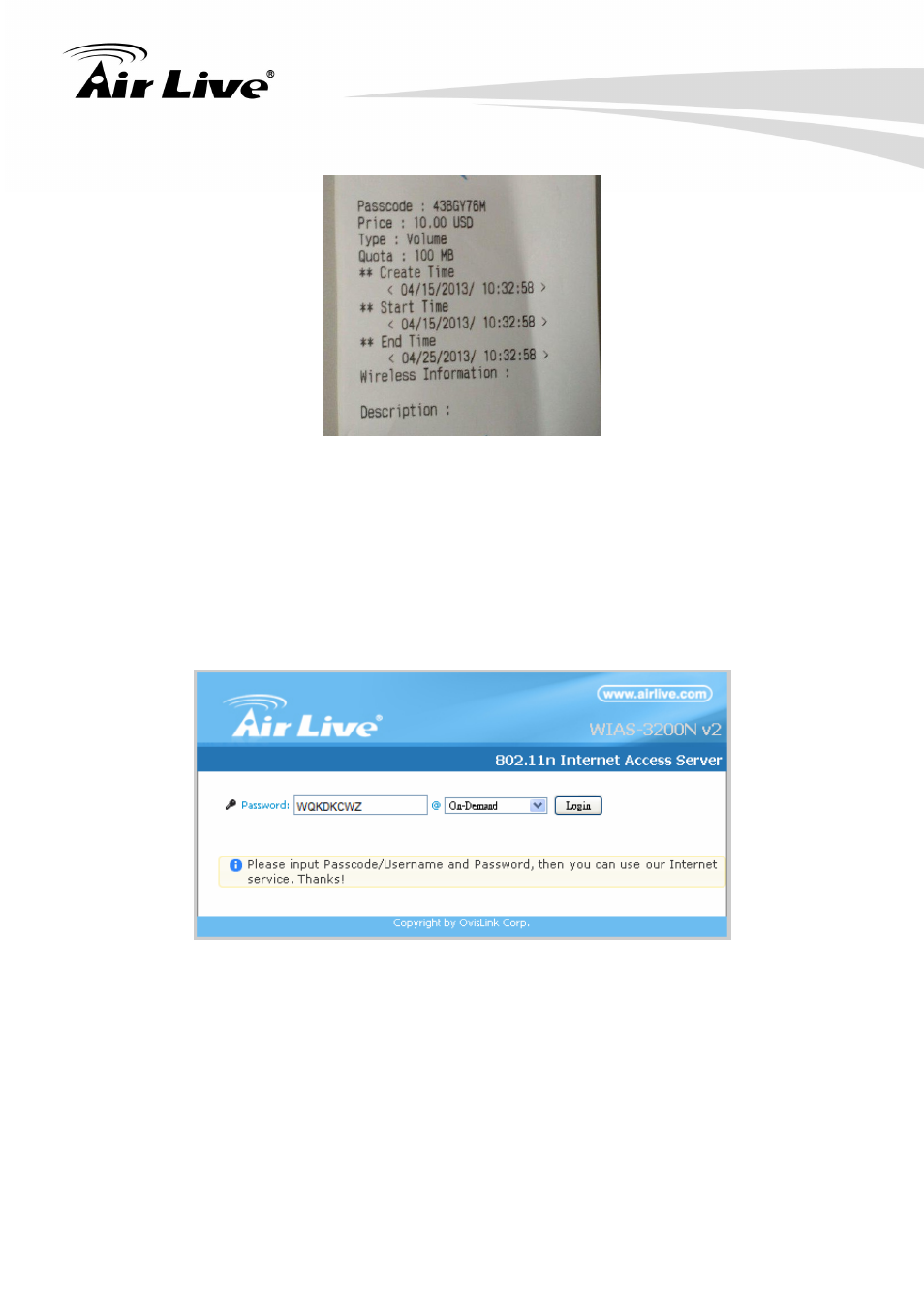

Enter the Passcode of a printer ticket previously generated via DS-100 v2 Thermal
Printer
. Then, click Login button. Below depicts an example for login with Passcode.
*Congratulation!
The success page as below will appear after a client has successfully logged into AC920X
and has been authenticated by the system. Now, you are connected the network and
Internet!
