AirLive BU-3026-IVS - Manual (Page 42)

6. Configuration
AirLive BU-3026/BU-3026-IVS User’s Manual 38

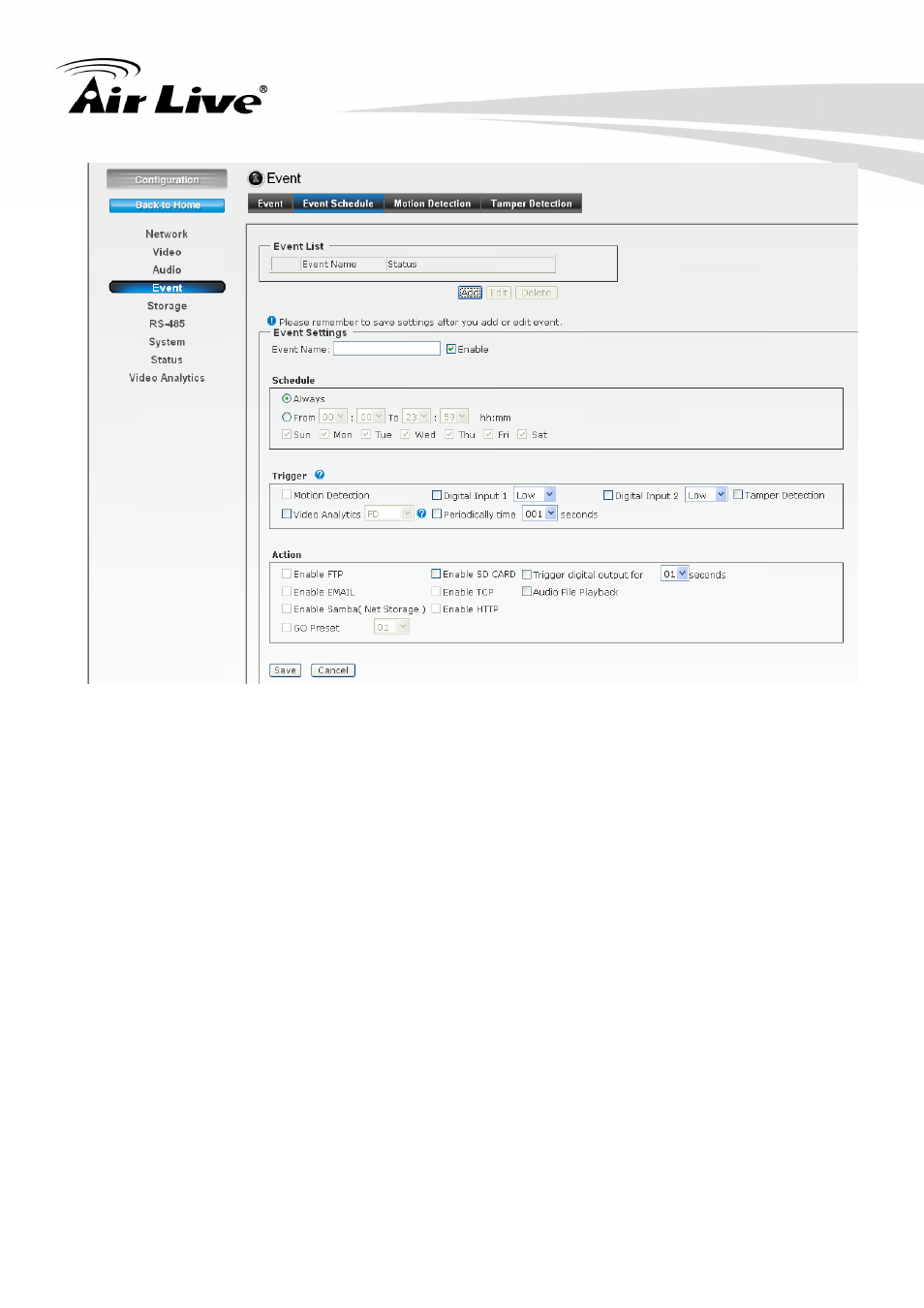

z Follow the steps below to set up the Event Schedule for the camera:
1. Select “Enable” and enter the Event Name.
2. Schedule: Select to always trigger the event or on specific time period and date.
3. Select the Trigger by: Motion Detection / Digital Input 1 / Digital Input 2 /
Tamper Detection / Video Analytics / Periodically time.
4. Action: Select the trigger method.
- Enable FTP: The camera will upload the attachment to FTP when triggered.
- Enable EMAIL: The camera will send the attachment to the assigned receiver when
triggered.
- Enable Samba: The camera will transfer the attachment to the network storage
when triggered.
- Enable TCP: The camera will send instant message when triggered.
- Enable SD CARD: Image will be saved into local SD Card when triggered.
- Enable HTTP: Camera will send the attachment to HTTP server.
