4.2 – Installation on the vehicle

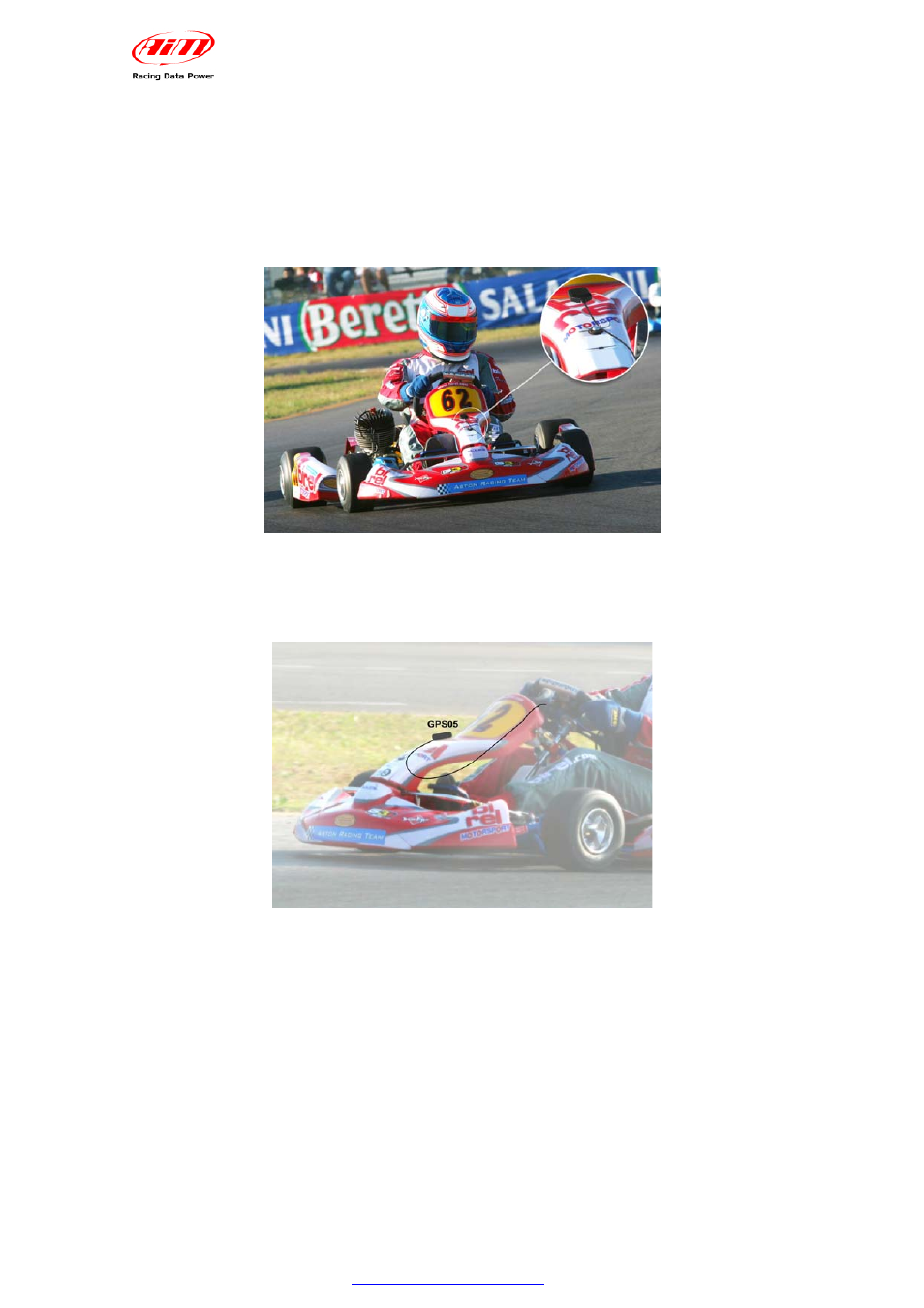

For GPS05 Module to work properly, pay attention while installing it on the vehicle.
The GPS antenna has to be parallel to the ground to have a wider angle of view to
the sky and to receive the maximum number of satellites correctly connected to the
system: we would suggest to install it on the front number plate (see the photo below).
The number plate is made in plastic and the magnet cannot keep the module steady.
For the optimum installation we would suggest to use a strip of Dual Lock – Velcro ®.
The GPS05 Module cable should pass on the kart front fairing as shown below.
2 4
4.3 – Configuration Wizard
No system configuration is needed. The system self-configures at start up.
It is suggested to switch on the system a few minutes before entering the track.
