1.3 – MXL Pro05 kit, optional and part numbers

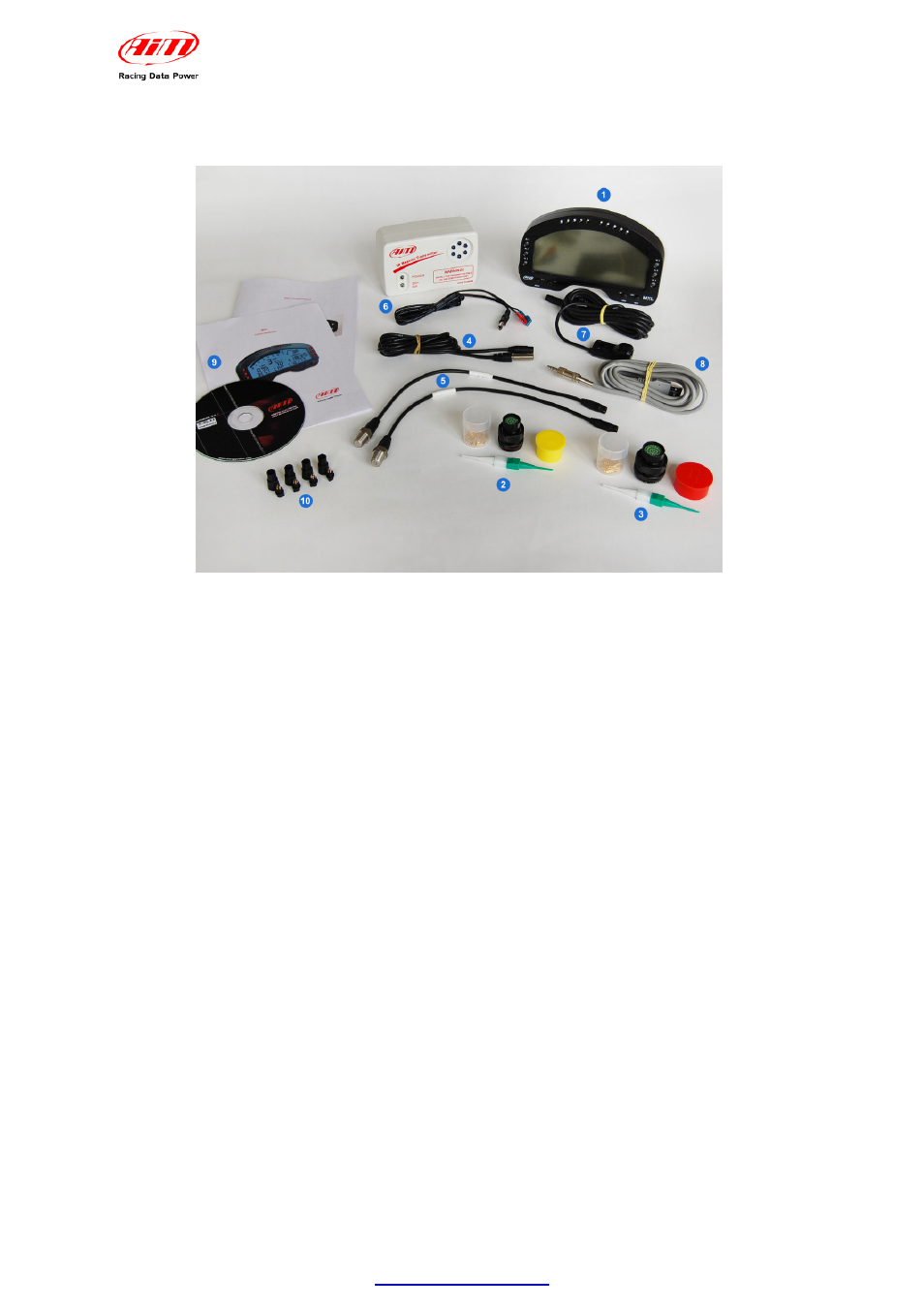

MXL Pro05 standard kit: X15MXLP000000
• MXL Pro05 (1);
• one 22 pins not cabled Deutsch type connector (2);
• one 37 pins not cabled Deutsch type connector (3);
• 1 speed sensor with cable (4) + 4 pins Binder 712 female connector (10) to be
chosen among:
o car speed sensor;
o bike speed sensor (in the figure here above);
o Contrinex speed sensor;
• 2 temperature sensors + cable;
• 1 RPM sensor with cable (5) to be chosen among:
o M5 thermo resistor + 4 pins Binder 712 female connector (10);
o M10 thermo resistor + 4 pins Binder 712 female connector (10);
o 1/8 NPT thermo resistor (in the figure here above) + 4 pins Binder
712 female connector;
o exhaust gas thermocouple + mignon female connector
o M10 water temperature thermocouple + mignon female connector;
• infrared lap transmitter with external power cable (6);
• infrared lap receiver with 90 cm cable (7);
• USB cable for PC interface and data download (8);
• Race Studio 2 software CD MXL user manual and MXL Pro05 pinout (9);
MXL Pro05 Optional:
• Wiring for 22 pins Deutsch type connector: V02554240;
• Wiring for 37 pins Deutsch type connector: V02554200;
• Expansions (see related paragraph).
