2 – the infrared transmitter – AiM MXL User Manual
Page 16
MXL
User manual
Release 1.24
4 4
2.6.2 – The infrared transmitter
The infrared receiver has to “see” the transmitter installed on the side of the track.

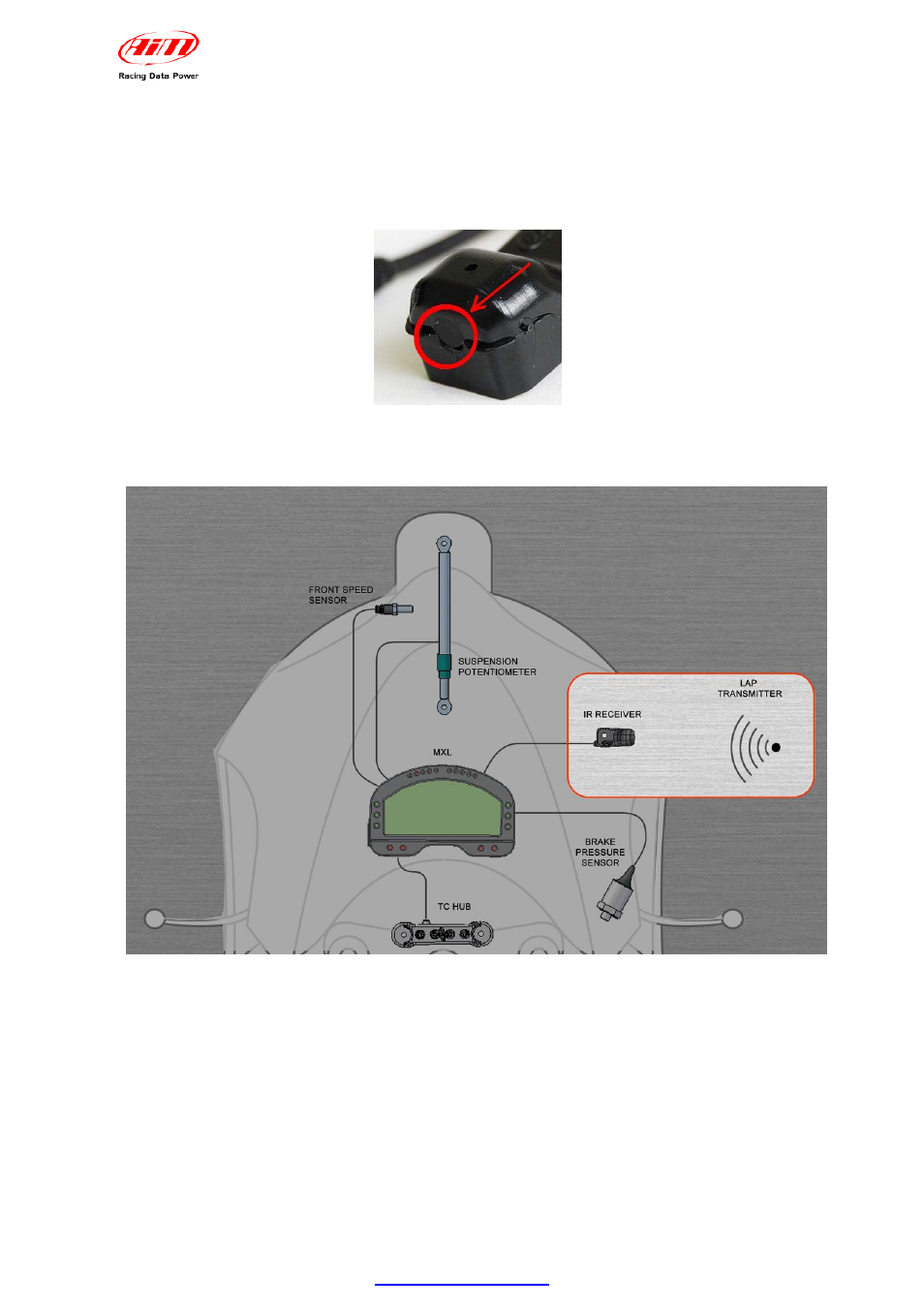

Install it with the receiver eye looking at the transmitter. The figure here below shows
the receiver eye
Be sure that the receiver has a continuous line with the transmitter on the right side
of the vehicle as shown on the image here below.
www.aim-sportline.com
15
