2.6 – How to install and power transmitter and receiver
AIM provides a range of devices for lap time detection. MXL works with infrared
transmitter and a receiver only.
3 4
2.6.1 – Infrared transmitters

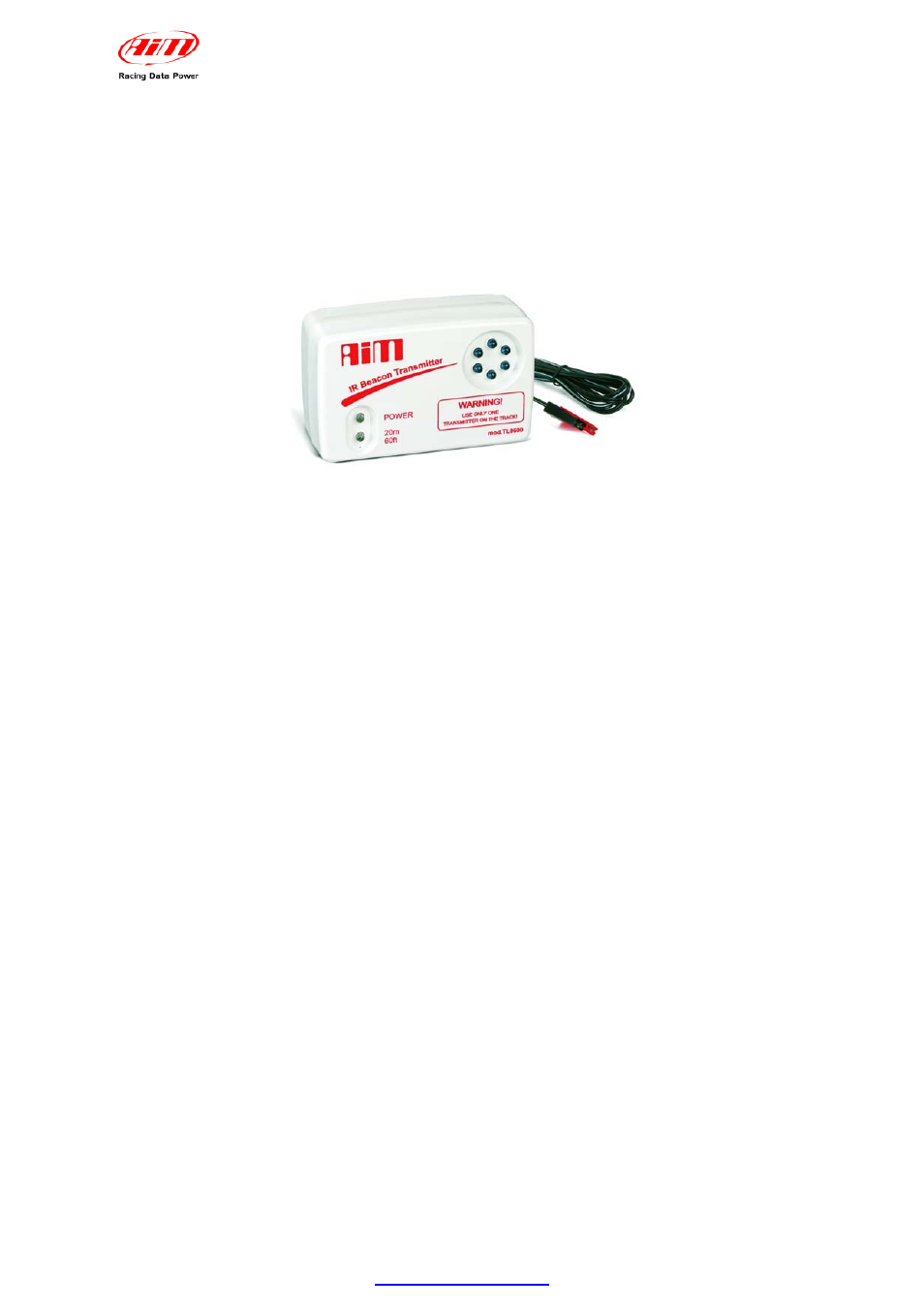

AIM lap transmitter is show here below.
The transmitter can be internally or externally powered:
• internally: with 8 AA batteries (placed in the transmitter case); when battery
charge status is low, Power led starts blinking each second (1 Hz);
• externally: with an external 12V power cable; when battery charge status is
low, Power led starts blinking each second.
The transmitter has two working mode:
• Low power mode: for tracks less than 10 m (30 ft) wide;
• High power mode: for tracks more than 10 m (30 ft) wide; in this second case
12V external power is required and both led switches on when the transmitter
is switched on.
