Data sheet, Ace backstage co., inc, Stage pocket systems – ACE BACKSTAGE Super Stage Pocket User Manual

Page 3

ACE BACK

STAGE CO., IN

CLEAR C

DMX12

PUSH

3 of 6

#PNL-120 SERIES PANELS: Any 2 Panels in this series or

#PNL-120

#PNL-124

#PNL-126

#PNL-128

#PNL-1210

#PNL-1212

#PSW-100 SERIES PANELS: Any 4 Panels in this series or

#PSW-100

#PSW-102

#PSW-103

#PSW-104

#PSW-105

#PSW-106

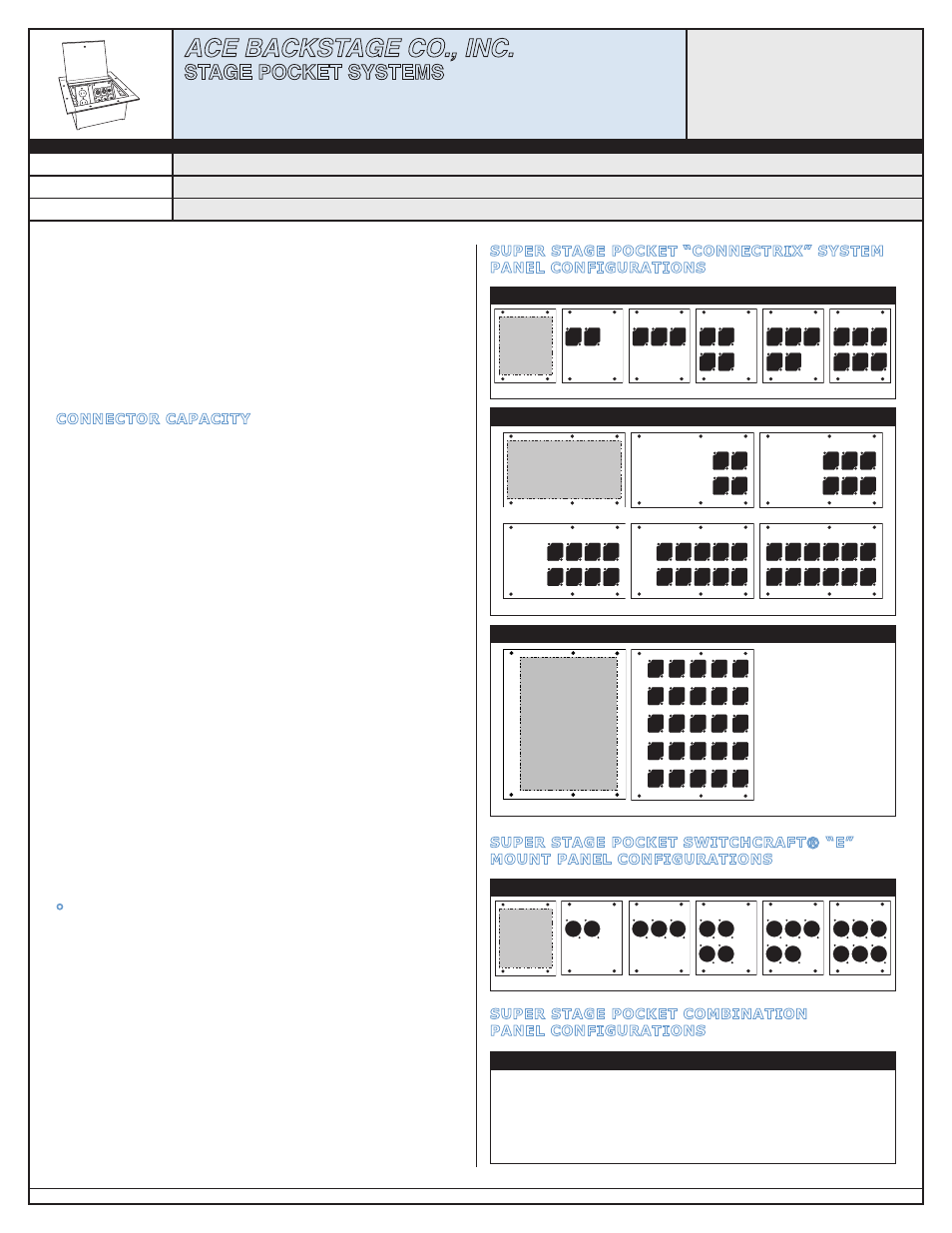

SUPER STAGE POCKET “CONNECTRIX” SYSTEM

PANEL CONFIGURATIONS

#PNL-100 SERIES PANELS: Any 4 Panels in this series or

#PNL-100

#PNL-102

#PNL-103

#PNL-104

#PNL-105

#PNL-106

SUPER STAGE POCKET SWITCHCRAFT® “E”

MOUNT PANEL CONFIGURATIONS

SUPER STAGE POCKET COMBINATION

PANEL CONFIGURATIONS

Various multi-panel combinations from panels listed below

Various combination of Panel Series

#PNL-100, #PNL-120, #PNL-140, and #PSW-100

ACE BACKSTAGE CO., INC.

STAGE POCKET SYSTEMS

24846 Avenue Rockefeller | Suite 200 | Valencia, CA 91355

Tel: 661-295-5760 | Fax: 661-295-1122

Email: [email protected] | Web: www.acebackstage.com

DATA SHEET

Stage Pocket

Data Spec Sheet

Revision: 1A.132-232

Model Numbers:

#132-xxyy, #232-xxyy (xx= Lid Type and yy= Finish Type)

Model Name:

Super Stage Pocket - Super Capacity Horizontal Panel Pocket

Model Description: Pocket with brushed metal or powder coat finish, choice of lid, with optional panel(s) and connectors

#PNL-140 SERIES PANELS: Any 1 Panel in this series or

#PNL-140

#PNL-1425

ACE Super Stage Pocket Material:

• CRS Steel and/or Solid Half Hard Brass

ACE Super Stage Pocket Panel Capacity:

• (4) #PNL-100 Series “Connectrix” Panels OR

• (4) #PSW-100 Series Switchcraft® Panels OR

• (2) #PNL-120 Series “Connectrix” Panels OR

• (1) #PNL-140 Series “Connectrix” Panel OR

• Various multi panel combinations from panels listed above

CONNECTOR CAPACITY

ACE Super Stage Pockets Connector Capacity:

• 25 “Connectrix”, Neutrik®, or Switchcraft® Connectors

“CONNECTRIX” Connectors combine Neutrik® “D”

and Switchcraft® “E” Mounting Hole Patterns for

Greater Flexibility

The “CONNECTRIX” system connectors may be used in

any of the “CONNECTRIX” system panels utilizing our

“CONNECTRIX” cutout which incorporates the popular

mounting pattern of the Neutrik “D” and Switchcraft “E”

series mounting patterns. Connectors using the generous

rectangular “CONNECTRIX” cutout will add to a growing ar-

ray of adapter-mounted standard connectors. The adapter

mount is plastic and provides ground isolation between the

panel and connector.

When ordering, please specify connector model number,

model name, and type of connector as well as panel model

number (#PNL-100 Series, #PNL-120 Series, or #PNL-140

Series) the connectors will be loaded into. NOTE: Specific

High Density (HD) and Sub-D pattern connectors will re-

quire either 2 or 3 “CONNECTRIX” Horizontal Spaces or 2

or 3 “CONNECTRIX” Vertical Spaces, depending on connec-

tors selected. Connectors may be loaded into panels with

nutcerts and nut/bolts or black aluminum pop rivets.

ACE Super Stage Pockets Connector Types:

• “Connectrix” Connectors (fits Neutrik®/Switchcraft®)

• Switchcraft® Connectors

• Custom Panel Connectors (custom panel cutout required)
