#PNL-120 SERIES PANELS: Any 2 Panels in this series or

#PNL-120

#PNL-124

#PNL-126

#PNL-128

#PNL-1210

#PNL-1212

#PSW-100 SERIES PANELS: Any 4 Panels in this series or

#PSW-100

#PSW-102

#PSW-103

#PSW-104

#PSW-105

#PSW-106

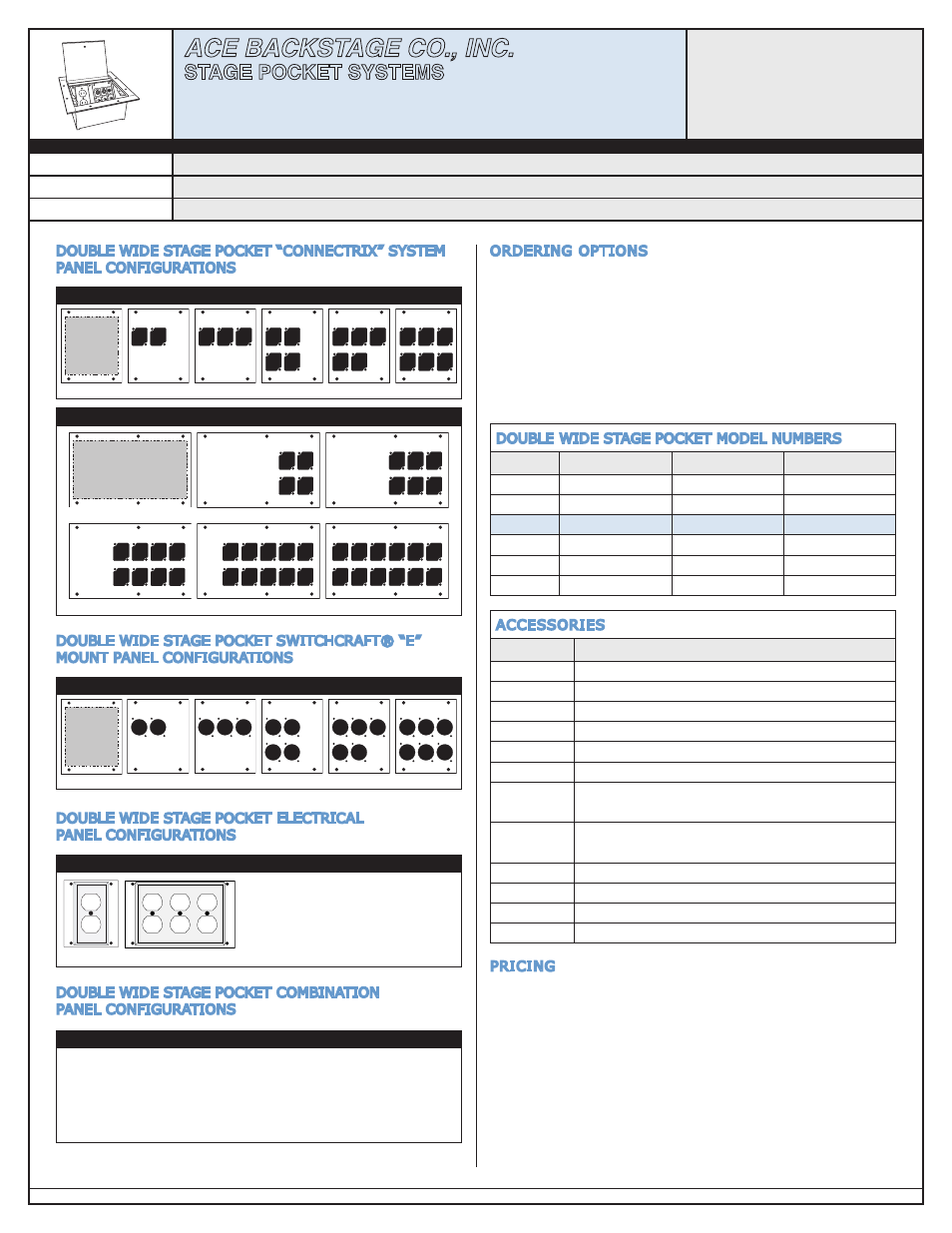

DOUBLE WIDE STAGE POCKET “CONNECTRIX” SYSTEM

PANEL CONFIGURATIONS

#PNL-100 SERIES PANELS: Any 4 Panels in this series or

#PNL-100

#PNL-102

#PNL-103

#PNL-104

#PNL-105

#PNL-106

DOUBLE WIDE STAGE POCKET MODEL NUMBERS

Model # Pocket Size

Lid Type

Finish

#124CLBK 124 = Double Wide Pocket CL = Carpet Lid

BK = Black

#124CLCV 124 = Double Wide Pocket CL = Carpet Lid

CV = Copper Vein

#124SLBK 124 = Double Wide Pocket SL = Standard Lid BK = Black

#124SLCV 124 = Double Wide Pocket SL = Standard Lid CV = Copper Vein

#224CLBR 224 = Double Wide Pocket CL = Carpet Lid

BR = Brass

#224SLBR 224 = Double Wide Pocket SL = Standard Lid BR = Brass

ORDERING OPTIONS

When ordering Stage Pockets please specifiy:

• 1) Stage Pocket Model Number

• 2) Stage Pocket Model Name

• 3) Stage Pocket Finish Type (Lid & Mounting Flange)

• 4) Stage Pocket Lid Type

• 5) Optional Stage Pocket Panel Model Numbers

• 6) Optional Connectors to be loaded into Panels

• 7) Location of Connectors to be loaded into Panels

• 8) Type of Connector Mounts

ACCESSORIES

Model #

Description

#104BBX

Double Wide Pocket Back Box

#104BBXW

Double Wide Pocket Back Box, Polyurethane Encapsulated

#104DDBBX

Double Wide Pocket Back Box, Double Deep

#104DDBBXW

Double Wide Pocket Back Box, Double Deep, Poly. Encapsulated

#24BAC

Double Wide Pocket Back Access Cover

#A/C ISO KIT

Double Wide Pocket A.C. Electric Isolation Kit

#FP3E

Double Wide Pocket Triple Gang Duplex Switch Box with Steel

Mounting Panel and Aluminum Narrow Triple Duplex Cover

#PE

Double Wide Pocket Single Gang Duplex Switch Box with Steel

Mounting Panel and Steel Narrow Duplex Cover

#PNL-100

PNL-100 Series Panels mount up to 6 “Connectrix” connectors

#PNL-120

PNL-120 Series Panels mount up to 12 “Connectrix” connectors

#PSW-100

PSW-100 Series Panels mount up to 6 Switchcraft® connectors

#CNCTRS

“Connectrix”, Switchcraft®, and Custom Panel Connectors

#PE SERIES PANELS: 4 #PE Panels or 2 #FP3E Panels or

#PE

#FP3E

DOUBLE WIDE STAGE POCKET SWITCHCRAFT® “E”

MOUNT PANEL CONFIGURATIONS

DOUBLE WIDE STAGE POCKET ELECTRICAL

PANEL CONFIGURATIONS

DOUBLE WIDE STAGE POCKET COMBINATION

PANEL CONFIGURATIONS

Panel Combinations of the Following Panel Series

Any combination of four (4) Panel Series

#PNL-100, #PE, #PSW-100

Any combination of two (2) Panel Series

#PNL-120 and #FP3E

PRICING

ACE BACKSTAGE CO., INC.’S Retail Price Guide may be

downloaded as a single Adobe PDF file (.pdf), Microsoft

Excel Spreadsheet file (.xls), Image File (.jpg) or Text file

(.txt). Ace’s Retail Price Guide may only be downloaded and

viewed by qualified contractors and dealers.

Note: Prices are U.S. suggested and provided as a guideline

only. Actual prices may vary from dealer to dealer and are

subject to change without notice. If you are a contractor or

dealer and would like to receive Ace Backstage Co., Inc.’s

Confidential Dealer Price Guide call 661-295-5760 so that

we may begin the qualification process.

ACE BACKSTAGE CO., INC.

STAGE POCKET SYSTEMS

24846 Avenue Rockefeller | Suite 200 | Valencia, CA 91355

Tel: 661-295-5760 | Fax: 661-295-1122

Email: [email protected] | Web: www.acebackstage.com

DATA SHEET

Stage Pocket

Data Spec Sheet

Revision: 1B.124-224

Model Numbers:

#124-xxyy, #224-xxyy (xx= Lid Type and yy= Finish Type)

Model Name:

Double Wide Stage Pocket - Extra Large Capacity Standard general use Vertical Slant Panel Pocket

Model Description: Pocket with brushed metal or powder coat finish, choice of lid, with optional panel(s) and connectors

*NOTE: Connector capacity limitations apply depending on connectors and panels used.
